Quectel LPWA Series User Manual

LPWA Module Series
BG950A-GL&BG951A-GL_Hardware_Design
37
/ 84

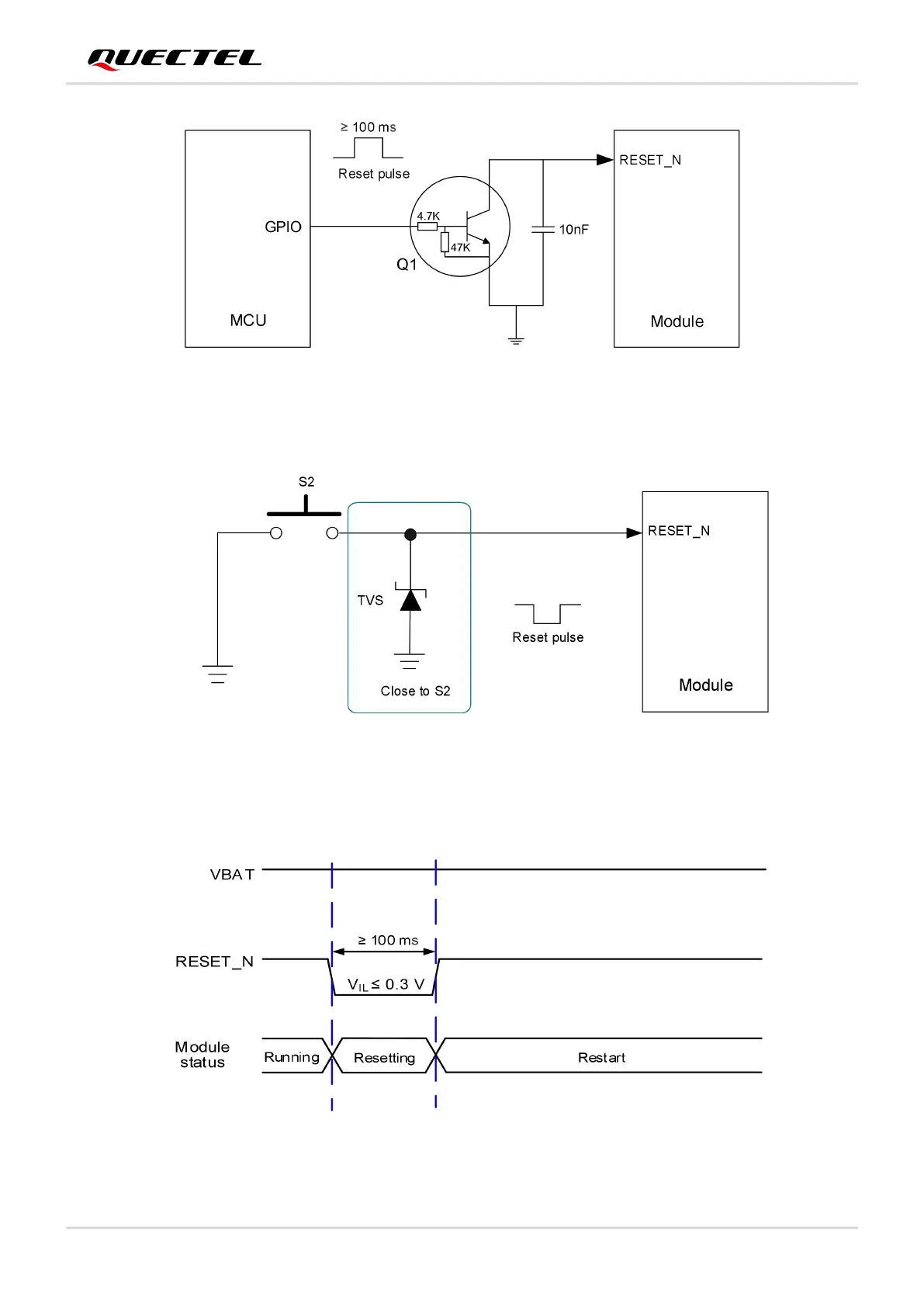

Figure 12: Reference Circuit of RESET_N with Driving Circuit
Figure 13: Reference Circuit of RESET_N with a Button
The reset timing is illustrated in the following figure.
Figure 14: Reset Timing
