LPWA Module Series
BG950A-GL&BG951A-GL_Hardware_Design
64
/ 84

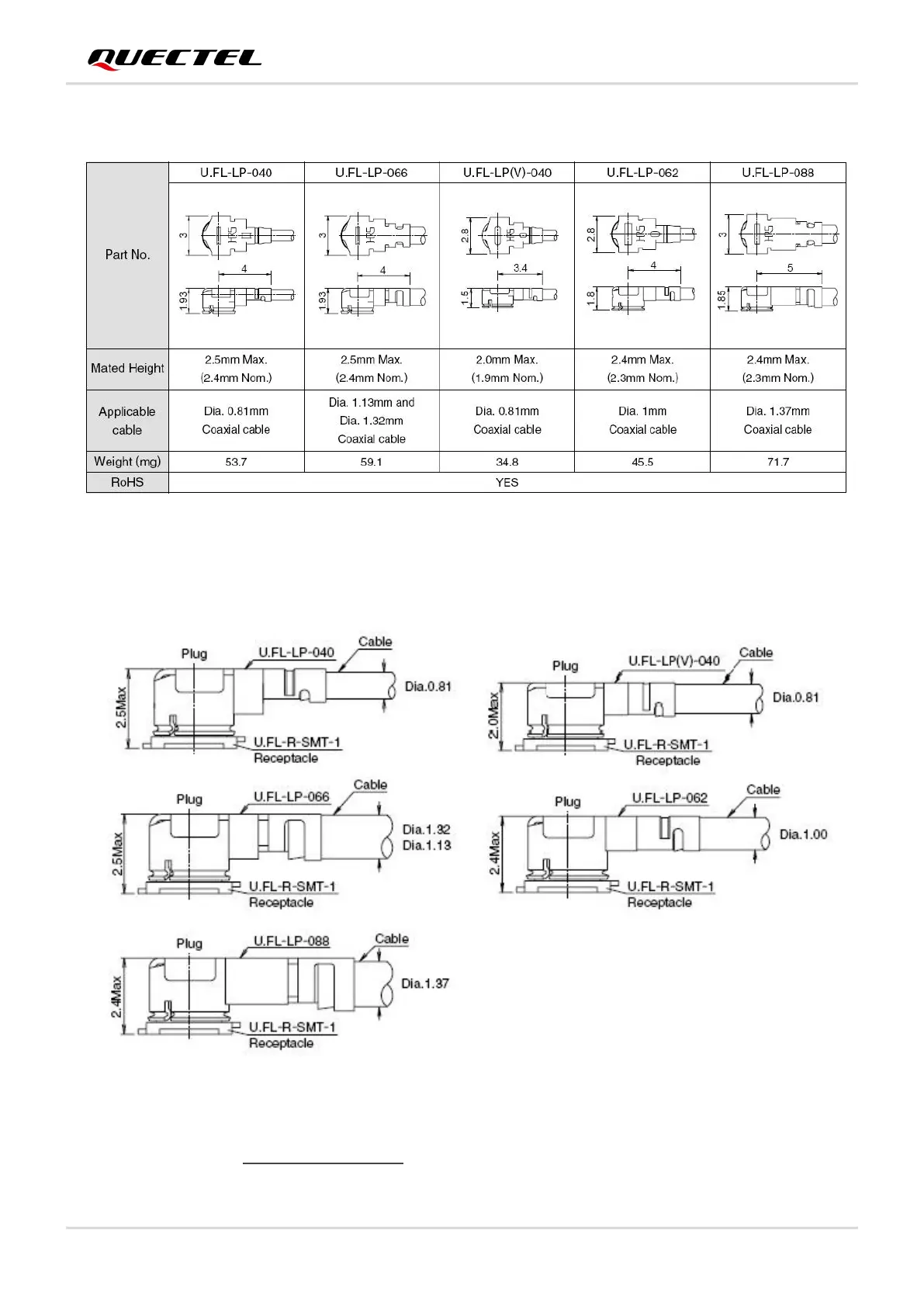

U.FL-LP serial connectors listed in the following figure can be used to match the U.FL-R-SMT.
Figure 32: Mechanicals of U.FL-LP Connectors
The following figure describes the space factor of mated connector.
Figure 33: Space Factor of Mated Connector (Unit: mm)
For more details, visit http://www.hirose.com.
