Smart Module Series
SG368Z_Series_Hardware_Design 100 / 113
7.2. Recommended Footprint

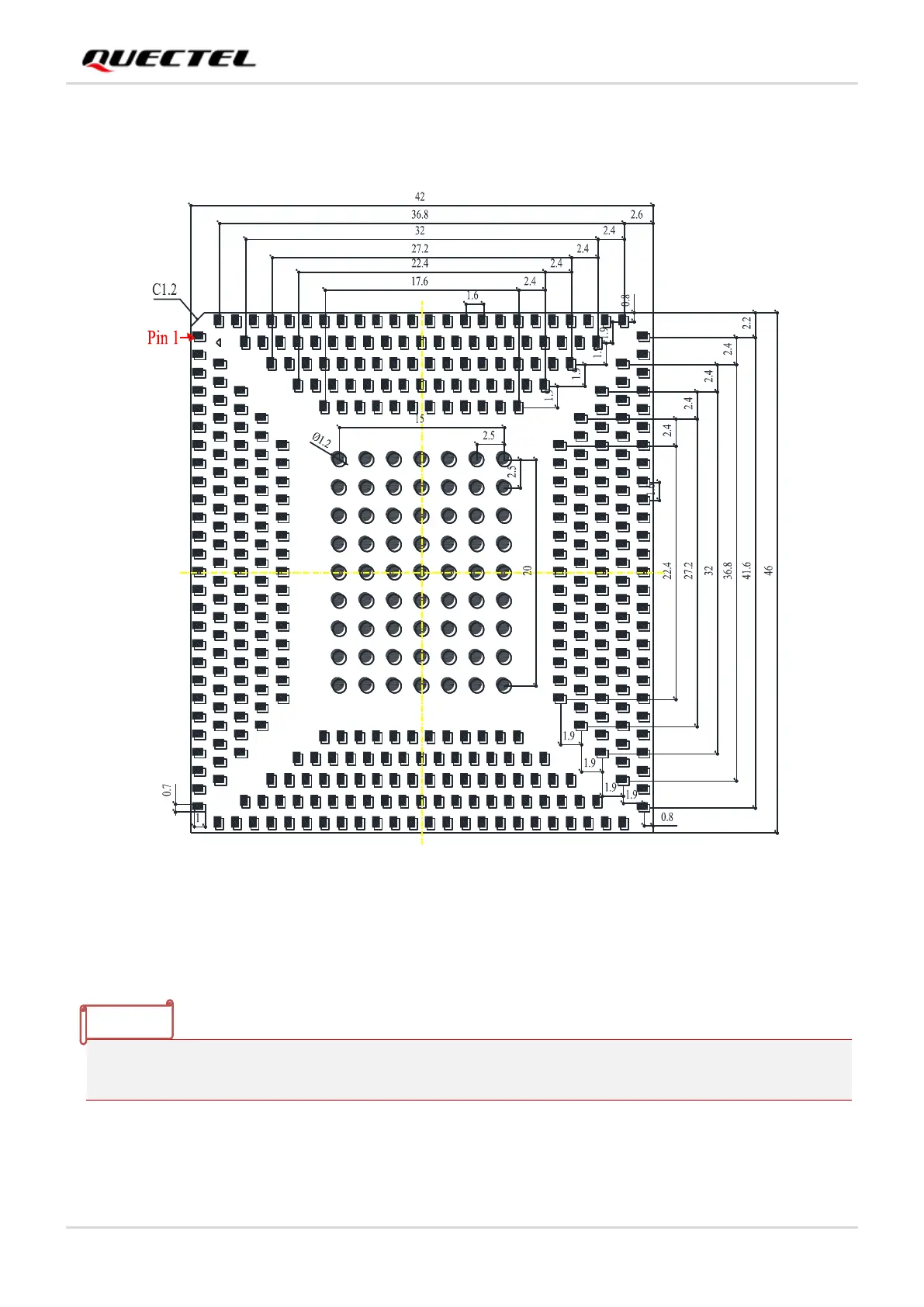

Figure 40: Recommended Footprint
.
Keep at least 3 mm between the module and other components on the motherboard to improve
soldering quality and maintenance convenience.
