10 – 02|2016 – Subject to change. Sportrex2 – Q6000A

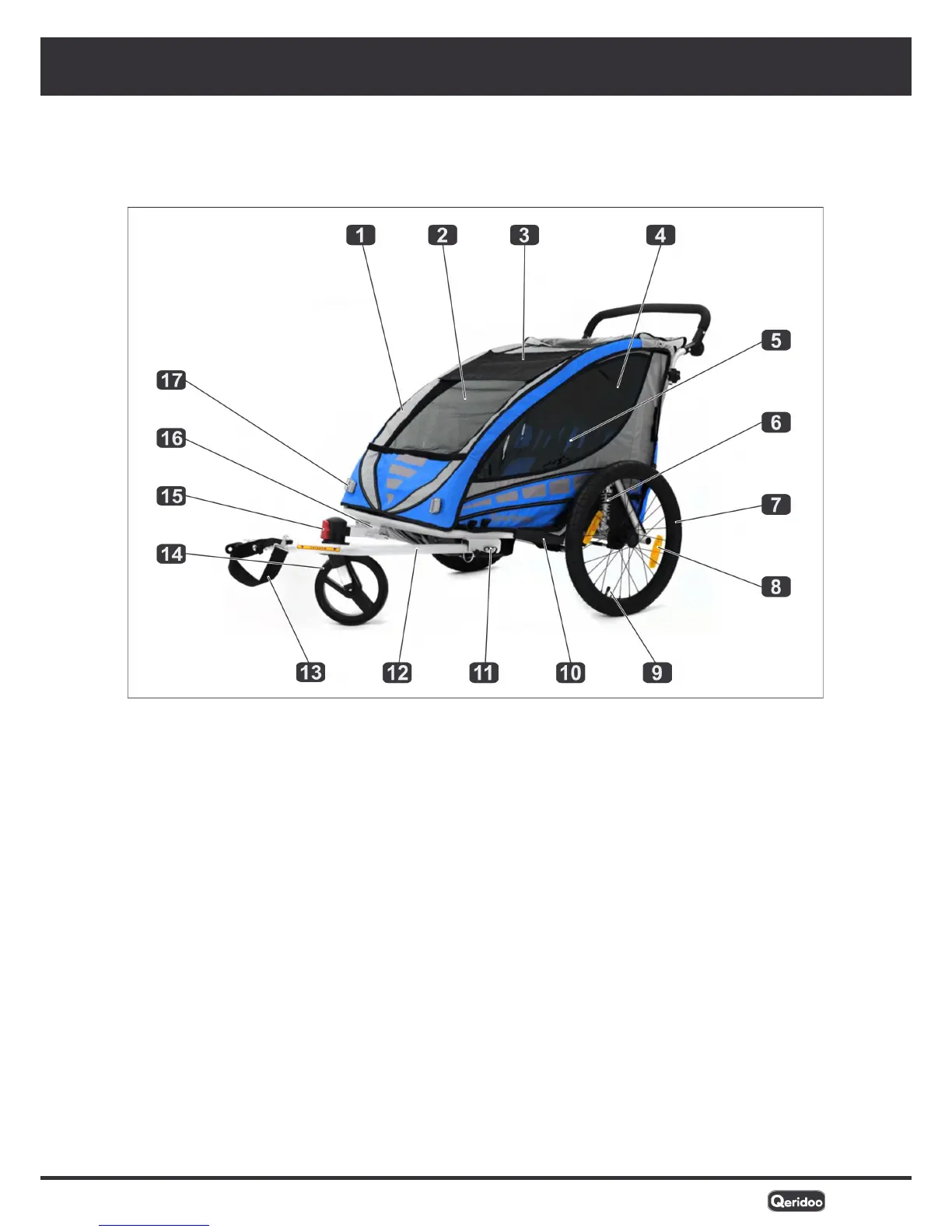

Components and control elements
Side view
1 Cabin (frame made from aluminium tubes
with weatherproof fabric cover)
2 2-in-1 canopy to protect against insects
and rain, can be rolled up
3 Sun visor, removable
4 Side window
5 Seat with 5-point safety harnesses and
head rests
6 Axle suspension
7 20" wheel with push-in axle
8 Spoke reflector, orange
9 Air valve (Schrader valve)
10 Wheel guard for deflecting obstacles
11 Tow bar holder on the cabin frame with
cotter pin fastening
12 Tow bar for Trailer mode
13 Coupler pocket with cotter pin fastening
and impact damper, also retaining strap
for securing the tow bar on the bicycle
frame
14 Buggy wheel for three-wheel use in Buggy
or Walker mode
15 Mode switch:
Buggy mode: Wheel turnable
Walker mode: Wheel running straight
Trailer mode: Buggy wheel removed
16 Wheel mount on the cabin frame
17 Front reflector, white
Product overview
