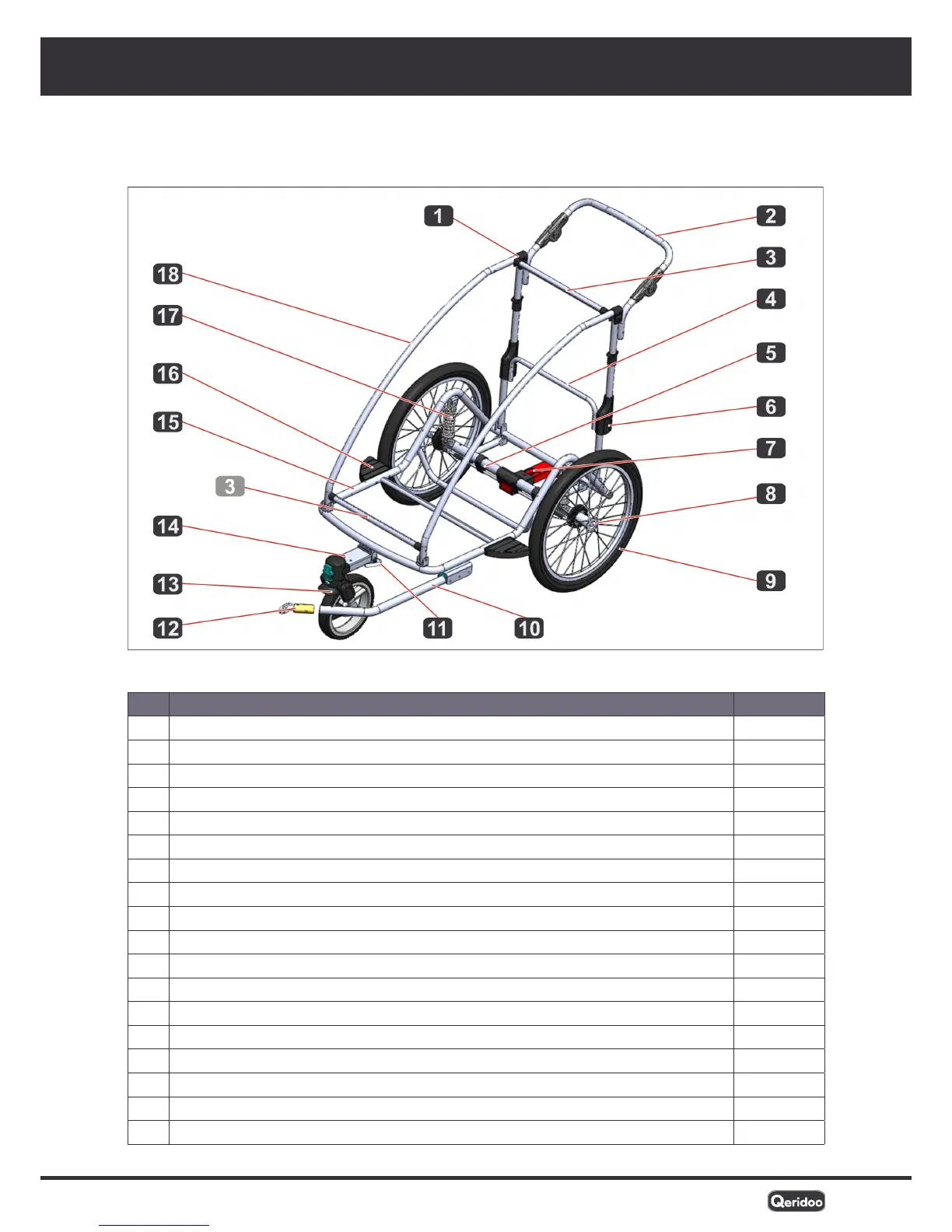

Frame components
Pos. Article Article no.
1 Roof rack hinge / connecting piece DST-30
2 Push handle HDG-600
3 Connecting rod (backrest, side frame) VERS-600
4 Rear frame rod HNT-600
5 Rear axle (incl. parking brake) ACH-600
6 FX folding system rod FXS-30
7 Brake pedal BRP-30
8 Rubber cap DECK-88
9 20" wheel R147
10 Tow bar DIE-60-1
11 Quick-release clamp (for buggy wheel) SCNE-Q2
12 Coupler (complete) 56897-KLL
13 8.5" air wheel (for buggy wheel) BG-589L
14 Wheel suspension (for buggy wheel) BGH-Q2
15 Main frame (lower part) HPT-600
16 Wheel guard (wheel deflector) RADA-Q2
17 Suspension (3.2 mm spring element) FED-QUN
18 Roof rack frame rod DTR-30
