QUEST 506 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
QUESTCLIMATE.COM(877) 420-1330

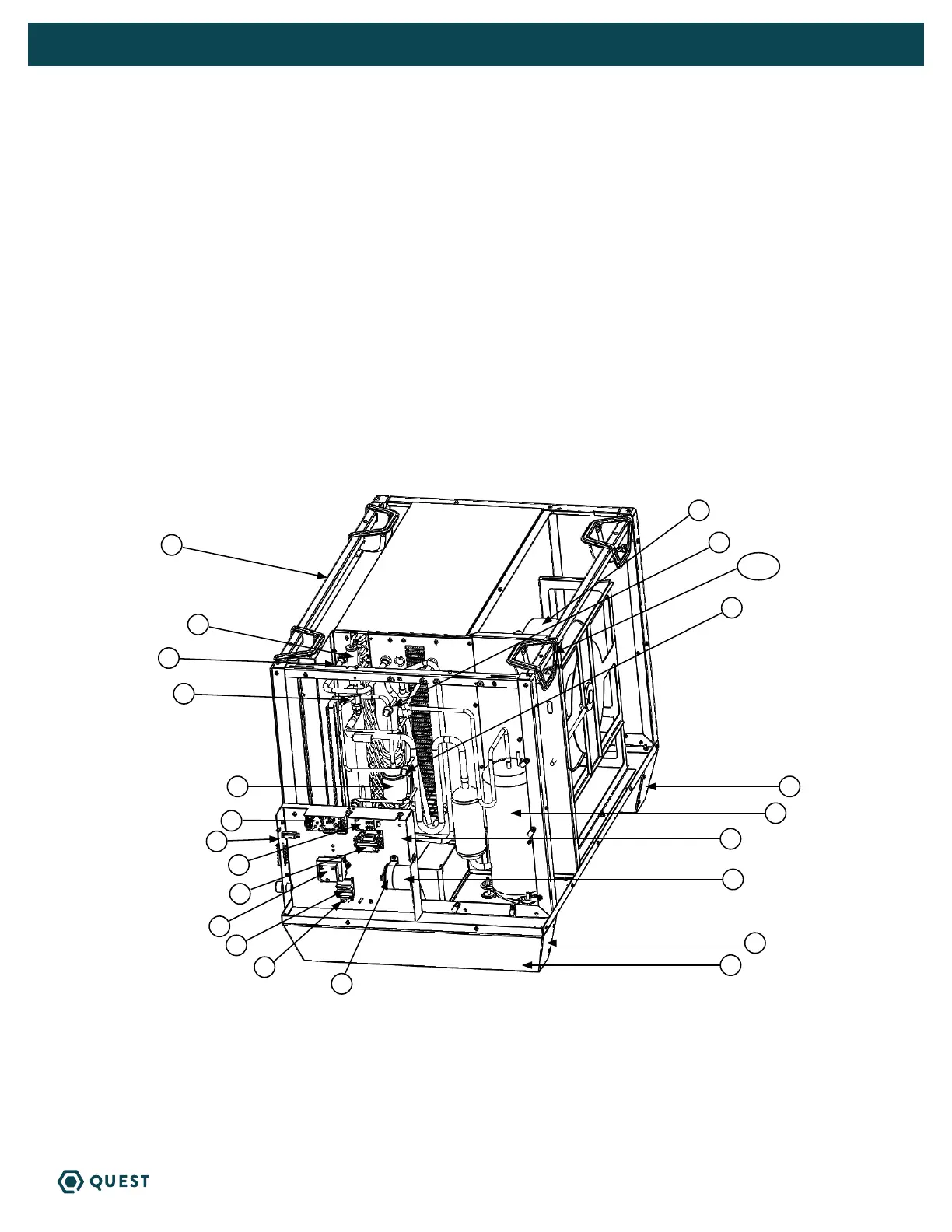

SERVICE PARTS LIST
Item Part No Description
1 4029507 CONTROL,HIGH PRESSURE
2 4029508 CONTROL,LOW PRESSURE
3 4029575 RELAY
4 4031101 CONTACTOR
5 4031406 TRANSFORMER
(4042945) TRANSFORMER (277V)
6 4035949-06 CAPACITOR,COMP.
(4035949-12) CAPACITOR,COMP. (277V)
7 4036164-20 TUBE,CU,CPLRY
8 4036559 CIRCUIT BREAKER
9 4039729 CLAMP,CAPACITOR
10 4037221-06 CAPACITOR
(4042209-04) CAPACITOR (277V)
11 4037699 THERMISTOR
12 4039607 CPRSR
(4042942) CPRSR (277V)
13 4037702 FILTER,DRIER
Item Part No Description
14 4037703-04 COIL,EVAP
15 4037704-02 COIL,CONDENSER
16 4037707 TXV, 3 TON
17 4037708 FAN,MOTORIZED IMPELLER
(4042941) FAN,MOTORIZED IMPELLER (277V)
18 4037728 CORD
(4042899) CORD (277V)
19 4038135 HANDLE,POCKET
20 4038 136 BEZEL,HANDLE
21 4038178 WIRE HARNESS
22 4038079 L UG,GROUND
23 4038219 FOOT,RUBBER,1.25” DIA
24 4038225-01 BRA CKET,FOOT,RIGHT
25 4038226-01 BRA CKET,FOOT LEFT
26 4038 215 BLOCK, WIRING
27 4039691 CONTR OL ASSY
28 4038233 FILTER (QTY 2)
Part No Qty Description
4020175 1 Controller, Humidity
4028531 1 DEH 3000R Control, Remote
4041550 1 Cloud Control
4041560 1 Cloud Control Plus
Part No Qty Description
4032220 1 Kit, Pump
4038642 1 Kit, Intake Duct
4038641 1 Kit, Exhaust Duct
4038644 1 Drain Trap Kit
OPTIONAL PARTS LIST
1
17
2
19, 20
6
23
24
25
10
12
3
13
14
28
15
16
8
27
9
4
5
26
22
