QUEST 506 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
QUESTCLIMATE.COM(877) 420-1330
1. INTENDED APPLICATION FOR QUEST 506
The Quest 506 Dehumidifier is designed to operate in temperatures between 56 F and 95 F.
In order to efficiently control humidity levels, the area in which the dehumidifier is to be operated must
be free of water intrusion or excessive fresh (outside) air infiltration. Before installing the Quest 506
Dehumidifier, water intrusion and air infiltration problems should be addressed or noted in calculations.
2. REGISTRATIONS
The Quest 506 Dehumidifier units conform to unified standards: UL 60335-2-40, CSA 22.2 # 60335-2-
40:2012 Ed. 1+4. Patent: thermastor.com/patents

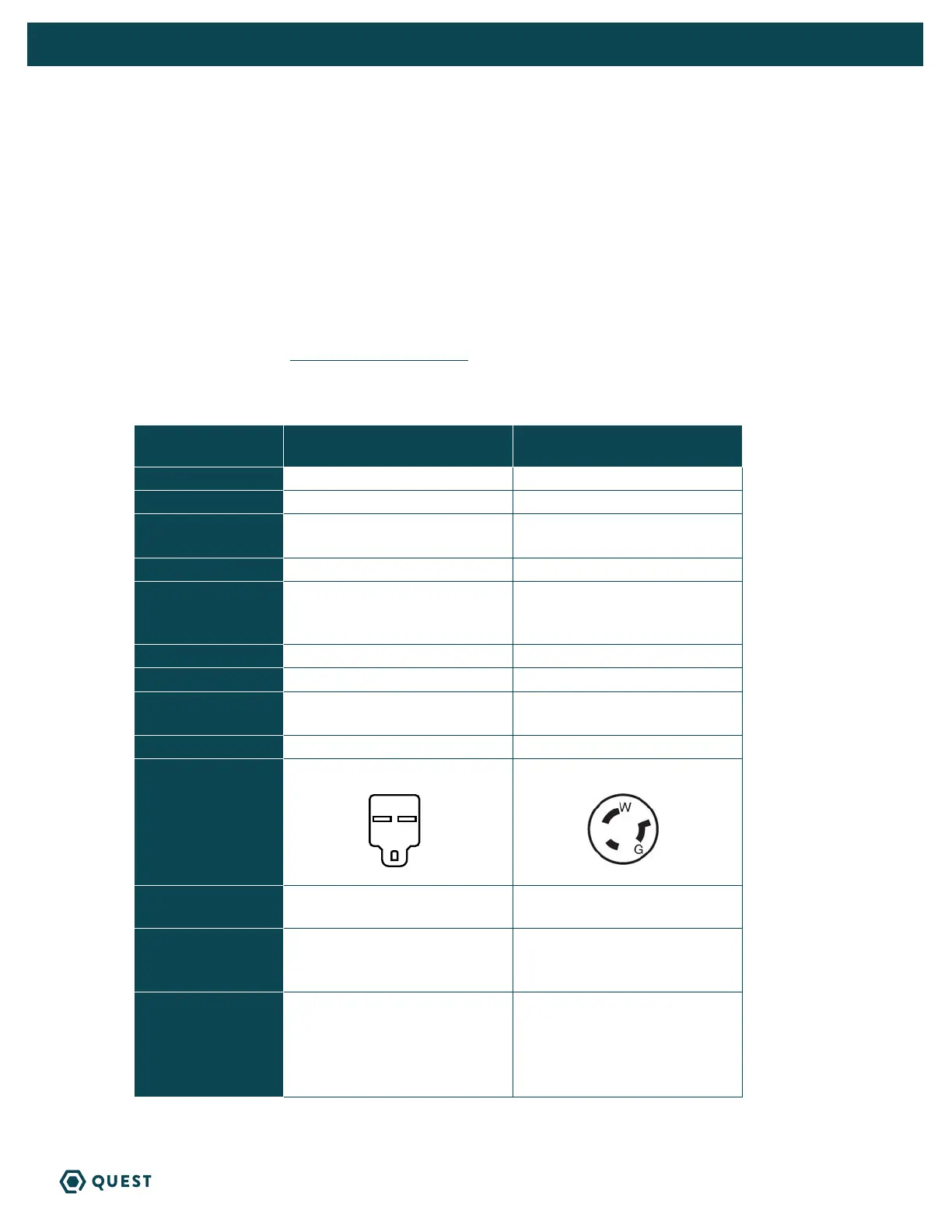

3. SPECIFICATIONS @ 80°F/60% RH
UNIT
QUEST 506
4036600
QUEST 506 277V
4036610
CFM:
1350@0.0” WG 1350@0.0” WG
POWER:
2700 Watts 2700 Watts
SUPPLY VOLTAGE:
220-240 VAC
1 Phase - 60 Hz
277 VAC
1 Phase - 60 Hz
CURRENT DRAW:
11.0A 10.0A
RATED CURRENT
DRAW (AMPS):
(104 F
| 36%)
13.6A 12.2A
ENERGY FACTOR:
3.8 L/kWh 3.8 L/kWh
OPERATING TEMP:
56 F Min - 95 F Max 56 F Min - 95 F Max
WATER REMOVAL:
EFFICIENCY:
506 Pints/Day
8.1 Pints/kWh
506 Pints/Day
8.1 Pints/kWh
AIR FILTER:
MERV-13 Size: 18” x 20” x 2” MERV-13 Size: 18” x 20” x 2”
POWER CORD:
14ga 10’, NEMA 6-20P 12ga 10’, NEMA L7-20P
DRAIN
CONNECTION:
3/4” Threaded NPT 3/4” Threaded NPT
REFRIGERANT TYPE:
REFRIGERANT
AMOUNT:
R410A
4 lb 8 oz
R410A
4 lb 8 oz
DIMENSIONS:
WIDTH:
HEIGHT:
LENGTH:
WEIGHT:
Unit Shipping
28.9” 36”
33.8” 40”
44.7” 48”
280 lb 340 lb
Unit Shipping
28.9” 36”
33.8” 40”
44.7” 48”
280 lb 340 lb
* Unit 4036600 requires buck/boost transformer to run on 208V or 277V
* Both units require external control not provided

Quest Engineering 506 Specifications

General

Brand	Quest Engineering
Model	506
Category	Dehumidifier
Language	English
