INSTALLING THE TERMINALS
In order for data to be correctly transmitted when several chain counters are employed, terminator (150
ohm) must be installed.

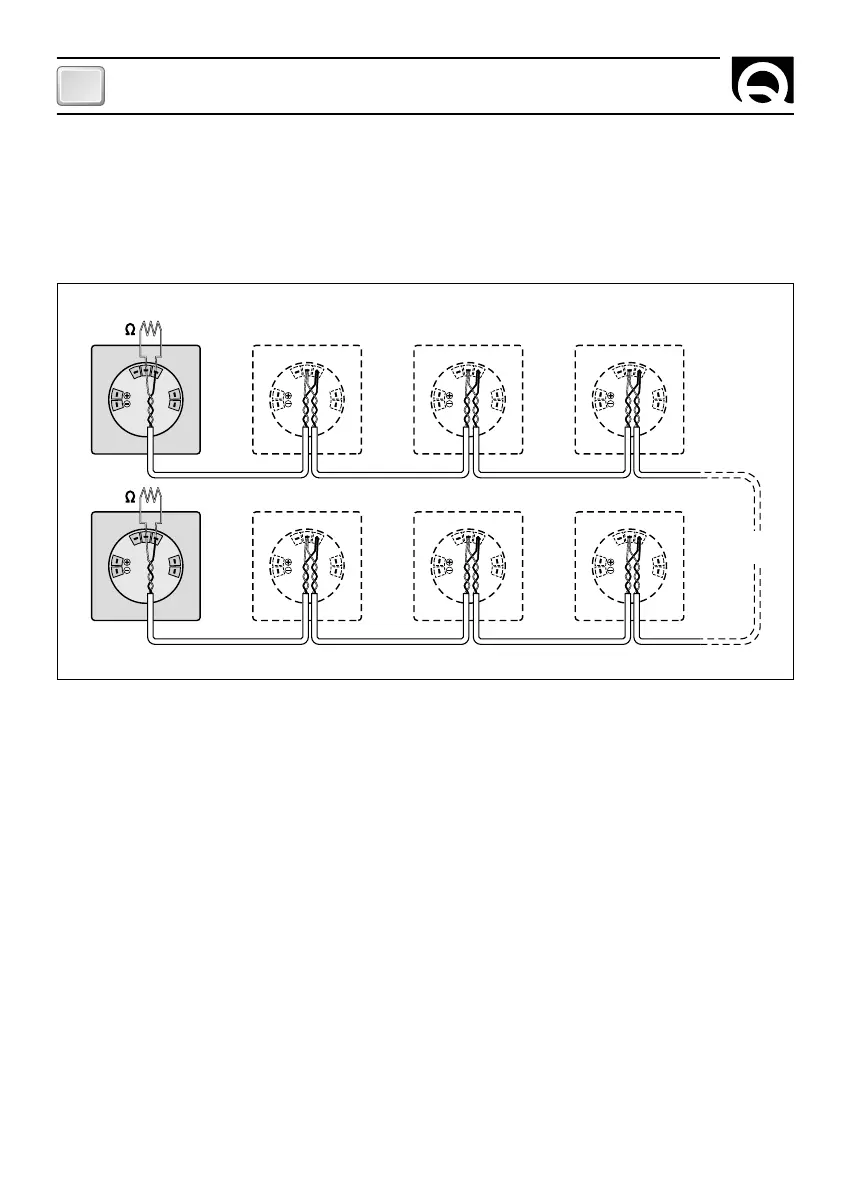

The terminator should be connected between signals CANH and CANL of the first and last chain counter
included in the network, as illustrated in the figure below:
SENSOR
CAN H
UP
DOWN
CAN L
150
1234
20 19 18 17
150
SENSO
R
CAN H
UP
DOWN
CAN L
SENSO
R
CAN H
UP
DOWN
CAN L
SENSOR
CAN H
UP
DOWN
CAN L
SENSO
R
CAN H
UP
DOWN
CAN L
SENSO
R
CAN H
UP
DOWN
CAN L
SENSO
R
CAN H
UP
DOWN
CAN L
SENSO
R
CAN H
UP
DOWN
CAN L
Do not install the terminator if just one chain counter is used.
INSTRUMENTS
FROM 5 TO 16
INSTALLATION
