CHC1202M IT GB - REV005B

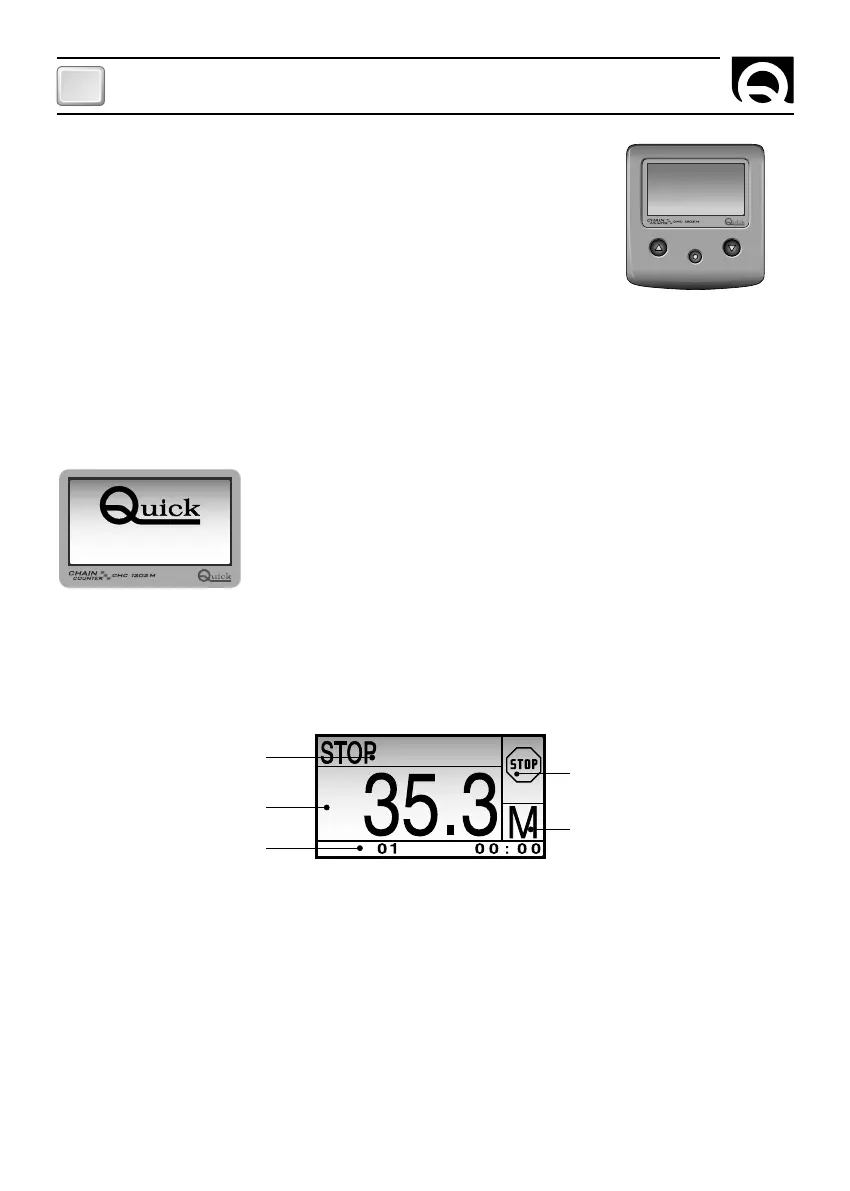

MAIN WINDOW
Once the initialization procedure has been completed, the main window is displayed:
This window is divided into the following sections:
Count line - The length of the chain lowered is shown in this area.
Measure unit area - The unit of measurement currently being used is shown in this area. The values may
be displayed in "M" for meters and "FT" for feet.
State line - Messages regarding the state of the chain counter or faults detected are shown here.
Icon area - The icons regarding the state of the chain counter or faults detected are shown here.
Monitor line - The following information may be displayed here, depending on the selections made by the
user: date and time, supply voltage and chain speed.
WED JAN
State line
Count line
Icon area
Measure unit area
Monitor line
CHAIN COUNTER OPERATION
Three elements are employed between user and counter interface:
A GRAPHIC DISPLAY SCREEN, CONTROL KEYS AND BUZZER.
The display screen shows the measure of chain lowered, state of the chain
counter along with other information.
The control panel comes with three keys. The two largest keys are used to
move the anchor up (
p
,UP key) or down (
q
,DOWN key), move within the
system menus or modify the value of parameters.
The middle key (
=
SELECT) is used to select the monitoring mode, go to the system menus or confirm
parameters.
The buzzer signals when the keys have been pressed or when it is necessary to call the user's attention.
Use the switch on the power supply line to turn the chain counter on and off.
When the chain counter is turned on, the following window is displayed for a few seconds:
CHC1202M
S/N : XXXXX/YYZZ
Where XXXXX is the serial number, YY is the week of production and ZZ
is the year the chain counter was produced.
When the chain counter is turned on the first time, the menu used to
select the language in which messages are displayed appears.
The selected language can be changed later on.
CHAIN COUNTER OPERATION
