Quick CHC1203 User Manual

31
EN
CHC1203 IT EN FR - REV001A

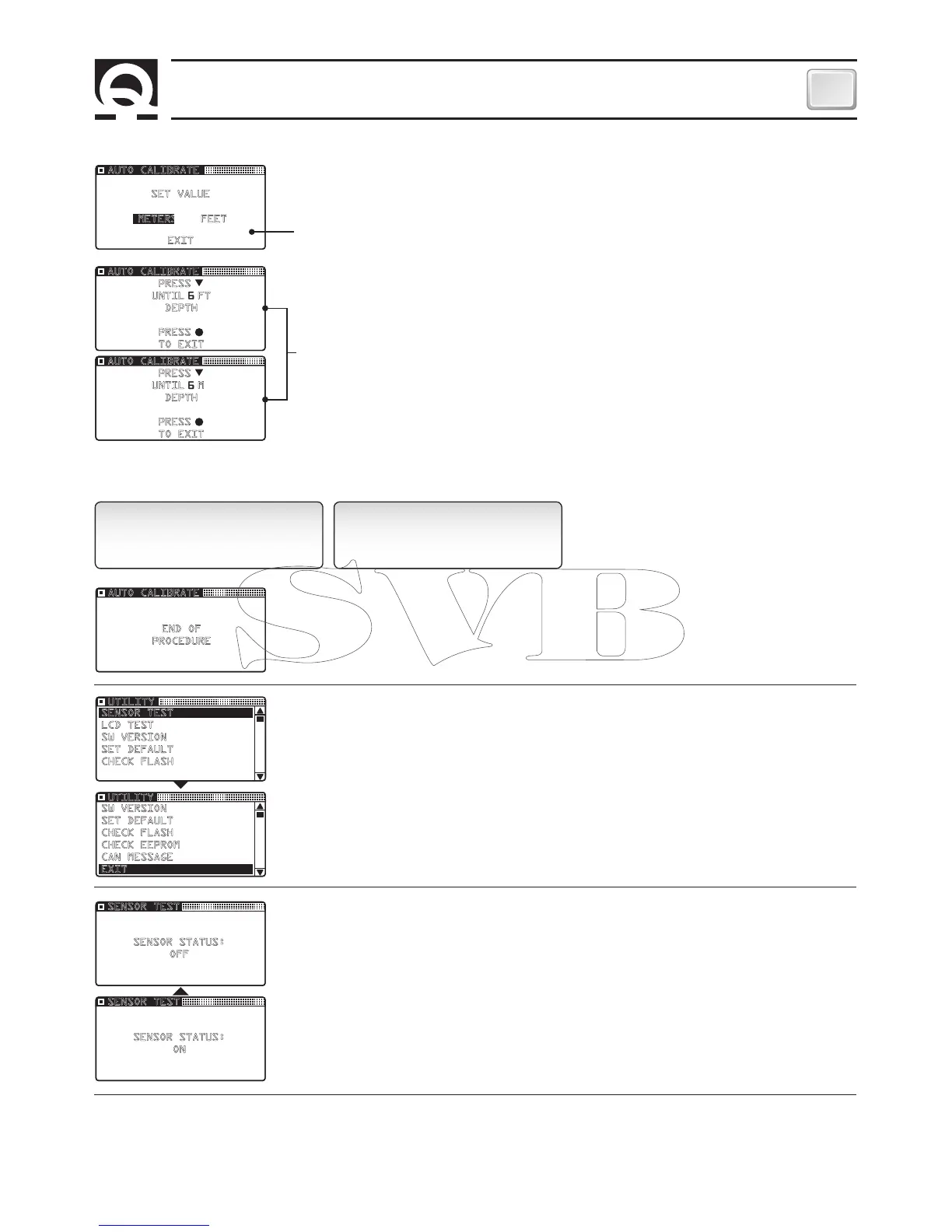

SETTING THE CHAIN COUNTER
After which the following window will be displayed for two seconds:
and the SETTINGS menu will be shown again.
AUTO CALIBRATE
END OF
PROCEDURE
SETTINGS MENU - UTILITY
This option allows the user to perform procedures to check and control the chain coun
-
ter operation.
The UTILITY Sub-menu
UTILITY
SW VERSION
SET DEFAULT
CHECK FLASH
CHECK EEPROM
CAN MESSAGE
EXIT
UTILITY
SENSOR TEST
LCD TEST
SW VERSION
SET DEFAULT
CHECK FLASH
SETTINGS MENU - UTILITY - SENSOR TEST
This function can be used during installation or to check that the lap sensor works prop-
erly. If the sensor detects the magnet, ON is displayed and the buzzer sounds; otherwise
OFF is displayed and the buzzer does not sound.
SENSOR TEST
SENSOR STATUS:
OFF
SENSOR TEST
SENSOR STATUS:
ON
SETTINGS MENU - UTILITY - LCD TEST
This function can be used to check correct operation of the LCD display's pixels.
Once the data item has been confirmed from the utility menu, all the display pixels will be activated for 5 seconds; after
which the system will go back to menu UTILITY.
SETTINGS MENU - AUTOMATIC CALIBRATION
Use this option to automatically calibrate the chain counter.
The first window regarding AUTOMATIC CALIBRATION is shown below:
AUTO CALIBRATE
SET VALUE
EXIT
FEETMETERS
Use this option to select the unit of measurement used to measure the chain lowered.
Selectable values: METERS or FEET.
Once key q (DOWN) is released the chain counter will stop the chain from moving down and automatically set the fol-
lowing values:
AUTO CALIBRATE
PRESS
UNTIL M
DEPTH
PRESS
TO EXIT
AUTO CALIBRATE
PRESS
UNTIL FT
DEPTH
PRESS
TO EXIT
This window tells the user the chain has to be lowered 6 meters (or 20 feet, depending
on the unit of measurement selected) in an uninterrupted manner. The length of the
chain unwound each lap can be calculated according to the number of laps completed
by the gypsy (counted by the chain counter).
GYPSY LAP
cm=600/number of laps counted
NUMBER OF MAGNETS=1
GYPSY LAP
inc=240/number of laps counted
NUMBER OF MAGNETS=1
