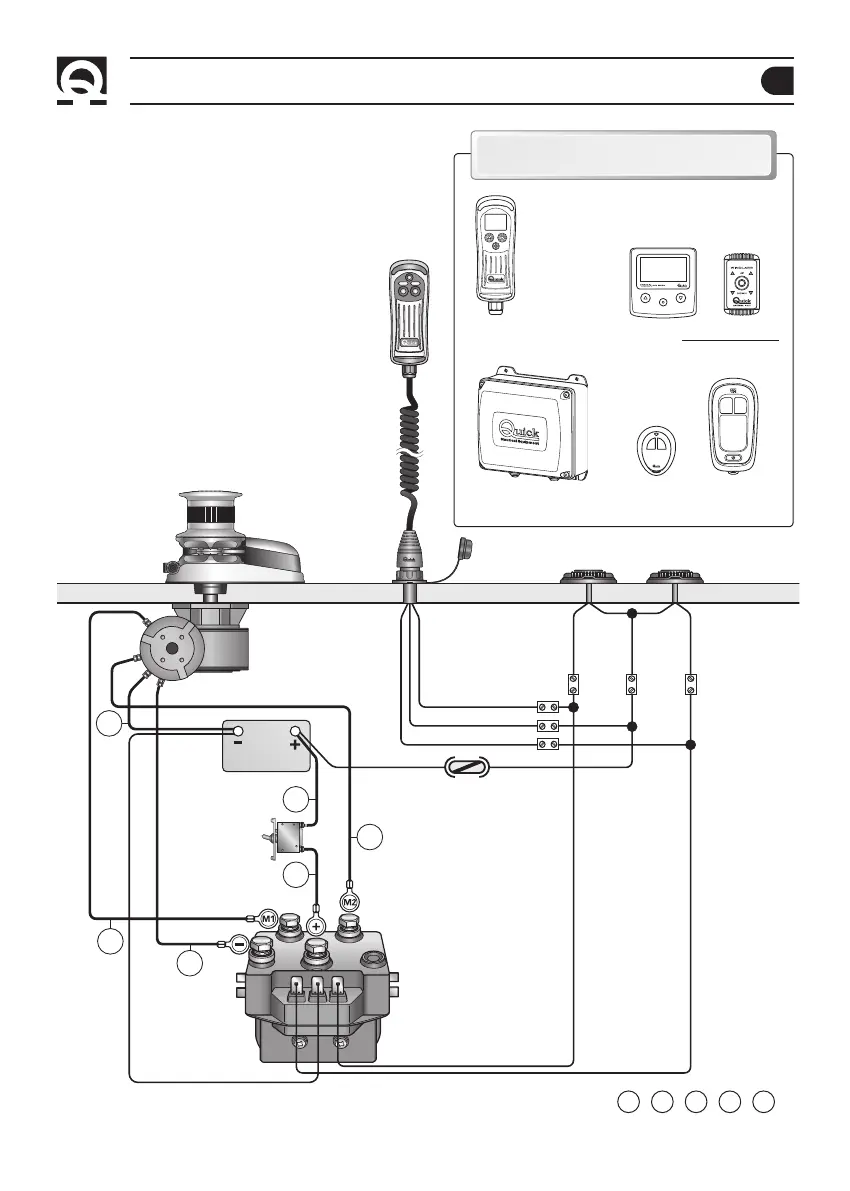

CONNECTION DIAGRAM
BROWN
BLACK
BLUE
A
A
S
S
MULTI-PURPOSE
WATERTIGHT HAND HELD
REMOTE CONTROL
MOD. HRC 1002
WINDLASS
MOTOR
BATTERY
HYDRAULIC-
MAGNETIC
CIRCUIT BREAKER
REVERSING
CONTACTOR UNIT
MOD. T6415-24 (24V)
C
A2
FOOT SWITCHES MOD. 900U AND 900D
BLACK
BROWN
BLUE
A1
FUSE
4A (12V)
2A (24V)
L5
L2
L3
L1
L6
L4
BASIC SYSTEM DV5 3000W
WATERTIGHT PANEL
CHAIN COUNTERCHC
1202 M
WINDLASSES
CONTROL BOARD
MOD.800
WATERTIGHT HAND HELD
CHAIN COUNTER
MOD. CHC 1102 M
QUICK
®
ACCESSORIES
FOR WINDLASS OPERATION
TRANSMITTERS
HANDHELD
MOD. H02
RECEIVER
MOD. R02
RADIO POCKET
MOD. P02
RRC REMOTE RADIO CONTROLS
L = L1 + L2 + L3 + L4 + L5
