Quick DV5 Dave Series - Page 26

26
DV5 1700/2000/2300/3000W - IT EN - REV002B
EN
MAINTENANCE
49
48
47
1
2
3
4
16
17
18
19
20
21
22 23
24
5
26
26
26
26
31
31
32
32
33
34
35
36
37
44
27
28
29
30
6
14
6
6
7
9
15
43
45
46
10
11
12
13
13
8
38
39
40
41
42
50
51
25
22
33

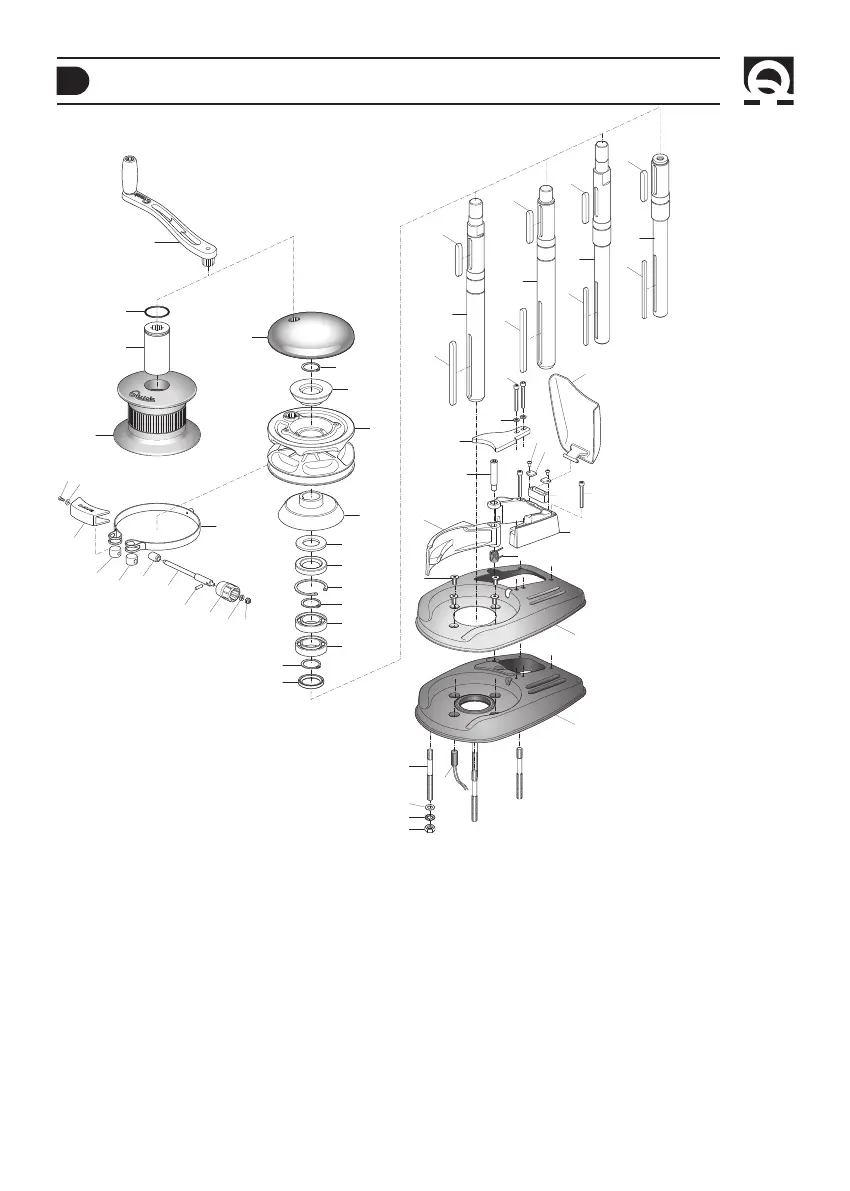

POS. DESCRIPTION
1 BENT ANCHOR WINCH LEVER
2 O-RING BUSH
3 DRUM BUSH
4 WINDLASS DRUM 2000W
5 GYPSY COVER
6 EXTERNAL CIRCLIP
7 TOP CLUTCH CONE 3000W
8A GYPSY 3000W 10 MM-3/8" COMPL.
8B GYPSY 3000W 12-13 MM COMPL.
8C GYPSY 3000W 14MM COMPL.
9 BOTTOM CLUTCH CONE 3000W
10 REINFORCEMENT WASHER 3000W
11 OIL SEAL
12 INTERNAL CIRCLIP
13 BEARING
14 OIL SEAL
15 BRAKE BELT 4000 W “DV”
16 BRAKE BELT BRASS PIN 3000W
17 BRAKE BELT BRASS PIN
18 SHAFT INSERT BRAKE BELT “DV”
19 BRAKE BELT SHAFT “DV” 4000W
20 PLUG
21 BRAKE BELT KNOB “DV” SERIES
22 SCREW
23 SELF-LOCKING NUTS
24 BRAKE BELT CASING “DV”
25 SCREW
26 KEY
27 SHAFT SERIES "DV" 3000W D
28 SHAFT SERIES “DV” 3000W
29 SHAFT SERIES “DV” 1700W D
30 SHAFT SERIES "DV" 1700W
31 KEY
32 KEY
33 SCREW
34 SCREW
35 ROPE/CHAIN STRIPPER 4000W "DV"
36 PRESSURE LEVER PIN 3000W “DV”
37A PRESSURE LEVER "DV" X
37B PRESSURE LEVER "DV" Y
38A SPRING FOR PRESSURE LEVER 3000W “DV” X
38B SPRING FOR PRESSURE LEVER 3000W “DV” Y
39A CHAIN GUIDE COVER "DV" X
39B CHAIN GUIDE COVER "DV" Y
40 SCREW
41 INSERT FOR CHAIN GUIDE “DV”
42 PLASTIC INSERT CHAIN FALL 3000W “DV”
43A “DV” CHAIN GUIDE SUPPORT X
43B “DV” CHAIN GUIDE SUPPORT Y
44 SCREW
45A COVER BASE “DV” INOX X
45B COVER BASE “DV” INOX Y
46A WINDLASS BASE SERIES "DV" X
46B WINDLASS BASE SERIES "DV" Y
47 ASSEMBLED SENSOR REED
48 STUD
49 WASHER
50 GROWER
51 NUT
DV5 BASE Y / DY (left)
