Quick HC3 712 User Manual

12
GB
HECTOR 700/1000/1500W - REV008A
BASIC SYSTEM
MULTI-PURPOSE
WATERTIGHT HAND HELD
REMOTE CONTROL
MOD. HRC 1002
WINDLASS
BATTERY
HYDRAULIC-
MAGNETIC
CIRCUIT BREAKER
(SEE TABLE ON
PAGE 10)
FOOT SWITCHES MOD. 900U AND 900D
BLUE
BROWN
BLACK
FUSE
4A (12V)
2A (24V)
L = L1 + L2 + L3
BLACK
BROWN
BLUE
BLACK
BLUE
WHITE
GREEN
CHAIN COUNTER
SENSOR CABLE
RED
BLACK
L1
L2 L3

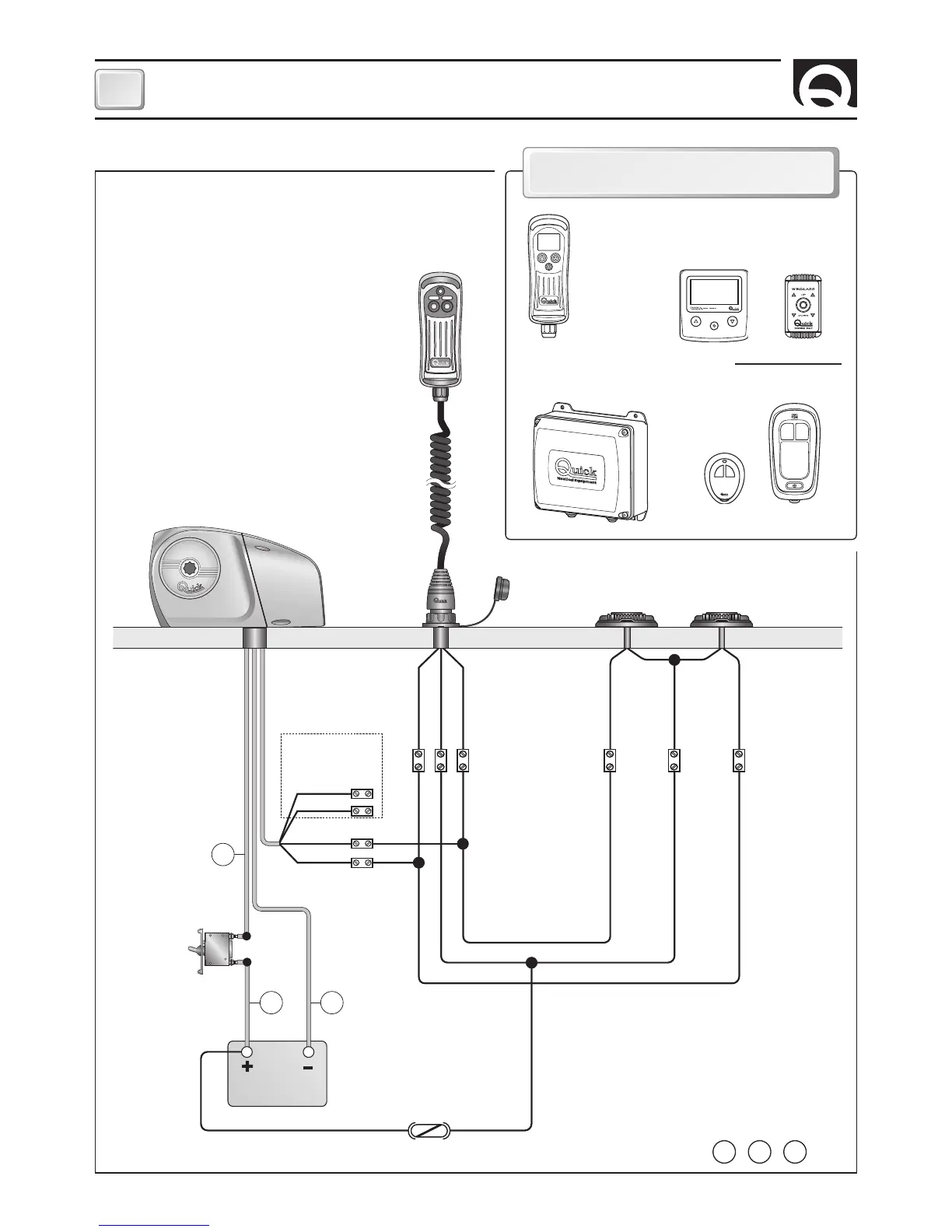

CONNECTION DIAGRAM
RADIO POCKET
WATERTIGHT
PANEL
CHAIN COUNTER
WINDLASSES
CONTROL
BOARD
WATERTIGHT HAND HELD
CHAIN COUNTER
HANDHELD
RECEIVER
QUICK
®
ACCESSORIES
FOR WINDLASS OPERATION
TRANSMITTERS
REMOTE RADIO CONTROLS
RADIO POCKET
