MAINTENANCE
N. DESCRIPTION
1 “HC” BASE
2 BUSH
3 DRUM
4 SCREW
5 OPEN COVER
6 EXTERNAL CIRCLIP
7 CLOSED COVER
8 GASKET COVER
9 CIRCLIP
10 BEARING 6008
11 CROWN GEAR
12 KEY
13 KEY
14 SHAFT “HC” D
15 SHAFT “HC” -
16 SHAFT “HC” DB
17 BOTTOM CLUTCH CONE
18 A GYPSY 8MM - 5/16” “HC”
18 B GYPSY 10MM “HC”
19 TOP CLUTCH CONE
20 GYPSY COVER
21 SCREW
22 BENT WINDLASS LEVER
23 PRESSURE LEVER
24 SPRING FOR PRESSURE LEVER
25 SCREW FOR PRESSURE LEVER
26 PLUG
27 SPRING
28 GYPSY LOCK LEVER
29 ROPE/CHAIN STRIPPER
30 SCREW
31 LOCK LEVER CONTROL
32 SPRING
33 SCREW
34 WASHER
35 NUT
36 STUDS
37 WASHER
38 GROWER
39 NUT
40 SCREW
41 A “HC” CASING IN PLASTIC
41 B “HC” CASING IN ALUMINIUM
42 CASING GASKET
43 CIRCLIP
44 INTERNAL CIRCLIP
45 BEARING 7205
46 WORM SCREW
47 BEARING 6204
48 OIL CAP
49 OIL CAP SEAL
50 O-RING
51 “HC” CABLE OUTLET
52A ELECTRIC MOTOR 700W 12V
52B ELECTRIC MOTOR 700W 24V
52C ELECTRIC MOTOR 1000W 12V
52D ELECTRIC MOTOR 1000W 24V
52E ELECTRIC MOTOR 1500W 12V
52F ELECTRIC MOTOR 1500W 24V
53 KEY
54 SENSOR
55 RED “HC” MOTOR CABLE
56 BLACK “HC” MOTOR CABLE
57 “HC” CONTROLCABLE
58 “HC” COPPER BRACKET RIGHT
59 “HC” COPPER BRACKET LEFT
60 A REVERSING CONTACTOR UNIT
T6415-12 12V
60 B REVERSING CONTACTOR UNIT
T6415-24 24V
61 SCREW
2
7 8 9 10
3 4 5
6
1

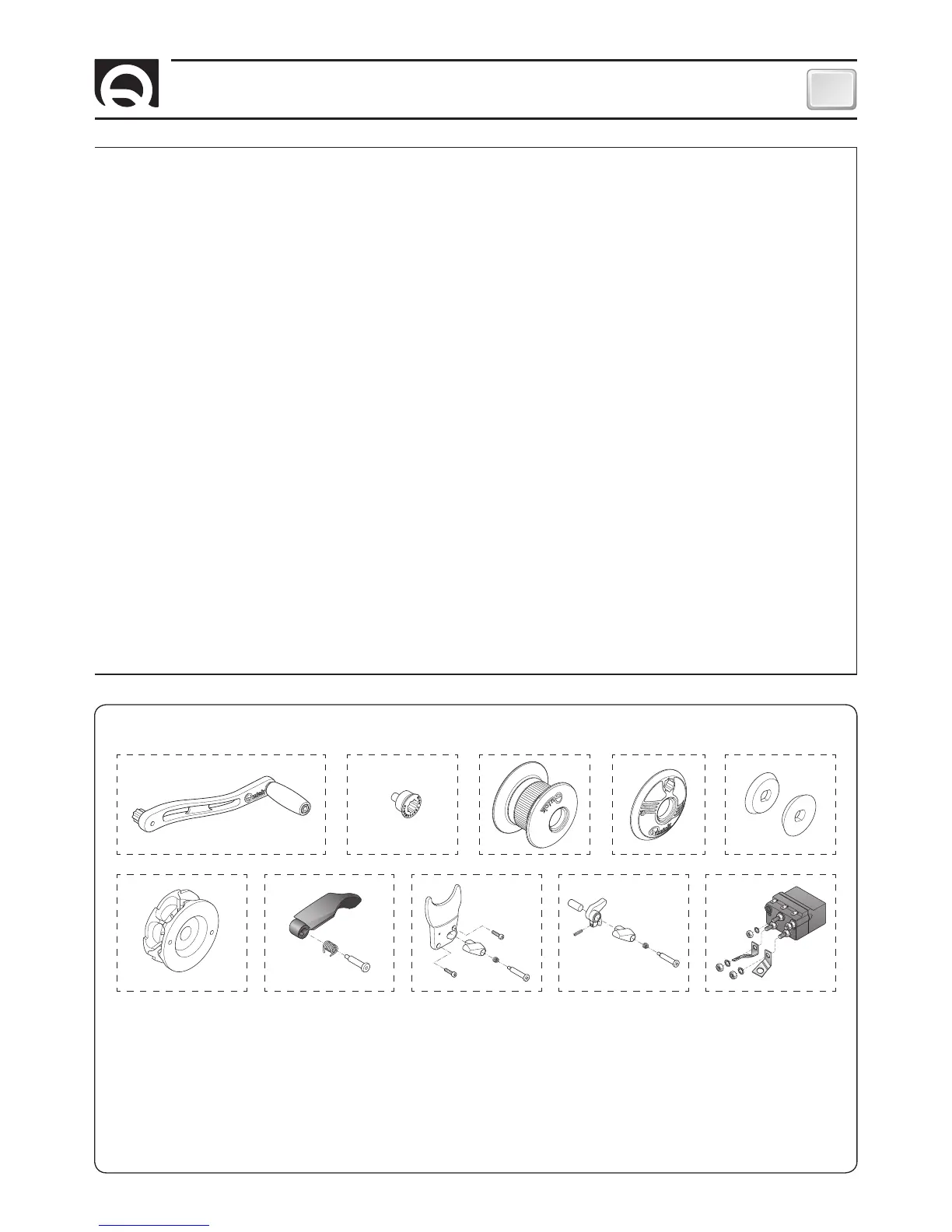

N. OSP DESCRIPTION CODE
1 OSP BENT WINDLASS LEVER R01 FVSSLVSP00R1A00
2 OSP CLUTCH BUSH SERIES AT/HC FVSSGMSDFRAT000
3 OSP WINDLASS DRUM 1000W HC R2 FVSSMSE10ATXA00
4 OPS GYPSY COVER AT/HC FVSSCPBBATHCA00
5 OSP CLUTCH CONES AT/HC/AL/DP3 FVSSCFANHC00A00
6 A OSP GYPSY 1000W 8MM-5/16” HC FVSSB100851HA00
6 B OSP GYPSY 1000W 10MM-3/8” HC FVSSB101038HA00
7 OSP KIT HECTOR PRESSURE LEVER FVSSTCHC0000A00
8 OSP HECTOR CHAIN STRIPPER FVSSSCHC0000A00
9 OSP KIT HECTOR GYPSY LOCK FVSSBLBBHC00A00
10 A
OSP KIT REVERSING CONTACTOR UNIT
HC 7/10/1500W 12V
FVSSKTTR1012A00
10 B
OSP KIT REVERSING CONTACTOR UNIT
HC 700/1000W 24V
FVSSKTTR1024A00
KIT OSP
