Quick RG5 Series User Manual

20
EN
RG5 1700/2000/2300/3000W IT EN - REV006A
MULTI-PURPOSE
WATERTIGHT HAND HELD
REMOTE CONTROL
MOD. HRC 1002
WINDLASS
MOTOR
BATTERY
HYDRAULIC-
MAGNETIC
CIRCUIT
BREAKER
(SEE TABLE
ON PAGE 18)
CONTACTOR UNIT
MOD. T6315-24 (24V)
C
A2
FOOT SWITCHES MOD. 900U AND 900D
BLACK
BROWN
BLUE
A1
FUSE
4A (12V)
2A (24V)
BROWN
BLACK
BLUE
L2
L1
L3
L4
L3
BASIC SYSTEM RG5 1700/2000/2300W
L = L1 + L2 + L3 + L4

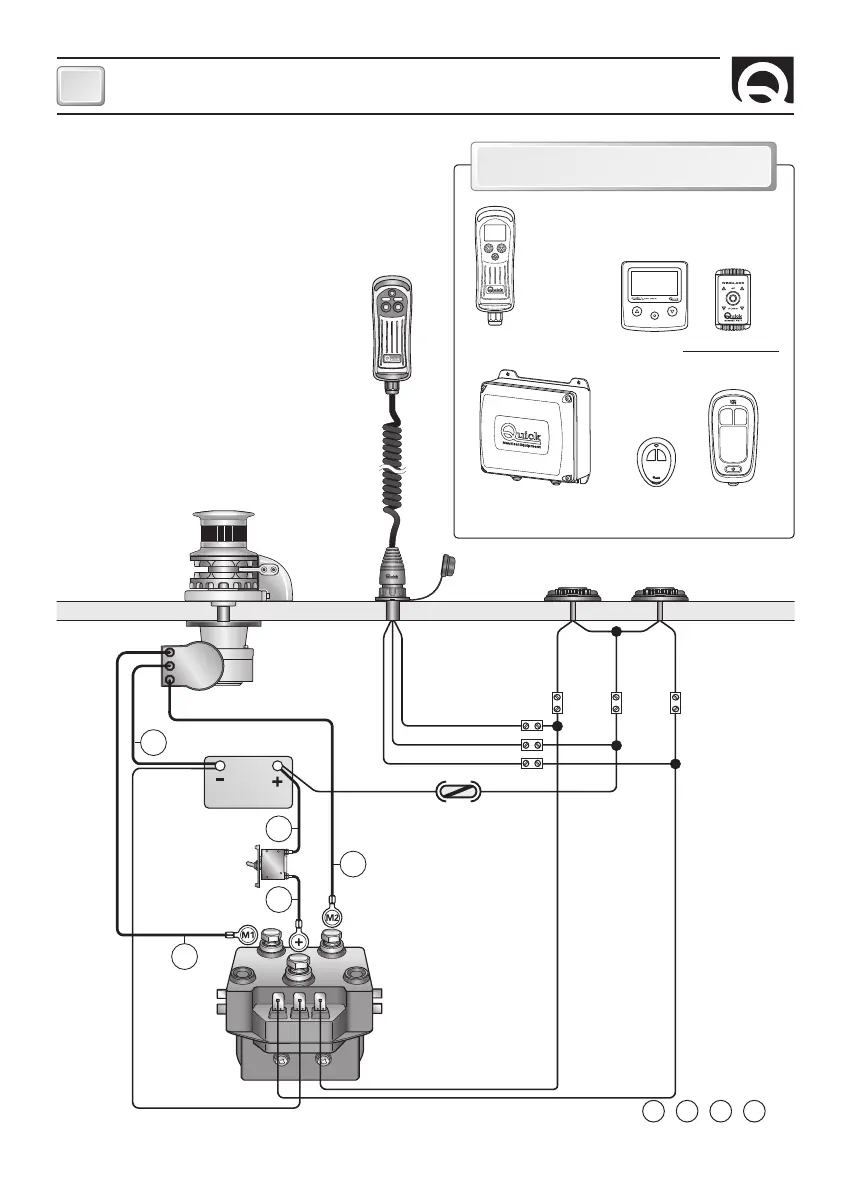

CONNECTION DIAGRAM
RADIO POCKET
QUICK
®
ACCESSORIES
FOR WINDLASS OPERATION
TRANSMITTERS
RRC REMOTE RADIO CONTROLS
WATERTIGHT
PANEL
CHAIN COUNTER
CHC 1202 M
WINDLASSES
CONTROL
BOARD
MOD.800
WATERTIGHT HAND HELD
CHAIN COUNTER
MOD. CHC 1002 M
HANDHELD
MOD. H02
RECEIVER
MOD. R02
POCKET
MOD. P02
