RG5 1700/2000/2300/3000W IT EN - REV006A

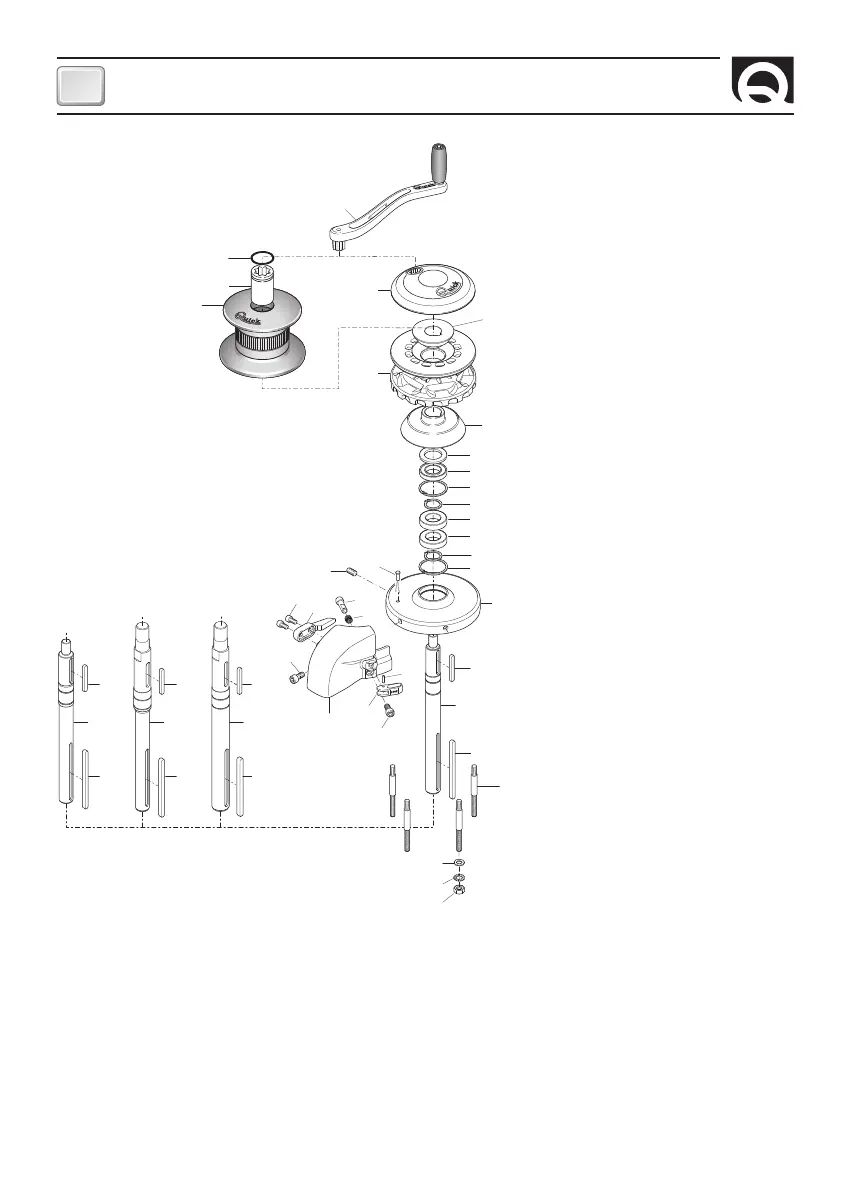

MAINTENANCE
N. DESCRIPTION
1 BENT LEVER OF THE WINCH
2 O-RING
3 BUSH
4 DRUM
5 GYPSY COVER
6 TOP CLUTCH CONE
7 GYPSY
8 BOTTOM CLUTCH CONE
9 WASHER REINFORCEMENT
10 OIL SEAL
11 INTERNAL CIRCLIP
12 EXTERNAL CIRCLIP
13 BEARING
14 BASE
15 SENSOR
16 GYPSY LOCK PIN
17 SPRING
18 SCREW
19 ROPE/CHAIN STRIPPER
20 SCREW
21A CHAIN PIPE SX
21B CHAIN PIPE DX
22 GYPSY REGAL LOCK LEVER
23 PLUG
24 SCREW
25 SHORT SHAFT 23/3000W
26 LONG SHAFT 23/3000W
27 LONG SHAFT 17/2000W
28 SHORT SHAFT 17/2000W
29 KEY
30 KEY
31 KEY
32 STUD
33 WASHER
34 SPRING WASHER
35 NUT
29
25
30
32
35
33
34
5
9
11
11
13
13
14
12
15
7
17
23
18
19
20
22
20
21
16
12
8
1
29
28
31
24
10
4
3
2
29
27
31
26
29
30
6
36 GEARBOX FLANGE GASKET TOP TG70
37 GEARBOX 1700W - QUICK SERIES
38 WASHER
39 SELF-LOCKING NUTS
40 GEARBOX 1700W O-RING
41 KEY
42 ELECTRIC MOTOR 1700W 12/24V
43 MOTOR CASING WATERTIGHT 1700W
44 TERMINAL BOARD GASKET
45 TERMINAL BOARD COVER
46 SCREW
47 BOTTOM GASKET
48 BOTTOM COVER
49 CABLE OUTLETS
50 GEARBOX 2000W
51 WASHER
52 SCREW
53 O-RING 2000W
54 KEY
55 ELECTRIC MOTOR 2000W - 24V
56 MOTOR CASING WATERTIGHT 2000W
57 BOTTOM COVER O-RING
58 BOTTOM COVER
59 LOWER TERMINAL BOARD GASKET
60 UPPER TERMINAL BOARD GASKET
61 UPPER TERMINAL BOARD COVER
62 SELF-TAPPING SCREW
63 SELF-TAPPING SCREW
64 SCREW
65 FLANGE GEARBOX 3000W
66 GEARBOX 2300-3000W - 24V
67 WASHER
68 GROWER
69 NUT
70 GASKET MOTORGEARBOX 3000W
71 ELECTRIC MOTOR 2300W ADAPTOR
72 ADAPTOR KEY
73 ELECTRIC MOTOR 2300W 24V
74 ELECTRIC MOTOR 3000W 24V
75 KEY
76 ELECTRIC MOTOR 3000W AC 230/400
