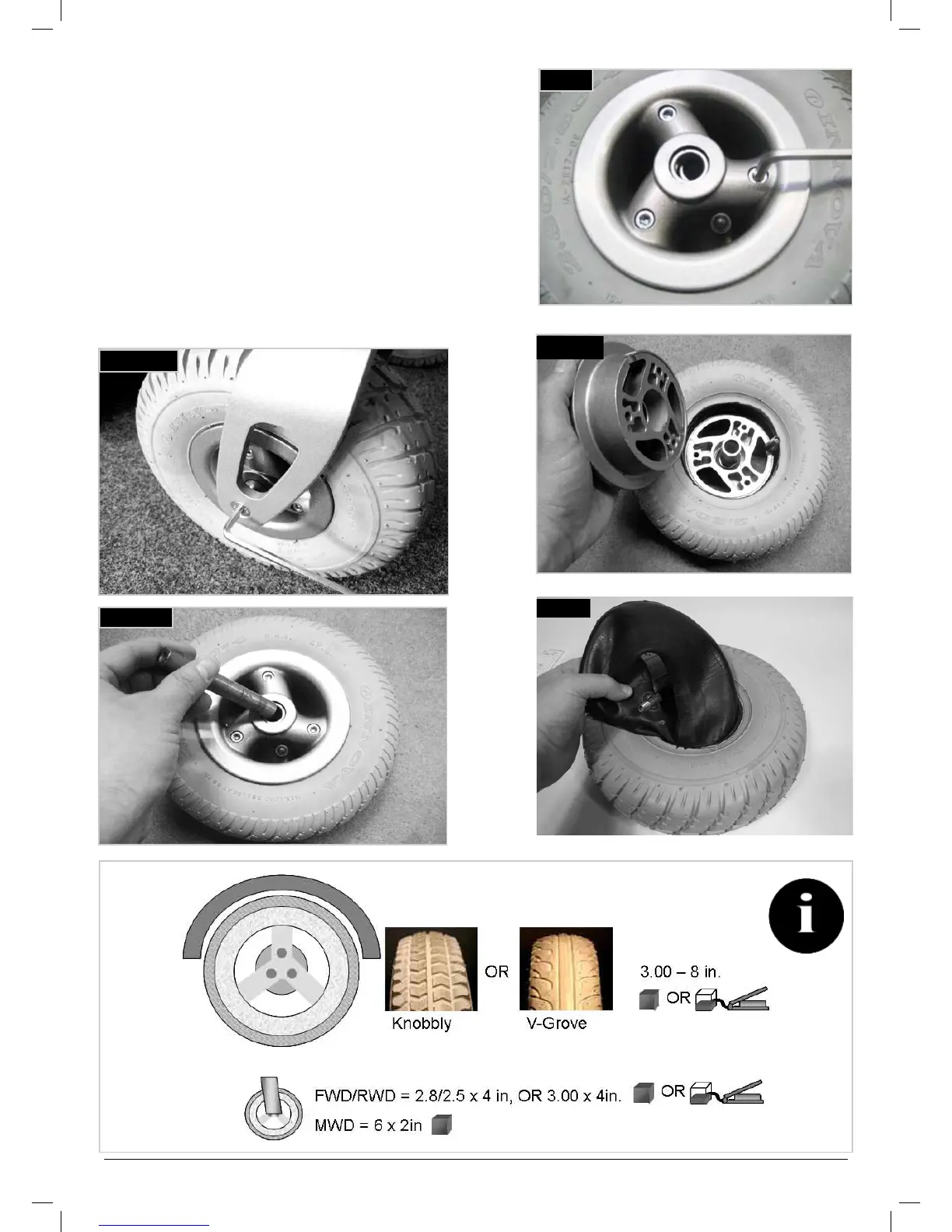

14.3 Removing the RWD/FWD castor wheel.
Note the position of the castor & which hole is used to
mount it. Ensure that both castors use the same mount
position.
Use a 5.0mm hex key remove the 2 axle studs, •
(Fig.14.13).
Remove the centre spacers and spindle, (Fig.14.14).•
For pneumatic tyres,
let the air out of the tyre. •
Undo the 3 hub studs, (Fig.14.15). •
Lift the hubs out, (Fig.14.16).•
Gently feed the tube out of the tyre, (Fig.14.17)•
When refitting the hub studs, tighten to a torque of •
15-20Nm.
Fig. 14.13
Fig. 14.14
Fig. 14.16
Fig. 14.17
Fig. 14.15
