15.1 Model: Quickie Jive R
15.0 Specification sheets (EN 12184 & ISO 7176-15)
Sunrise Medical Limited
High Street Wollaston
West Midlands DY8 4PS
ENGLAND
Tel.: +44 (0) 1384446688
www.SunriseMedical.com
Maximum occupant mass
(test dummy mass): 160 kg
The wheelchair Quickie
Jive R conforms to the
following standards:
a) requirements and test
methods for static, impact
and fatigue strengths
(ISO 7176-8)
b) power and control
systems for electric
wheelchairs —
requirements and test
methods (ISO 7176-14)
c) climatic test in
accordance with ISO
7176-9
d) requirements for
resistance to ignition in
accordance with ISO 7176-
16

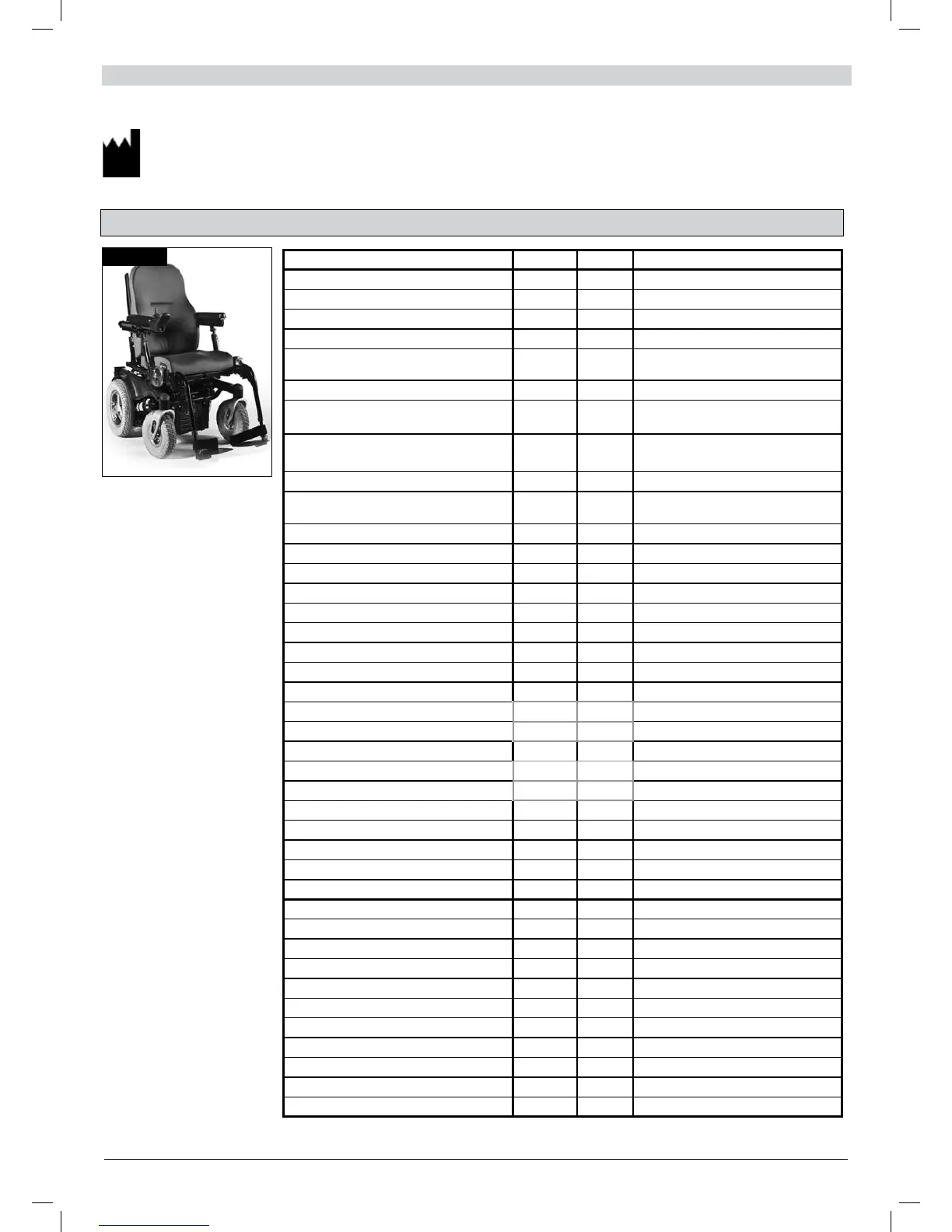

Fig.15.1
ISO 7176-15 Min Max Comments
Overall length (with legrest) 1185mm 1215 mm With 50mm leg extesions tted
Overall width 620 mm 660 mm Without lights and with lights
Folded length N/A N/A Not a folding chair
Folded height N/A N/A Not a folding chair
Total mass (with batteries) 145 kg 187 kg
Min = Lightest chair with no seat module
tted. Max = Heaviest chair conguration
Mass of the heaviest part 23,5 kg Heaviest removable part
Static stability downhill 0° 24°
0º tilt / 0º recline & max. seat height. Not
with Balle unit
Static stability uphill 0° 10,7°
9º tilt / 12º recline & max. seat height. Not
with Balle unit
Static stability sideways 0° 19,2° 0º tilt / 0º recline & max. seat height
Energy consumption (Max Range) 35km
Depending on terrain, speed and user
weight
Dynamic stability uphill 10°
Obstacle climbing 100 mm 100 kg (75 mm at 160 kg)
Maximum speed forward 6 km/h 13 km/h
Minimum braking distance from max speed 3.1m Dependant on programming
Seat plane angle 0° 9° Not with Balle Tilt tted
Effective seat depth 400 mm 560mm
Effective seat width 400 mm 560 mm
Seat surface height at front edge 430 mm 480 mm With a 0° seat angle
Backrest angle
-5° 12°
mechanical
Backrest height 560mm 700mm
Footrest to seat distance 340 mm 540 mm
Leg to seat surface angle 0° 90°
Armrest to seat distance 210mm 300mm
Front location of armrest structure 260mm 560mm
Handrim diameter
N/A N/A
Not a manual chair
Horizontal location of axle N/A N/A Not a manual chair
Minimum turning radius 1000 mm Dependant on legrest option
Mass of the test dummy 160kg
EN 12184 Comments
Maximum kerb height 50 mm 100 mm
Ground clearance 75mm
Turning space 1400 mm
Reversing Width 12184mm
Speed control operation force 1,5 N
Direction control operation force 1,5 N
Pressure switch range -6,9 kPa +6,9 kPa Relative to atmospheric (-1.0 to +1.0 PSI)
Pressure switches operation force (puff) N/A N/A Programmable
Pressure switches operation force (sip) N/A N/A Programmable
Pressure resolution 0.1
Pressure Barb size (OD) 0,15 Inches
