119832 Rev. B
17
ENGLISH
13
VIII.

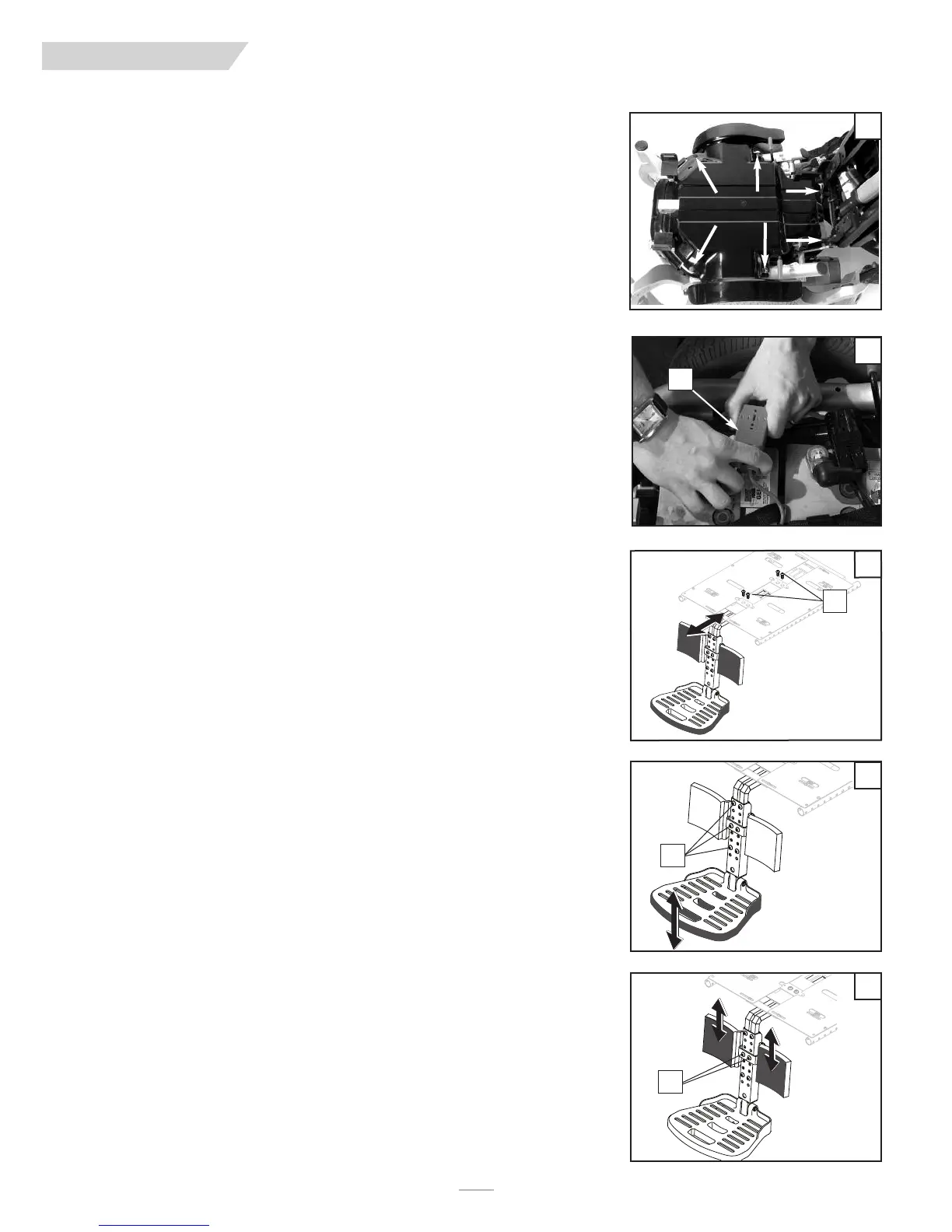

A. BATTERY REMOVAL
(Figures 10, 11)
To remove the batteries for transporting or servicing:
1. Remove Batteries
a. Carefully remove seat (see Section O. Seat Removal).
b. Remove the shroud by first removing the six fasteners (Figure 10). Then lift up on the
shroud.
c. Unplug main power connect (A) (Figure 11).
d. Lift batteries out of the frame using the battery strap as a lifting handle
2. Battery Installation
See Section X. Batteries, D for installation.
WARNING
Batteries may weigh up to 39 lbs. Care must be taken to avoid injury when
lifting up on battery straps.
B. CENTER MOUNT HANGER ADJUSTMENT
1. Removal (Figure 12)
a. Remove the four bolts (B) and slide the footrest out.
2. Height Adjustment (Figure 13)
a. Remove the six securing bolts (C).
b. Move footplate to desired height.
c. Re-install bolts (C) through desired holes.
3. Calf Pad Adjustment (Figure 14)
a. Remove the two securing bolts (D).
b. Move calf pads to desired height.
c. Re-install bolts (D) through desired holes.
14
10
11
1
2
A
B
C
D
