C. SWING-AWAY FOOTRESTS

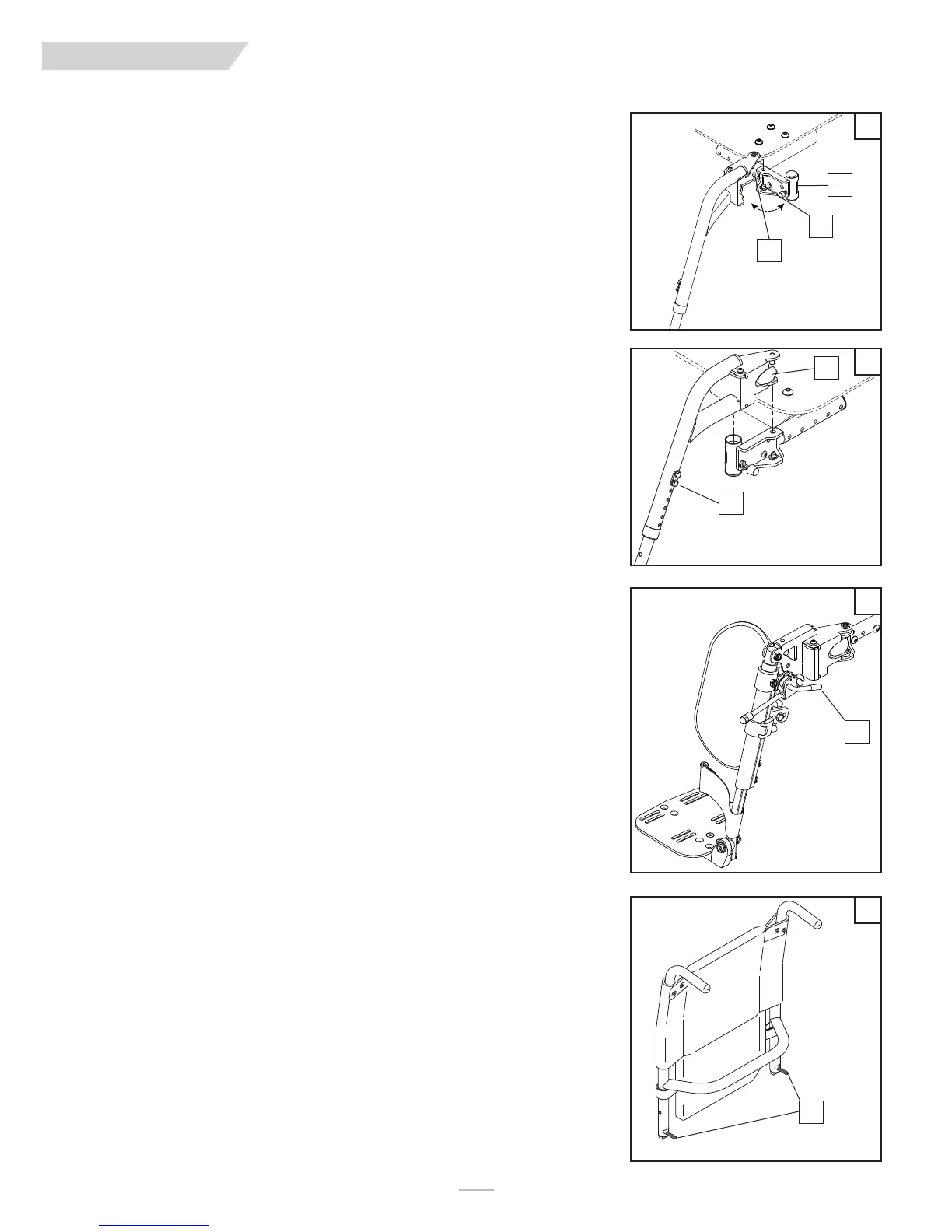

1. Installation (Fig.ure15)
a. Place swing-away pivot pin (E) into the locating hole (F) on top of the hanger mount
with the footrest facing outward from frame.
b. Rotate the footrest inward until latch plate locks (G) into place on locking bolt.
2. Removal (Figure 16)
a. To remove footrest, press quick-release lever (H).
b. Rotate footrest outward and lift
3. Height Adjustment (Figure 16)
a. Remove both bolts (I) in the hanger frame tube.
b. Reposition footrest height.
c. Re-tighten all bolts (I).
D. ELEVATING LEGREST
(Optional)
1. Installation
To install or remove Elevating Legrest (ELR) see instructions for Swing-away Footrest installa-
tion.
2. Adjustment (Figure 17)
a. To raise legrest, lift to desired position. Legrest will automatically lock in place.
b. To lower legrest, while seated in chair, first lift slightly then press release lever (J)
down and lower legrest to desired position.
E. FOLDING BACKREST
(optional) (Figure 18)
1. Upright Positioning
a. Lift backrest to upright position so that latch handles (K) lock into place.
b. Backrest is ready for use.
2. Folding Backrest
a. Lift and turn backrest latch handles (K) inward
or outward.
b. Fold backrest forward.
WARNING
Backrest latches must be locked into place before operating wheelchair.
