119832 Rev. B
23
ENGLISH

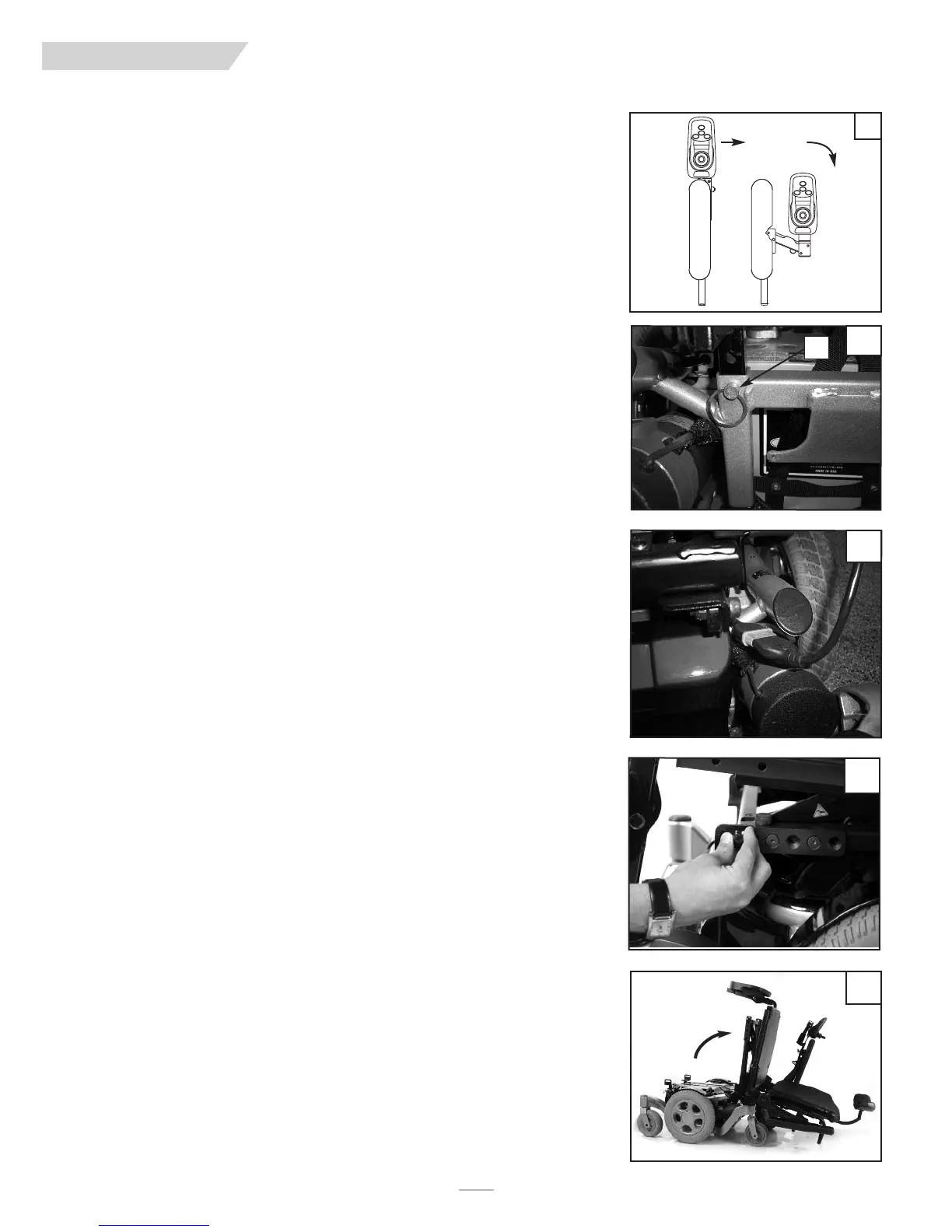

L JOYSTICK RETRACTABLE MOUNT
(Optional) (Fig. 35)
The joystick is mounted with a mechanism which allows the control to be locked in a for-
ward or retracted position using magnets.
Adjustment
a. To retract the joystick, push outward on the inside of joystick.
b. Push the joystick away from front of armrest until it locks into retracted position.
c. To return to forward position, push the joystick forward until it locks into place.
M ASAP II SEATING ADJUSTMENT
Please refer to the Service Manual for details on how to adjust the seat depth, seat width,
armrest height, and backrest angle.
N. SEAT HEIGHT ADJUSTMENT
(Figure 36,37)
1. Remove seat (See Section O. Seat Removal).
2. Remove the hardware and lockout pin (A) from all four seat mount posts.
3. Select the desired seat height.
4. To allow for 3° pretilt, rear seat mount should never be more than
one position lower than the front.
5. Reinsert the hardware.
WARNING
Ensure both front seat posts are positioned to the same height. Rear seat posts should
also be set to the same height.
O. SEAT REMOVAL
Remove Seat
a. Disconnect the joystick power cable in the rear of the chair. (Figure 37)
b. Remove the hardware that attaches the seat to the front seat posts. (Figure 38)
c. Tilt the seat back to allow access to the battery compartment (Figure 39).
WARNING
When replacing the seat into the mounts, ensure you do not pinch your fingers.
WARNING
Always replace the safety lock-out pin (Figure 35) to prevent inadvertent release of the
seat.
3
7
3
6
35
3
8
39
VIII.
A
