Footplate angle adjustable

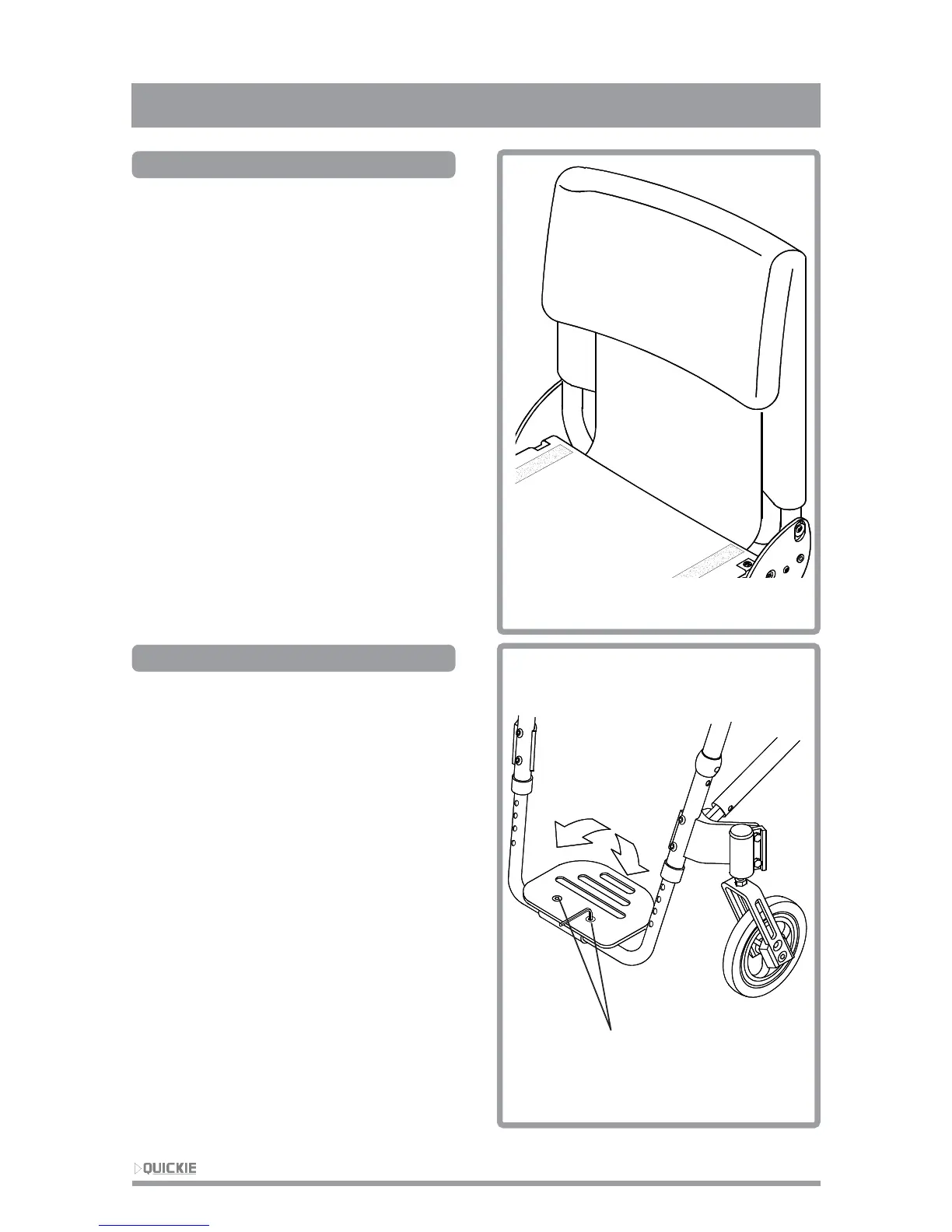

To adjust the angle of the footplate
(Fig. 24) loosen the retaining
screws (1) as shown, using a 5mm
Allen key, sufficiently to allow the
footplate to be rotated to the
desired position. Tighten to 7-12Nm
torque.
Chair adjustments
Fig. 24
1
Backrest
An angle and height adjustable
backrest is shown in Fig. 23.
Fig. 23
