Quickie Salsa M User Manual
4
of 1
of 1 rating
84 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
28
SA
LSA
/SA
LSA M
Rev
.5.0

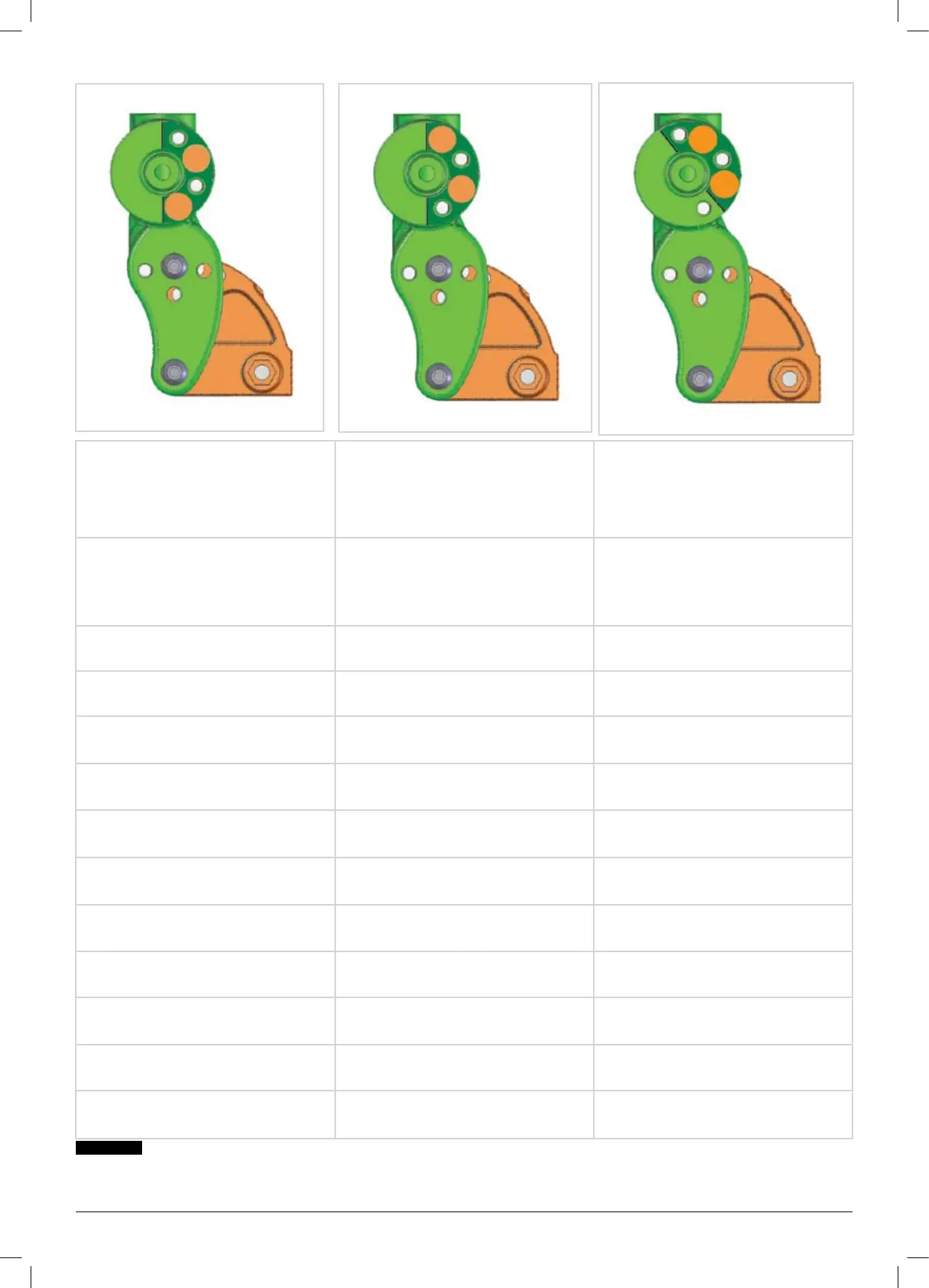

POSITION A
POSITION B
POSITION C
STANDARD
CONFIGURATION
CHART
BACKREST
ANGLE
(Degrees)
ARMREST HEIGHT
(mm)
SETTING RING POSITION
-4
305 - 254
A
-4
252 - 229
B
0
305 - 254
A
0
252 - 229
B
4
305 - 267
A
4
279 - 229
B
8
305 - 229
B
12
305 - 229
B
12
248 - 229
C
16
305 - 254
B
16
260 - 229
C
Fig. 5.35
A
B
C
27
29
Table of Contents
Default Chapter
3
Table of Contents
3
1 Your Wheelchair
7
2 How to Use this Manual
7
Introduction
7
Guarantee
7
Warranty Conditions
7
3 Label Explantation / Word Definitions
8
Definitions of Words Used in this Manual
8
Label Explanations
9
4 General Safety Warning and User Tips
11
General Warnings
11
Features and Options
11
Kerbs
11
Routine Service
11
Brake Release
11
EMC - Radio Transmitting Devices
12
Emergency Braking
12
Sharp Turns
12
Batteries
12
Tyres
12
Weight Limit
13
Wheelchair Motors
13
Hot Surfaces
13
Wheelchair Range
13
Road Use
13
Adverse Conditions
14
Ramps
14
Transfer to and from the Chair
14
Lift and Tilt Modules
14
Anti-Tips
15
Use on a Slope
15
Using a Vehicle Mounted Passenger Lift
15
Creep Mode
16
Stability of Your Wheelchair
16
Wheels
16
Rear View Mirror
17
Crutch Holder
17
Lights and Indicators
17
Swing Away Tray
17
Using a Kerb Climber
17
Lap Belt (Standard Seat)
19
Lap Strap Rehab Seat
20
VR2 Controller (Fig. 4.21)
21
5 Preparing Your Wheelchair for Use
21
Handling the Wheelchair
21
Preparation for Transportation or Storage
21
Re-Assembling
22
Brake Release
22
Drive Wheel Suspension Salsa
24
Control Joystick Unit Position
24
Getting Ready to Drive
24
Standard Armrests
25
Leg Rests
30
6 Seating
34
Firm Seat Board
34
Seat Cushions
34
Removable Seat Covers
34
Backrest Upholstery
34
JAY Backrests
34
Manual Angle Adjustment of the Rehab Fixed Back
34
Standard Seat Width Adjustment
34
Rehab Seat Depth
35
Standard Seat Height Adjustment
35
Standard Seat Depth Adjustment
36
Backrest Angle Adjustment
36
Back Height Adjustment
37
Manual Adjustable Backrest (Standard Seat)
39
Manual Setting of the Seat Angle on the SALSA
39
Manual Adjustable Backrest (Manual Recline, Rehab)
40
JAY Backrests
40
Headrest
40
Powered Seating
41
7 Control System
43
R-Net Control System Information
43
VR2 Control System Information
43
Vr2-L
46
VR2 Dual Control Unit
47
8 Troubleshooting Using the VR2
49
9 Controller Mounts
51
General Warnings
51
Attendant Control
51
Parallel Swing-Away Control
51
Centre Bar Mount Control (R-Net)
52
Tray Mount Control (R-Net)
52
Swing-Away Tray Mounted Centre Control (R-Net)
52
Forus Control (R-Net)
52
Emergency Stop Button
53
Powered Swing Away Arm (R-Net)
53
10 Speciality Controls
54
Proximity Head Array
54
Driving with the Head Array (Fig 10.1)
54
Proportional Head Control
54
Sip and Puff Control and Buddy Buttons
55
HMC Mini Joystick as a Chin Control or Hand Control
55
Proportional Chin Control (Fig.11.8)
55
Micro Pilot Joystick
55
11 Batteries and Charging
56
Batteries Salsa (Fig. 11.1 - 11.5)
56
Batteries Salsa M (Fig. 11.6 - 11.12)
57
Safety Cut-Outs
58
General Battery Information
58
Maintenance Free Batteries
58
Battery Care
58
Maintenance Free Battery Care Plan
58
General Charger Information
59
Charger Safety Features
59
Connecting the Charger and Charging
59
Charger Safety and Caution Notes
59
The Range of Your Vehicle
60
Common Battery Statements
60
Battery Warranty
61
12 Transportation
62
Transportation Warnings
62
Occupant Restraint Instructions
63
Special Shipping Requirements
63
Crash Testing on the SALSA, All Models
64
The Tie down Label and Placement
64
Securing the Wheelchair into the Vehicle
65
13 Maintenance and Cleaning
66
Tyre Maintenance and Pressures
66
Tyre Wear
66
Drive Wheel Tyre Repair
66
Removing the Castor Wheel
68
Cleaning Your Wheelchair
69
Inspection of the Upholstery/Seating
69
Cleaning Seating
69
Cleaning Controls
70
Lighting Bulb Exchange Procedure
70
Electrical Connections
70
How to Connect the Cables to the Batteries
70
Controller Access
73
Storage
73
Authorised Sunrise Medical Service Agents
73
Recommended Maintenance Routines
74
Performance Checks
75
14 Specification Sheets
76
15 Service History
80
16 Disposal
80
17 SALSA - SALSA M Battery Wiring Diagram
82
