10. Retighten the upholstery straps, (Fig.6.26).
11. Reattach the upholstery cover, (Fig.6.27).
6.13 Manual adjustable backrest (Standard seat)
For depth adjustment see section 6.8.
To recline the backrest angle:
Pull the lever at the top of the backrest which operates •
the gas strut.
Hold the lever and adjust the back angle required. •
If you release the lever, the angle will stay in the •
adjusted position.
If you want to adjust the backrest into the upright •
position, you might need to support the upward
motion (Fig.6.28).
6.14 Manual setting of the seat angle on the SALSA
To set the seat angle, release the bolt fixing the “Banana”
bracket between the seat interface module and the seat
packer module. Set the seat angle at 0°, 3° or 6° and
9°, then replace and re tighten the bolt between the seat
interface module and the seat packer module. (Fig.6.29).

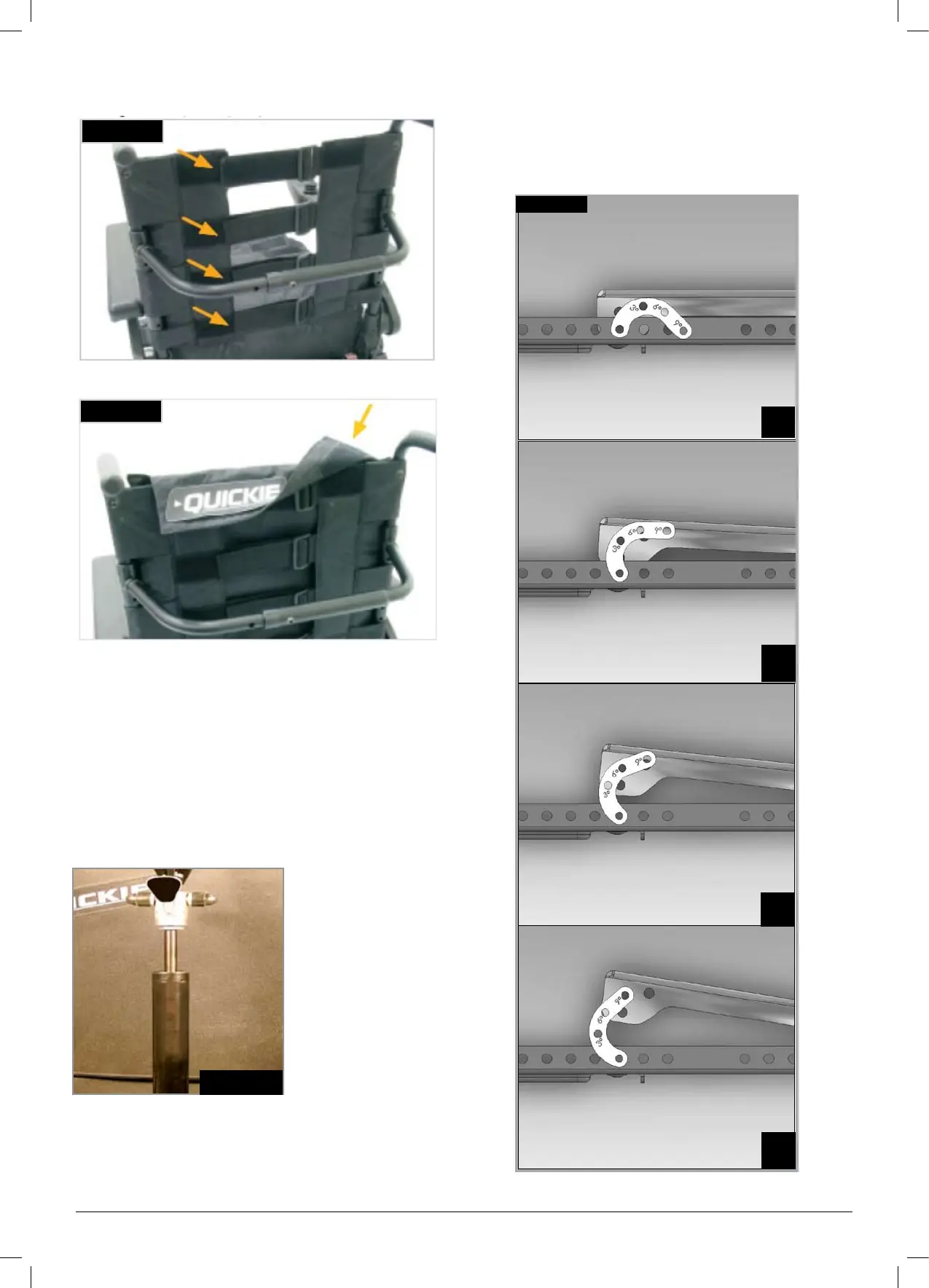

Fig. 6.27
Fig. 6.26
Fig. 6.28
6°
9°
0°
3°
Fig. 6.29
