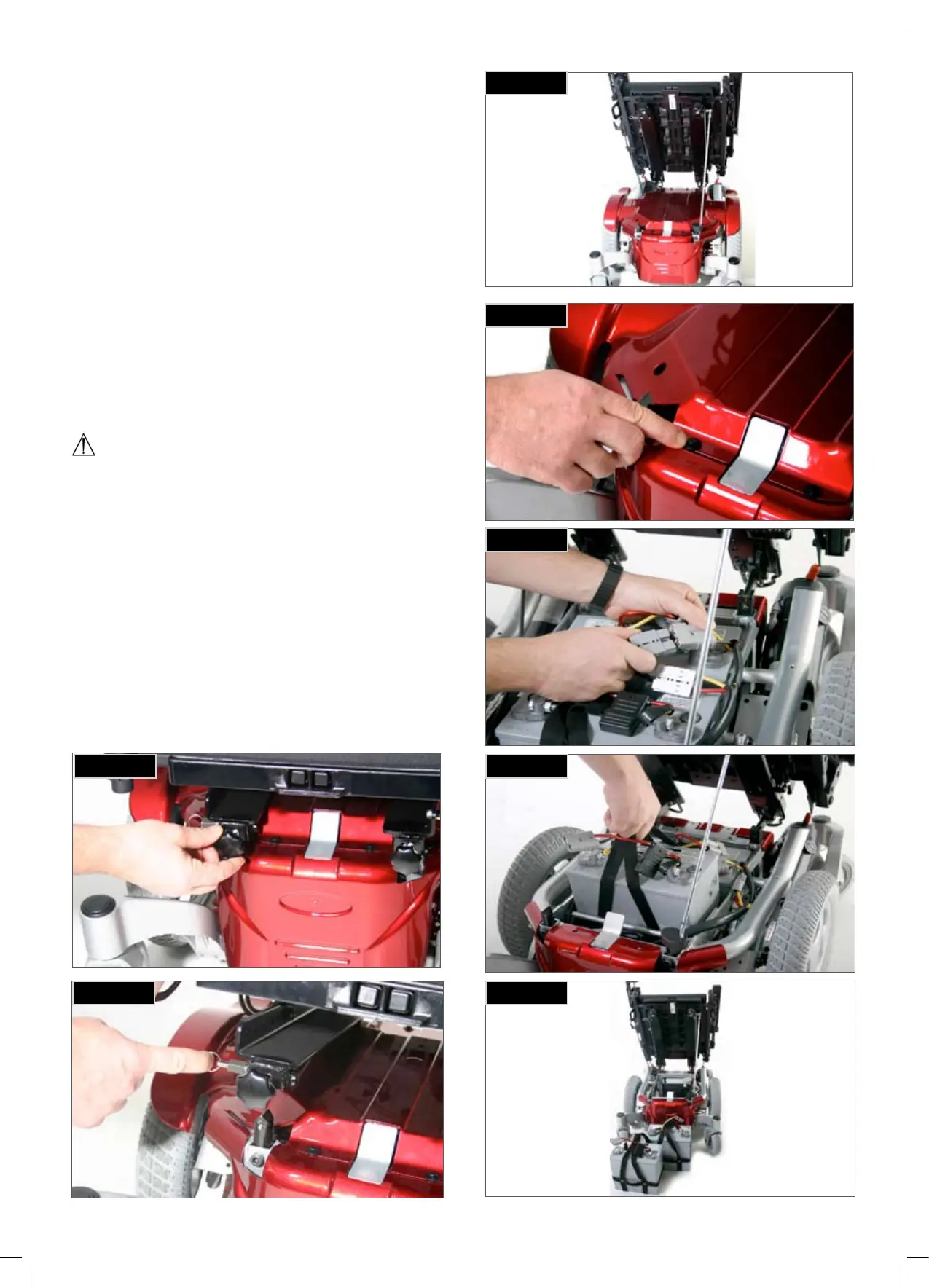

11.2 Batteries Salsa M (Fig. 11.6 - 11.12)
The batteries are contained within the drive unit located
under the battery shroud.
To remove the batteries:
Release the two handle screws under the front of the •
seat frame that connect the seat frame with the seat
module interface.
Release and hold the safety locking pin. •
Flip the seat frame backwards and secure it with the •
safety bar, (like the bonnet of a car).
Ensure the plastic cap is pushed over the tube to •
secure the safety bar.
Lift off the battery lid. •
Disconnect the 2 pin Anderson connectors from each •
battery.
There are straps available on each battery where they •
can be lifted out with the front battery being removed
first.
To fit the batteries please proceed in the opposite •
way.
WARNING!
The plastic cap should always be pushed over the tube
when the safety bar is used.
Fig.11.8
Fig.11.9
Fig.11.10
Fig.11.11
Fig.11.12
Fig.11.6
Fig.11.7
