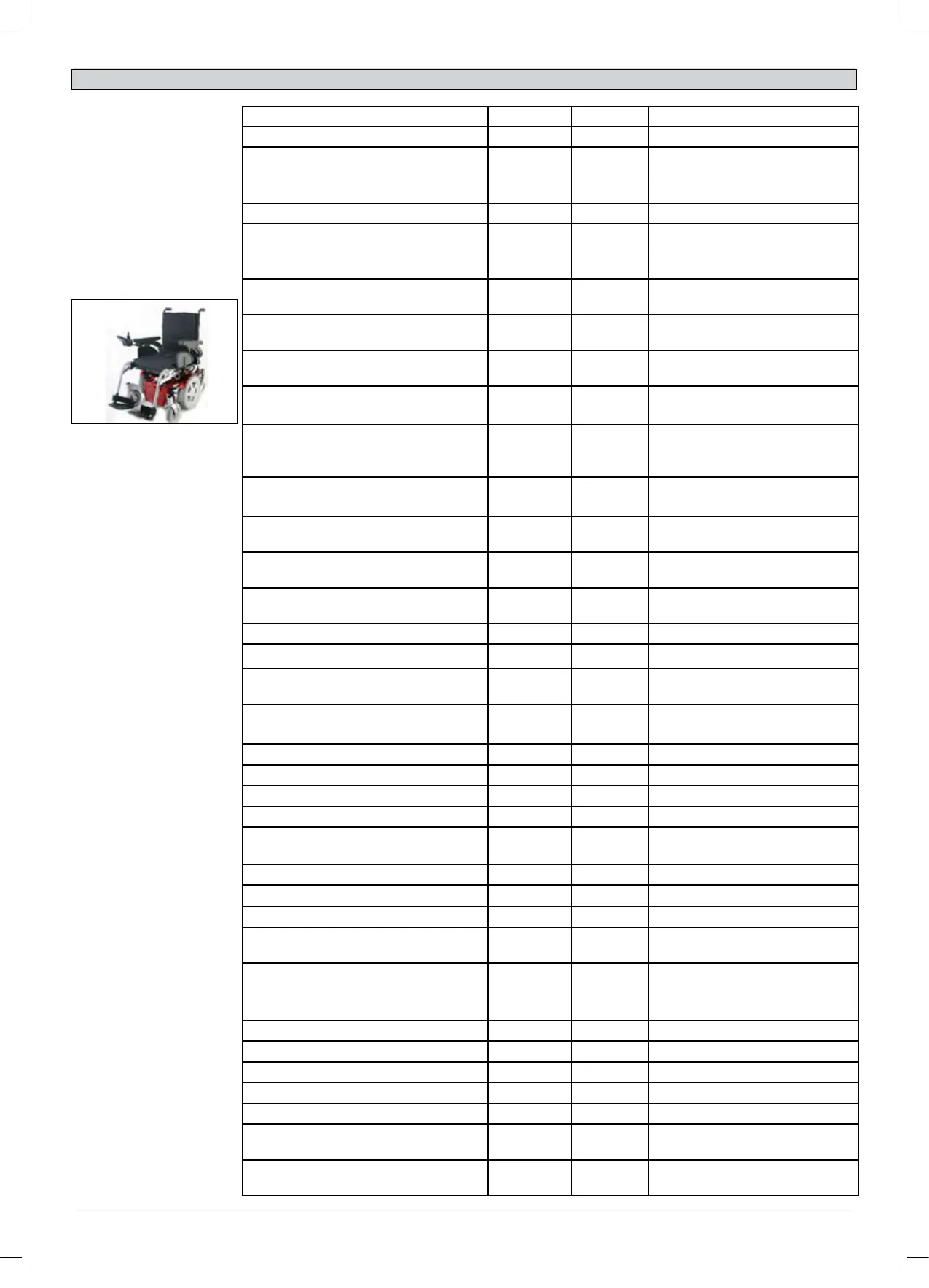

Quickie Salsa User Manual

SALSA/SALSA M 77
Rev.5.0
Model: Quickie Salsa M (MWD)
Maximum occupant mass
(test dummy mass):
140 kg
The wheelchair Quickie
Salsa conforms to the
following standards:
a) requirements and
test methods for static,
impact and fatigue
strengths
(ISO 7176-8)
b) power and
control systems for
electric wheelchairs
requirements and test
methods (ISO 7176-14)
c) climatic test in
accordance with ISO
7176 -9
d) requirements for
resistance to ignition in
accordance with
ISO 7176-16
e) the product is
specified as a Class B
power chair
ISO7176-15 Min. Max. Comments
Overall length (with legrest) - 1150 mm with 70° hanger
Overall width 600 mm 660 mm max. width with seat width adjusted
to 51 cm
Total mass (w. batteries) 113 kg 145 kg
Mass of the heaviest part - 98 kg Chair with all no tool removal parts
taken off
Static stability downhill - 17° worst case 41 cm deep seat, 0° tilt,
-4° recline
Static stability uphill - 9.5° worst case 51 cm deep seat, 29°
tilt, 16° recline
Static stability sideways - 13.9° worst case 41 cm deep seat, 0° tilt,
0° recline
Energy consumption (max. range) - 26 km
Dynamic stability uphill 8 ° 9° tilt/16° recline &max. seat height
(not with balle)
Obstacle climbing (with kerb climber) 75 mm Forward with 6 kph motors
Max. speed forward 6 kph 10 kph 10 kph only with 10 kph motor op-
tion
Min. brake distance from max. speed 1.0 m 1.2 m 1 m for 6 kph motor, 1.2 m for 10
kph motor
Seat plane angle -5° 30° -5° only with MBL tilt + additional
brackets
Effective seat depth 406 mm 508 mm
Effective seat width 394 mm 496 mm
Seat surface height at front edge 470 mm - set 0° tilt, lowest seat height and no
modules
Backrest angle -4° 16° adjustable in 4° steps with tools
Backrest height 400 mm 500 mm
Footrest to seat distance 335 mm 610 mm with 70° hanger
Leg to seat surface angle 110° - with 70° hanger
Armrest to seat distance 245 mm - adjustable with tools
Front location of armrest structure 310 mm 420 mm
Min. turning radius 670 mm - with 70° hanger
Nominal battery voltage - 24V
Battery cut-off voltage - 16V for 255 seconds
Battery fusible links - - 150A in line fuse on each battery
Quickie Direct Actuator Control Box
fusible link
- - 15A blade fuse located on AUX
supply of power loom
Mass of the test dummy - 140 kg
EN 12184 Min. Max. Comments
Max. kerb height - 75 mm
Ground clearance - 40 mm
Turning diameter 1000 mm 1150 mm
Speed control operation force - 2.2N R-Net
2.4N VR2
Direction control operation force - 1.7N R-Net
1.9N VR2
NOTE: Salsa M is also
manufactured in the UK:
Sunrise Medical
Thorns Road
Brierley Hill
West Midlands
DY5 2LD
