Quickie Tango 19

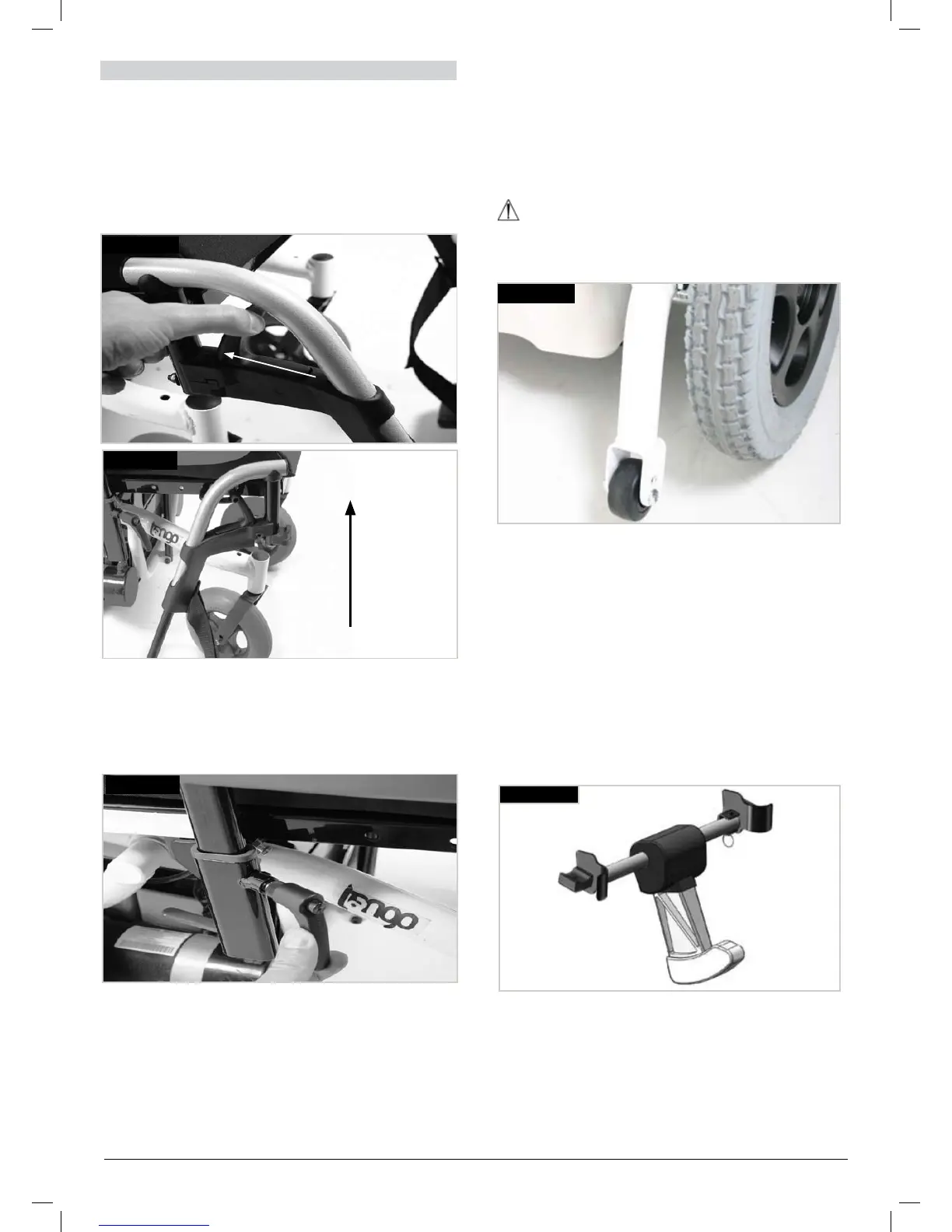

5.0 Assembly:
5.1. Footrest (Fig. 5.0-5.1):
The footrests can be swung away by pulling the release
lever back towards the seat and pushing the hanger
outwards. To remove the footrest, activate the release
lever, rotate the footrest approximately 90° outwards and
then pull it out upwards. To refit the footrest follow the
reverse procedure and the lock engages automatically
when swung inward.
5.2. Armrest (Fig. 5.2):
Slide the armrest tube into the receiver of the wheelchair
and turn the lever to the right to secure it. If you require a
different individually fixed armrest height, you can set this
using the adjusting screw on the connecting tube.
Fig.5.0
Fig.5.1
5.3. Anti-tip wheels (Fig.5.3):
These are mounted when the wheelchair leaves the
factory. The anti-tip wheel tube is welded to the motor
retaining plate of the wheelchair frame.
Note: Anti-tips wheels may interfere with kerbs when
mounting or dismounting. Follow the instructions in
sections 6.13 & 6.14.
WARNING!
Never use the wheelchair without the anti-tip wheels
fitted.
5.4. Kerb climber (Fig. 5.4):
The left and right mounting plates for the Kerb •
Climber Tube (1) are fixed onto the inside of the
frame using the mounting plates, nuts and bolts
provided.
Next fit the Kerb Climber Tube, starting on the left •
hand side and fitting the end of the tube into the
round socket on the left-hand mounting plate.
Then fit the right-hand end into the square socket on •
the right mounting plate and pass the quick release
pin through it (2).
Fig.5.3
Fig.5.4
Fig.5.2
1
1
2
