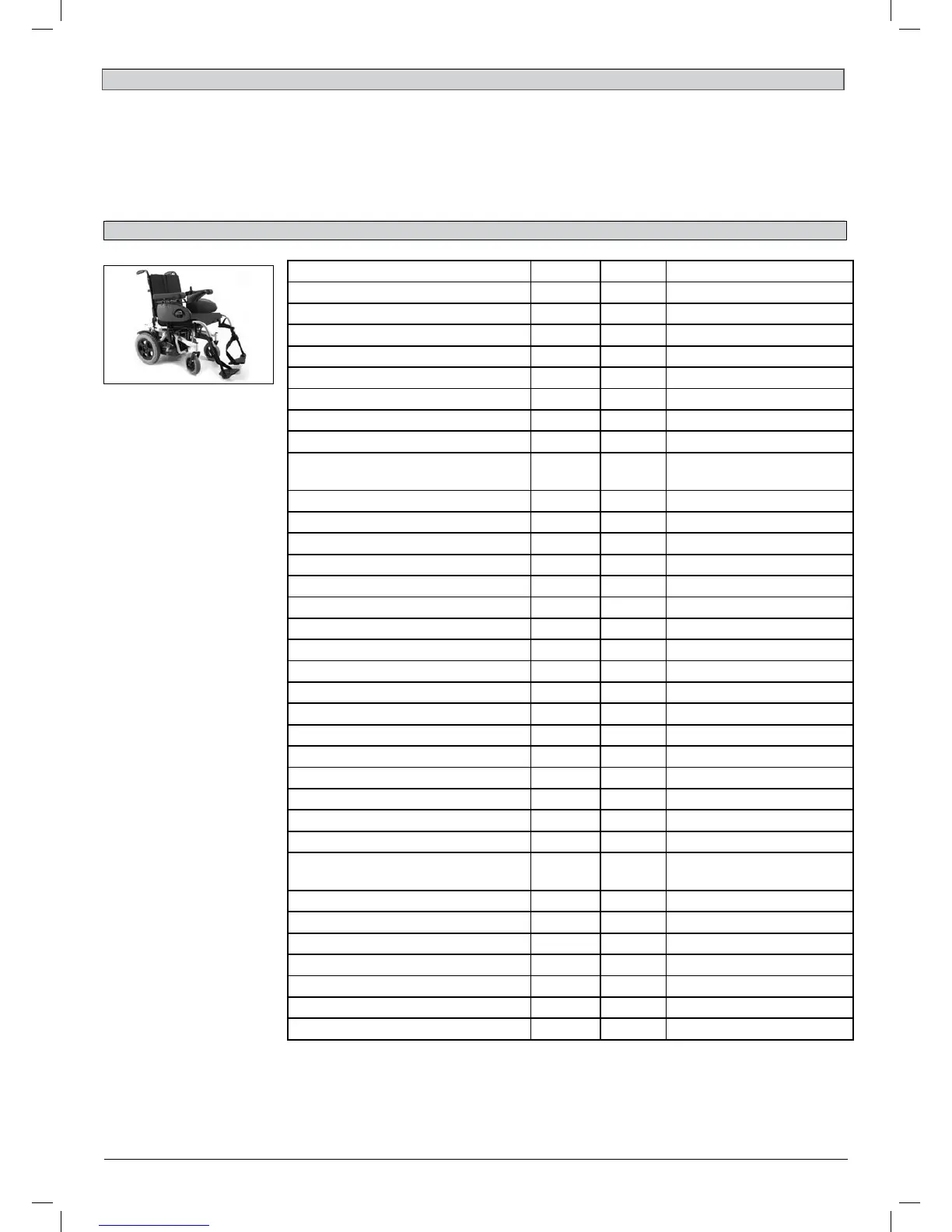

Model: Quickie Tango
14.0 Specification sheets (EN 12184 & ISO 7176-15)
Sunrise Medical S.L.
Polígono Bakiola, 41
48498 Arrankudiaga – Vizcaya
España
Tel.: +34 (0) 902142434
Fax: +34 (0) 946481575
www.sunrisemedical.com
Operating temperature: - 25°C to 50°C
Storage temperature: -40°C to 65°C
Moisture resistance: IPx4
No restrictions on humidity and air pressure
Maximum occupant mass
(test dummy mass): 125 kg
The wheelchair Quickie
Tango conforms to the
following standards:
a) requirements and test
methods for static, impact
and fatigue strengths
(ISO 7176-8)
b) power and control systems
for electric wheelchairs
requirements and test
methods (ISO 7176-14)
c) climatic test in accordance
with ISO 7176-9
d) requirements for
resistance to ignition in
accordance with
ISO 7176-16
e) the product is specified as
a Class B power chair
f) all materials used on this
product conform to EN1021
parts 1 and 2.
ISO 7176-15 MIN. MAX. COMMENTS
Overall length (Inc. Leg rest) 1070mm 110 0mm 70° hangers
Overall width 580mm 600mm (12.”-14” wheels)
Total mass (with batteries) 85kg 100kg
Mass of the heaviest part - 16.5kg Heaviest removable part
Static stability downhill - 20° 3° tilt + 3° recline
Static stability uphill - 14° 3° tilt + 3° recline
Static stability sideways - 18° 3° tilt + 3° recline
Energy consumption (max. range) - 25km 6kph motor & 100kg user
Dynamic stability uphill - 10° Max. Safe Slope = 10°
(18%)
Obstacle climbing (with kerb climber) 50mm (100mm)
Max. speed forward 6kph
Min. brake distance from max. speed - - Depends on programming
Seat plane angle (set with tools) 0° 9° 3° Increments
Effective seat depth 425mm 500mm 25mm increments
Effective seat width (400mm) 500mm (Using pads)
Seat surface height at front edge - 450mm @ 3°Seat angle
Back rest angle -3° 12° Set with tools
Back rest height 450mm 500mm 25mm increments
Footrest to seat distance 290mm 460mm
Leg to seat surface angle 110 ° -
Armrest to seat distance 270mm 355mm 7mm increments
Front location of armrest structure 370mm 390mm
Min. turning radius 900mm 70° Hanger
Nominal battery voltage 24V
Battery cut-off voltage 16V
Battery fusible links - 150A In-line fuse on each battery
Quickie direct actuator control box
fusible link
- 6.3A 5x20mm Schurter fuse
Mass of test dummy - 125kg
EN 12184 MIN. MAX. COMMENTS
Max. kerb height 50mm (100mm) (With kerb climber)
Ground clearance 80mm 90mm 12” - 14” wheels
Turning space/Reversing width 1300mm -
Speed control operation force 2N
Direction control operation force 1N
