C. ELEVATING LEGRESTS (OPTIONAL)
1. Installation
To install or remove the Elevating Legrest (ELR) see instructions
for Swing-away Footrest installa
tion.

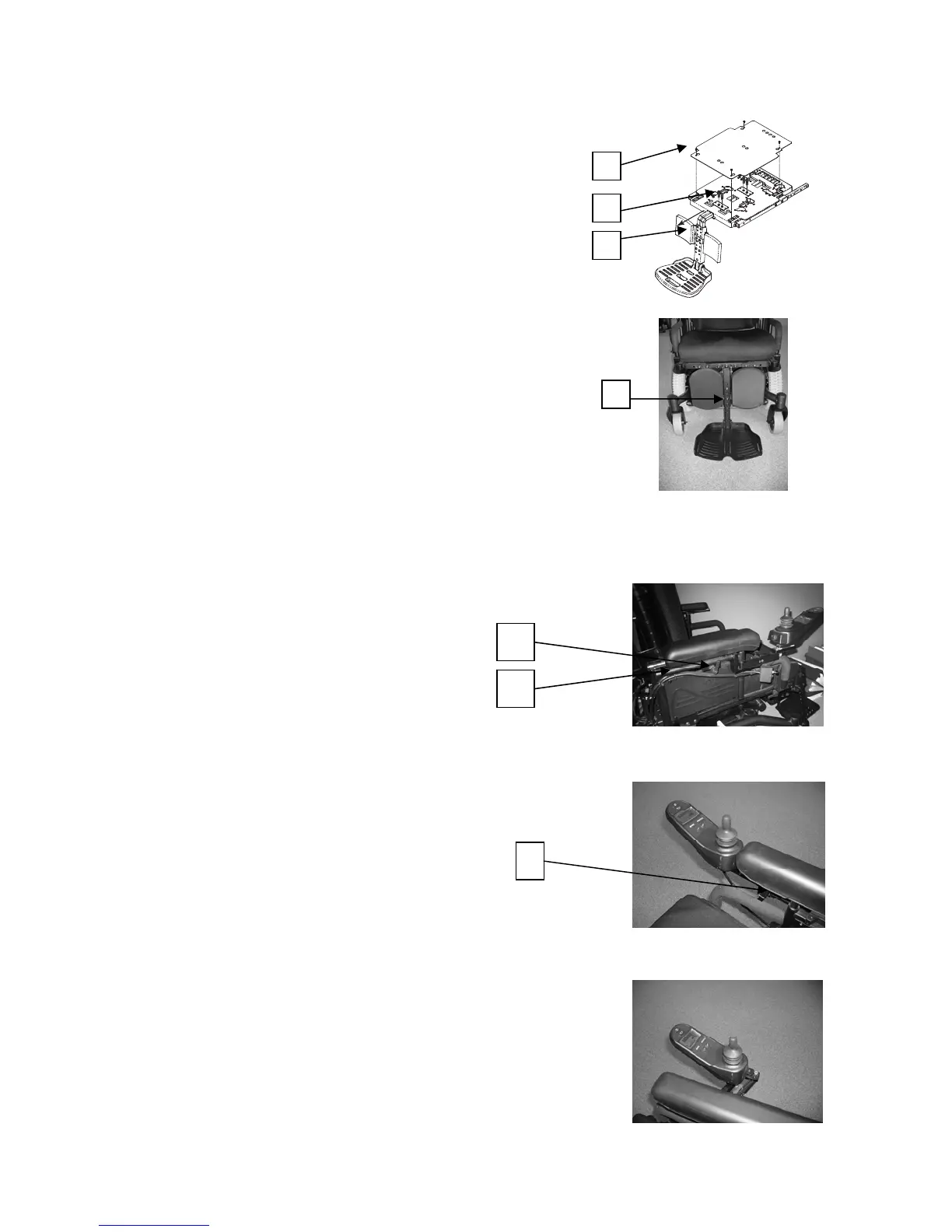

D. CENTER MOUNT HANGER ADJUSTMENT
(ASAP Seating only)
1. Removal (ASAP Seat)
a. Remove the seat pan by removing the four attachment bolts (h).
b. Remove the four bolts (i) and slide the footrest out.
2. Height Adjustment
a. Remove the two securing bolts (j).
b. Move footplate to desired height.
c. Re-install bolts (j) through desired holes.
3. Calf Pad Adjustment
a. Romove the one securing bolt (j)
b. Move calf pad to desired height.
c. Re-install bolts (j) through desired hole.
E. JOYSTICK AND ENHANCED DISPLAY
Please refer to the Penny & Giles user’s manual provided with the
information package
F. TO ADJUST THE DEPTH OF THE JOYSTICK
1. Loosen the wing-nut (k).
2. Slide the mounting bracket (tube) (l) in or out until in desired posI-
tion.
3. Retighten the wing-nut (k)
G. JOYSTICK AND ENHANCED DISPLAY SWING-AWAY
RETROACTABLE MOUNT (OPTIONAL)
1. Push to release the lever (m)
2. Continue pushing until the joystick bracket is fully retracted.
3. To bring back, pull the joystick firmly towards you until it gets back
in the locked position
h
i
j
Quickie Xplore Owner’s Manual Rev. B 15.
j
k
l
m
