Routing the Short Hydraulic Hoses
After connecting the Short Hydraulic Hoses to the Hydraulic Elbow Fitting on the Hydraulic Cylinder,
make sure to route them
under the side of the QuickJack Frame
.
⚠ CAUTION If you mistakenly route a Short Hydraulic Hose over the QuickJack Frame, the
QuickJack will not work correctly and you could damage the hose and/or cause the
Vehicle on the QuickJack to become unstable.

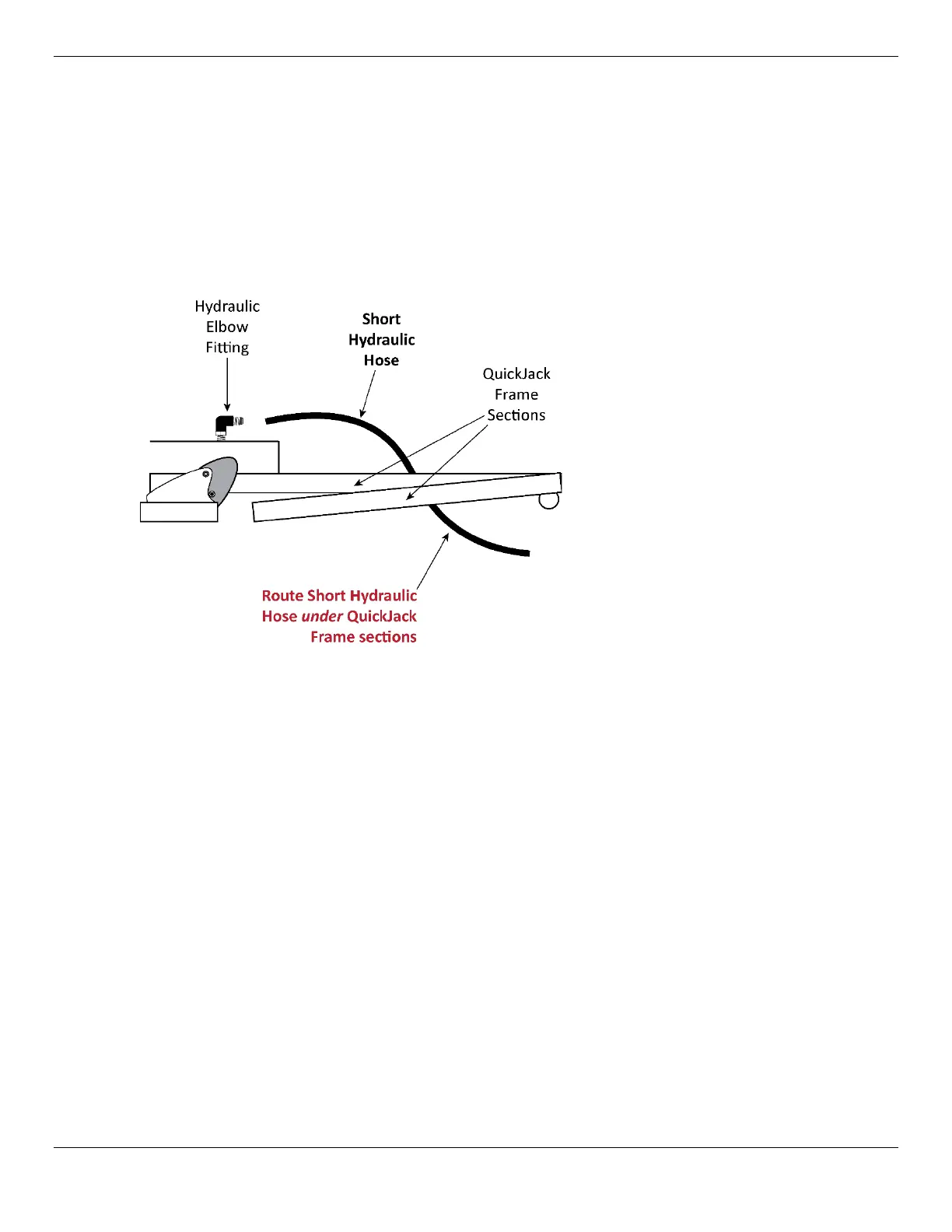

The following drawing is a side view of a QuickJack with the Short Hydraulic Hose being routed under
the QuickJack Frame sections.
Drawing not necessarily to scale. Not all components shown, some exaggerated for clarity. Hydraulic
Elbow Fitting is shown pointed up for clarity; it is not actually installed this way.
