QuickJack™ Portable Car Jack 24 P/N 5900959 — Rev. L1 — December 2020
Preparing and Connecting the Long Hydraulic Hoses

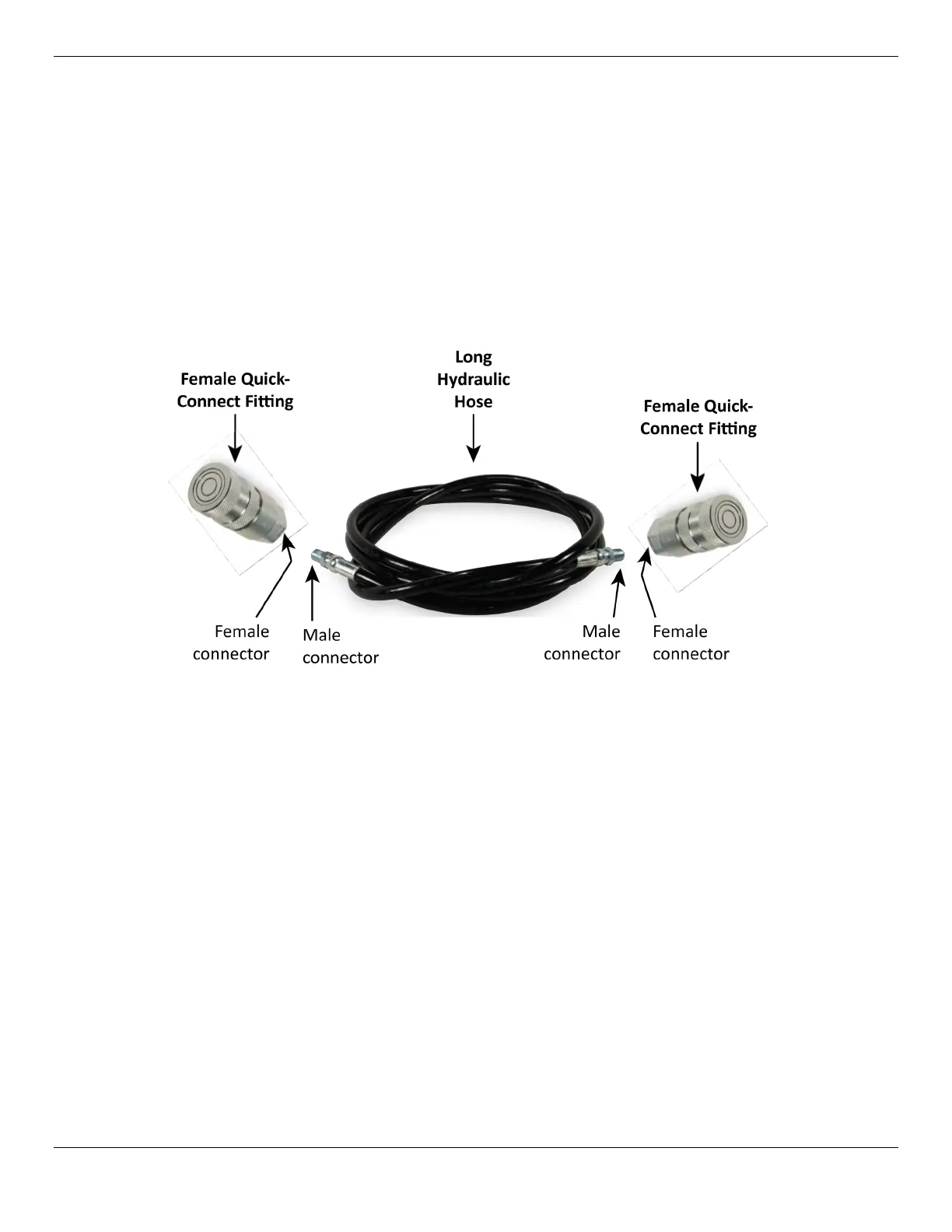

Your QuickJack comes with two Long Hydraulic Hoses (P/N 5570216):
• One end attaches to the Short Hydraulic Hose
• The other end attaches to the Power Unit
Both ends require the installation of a Female Quick-Connect Fitting (P/N 5550031).
To prepare and connect your Long Hydraulic Hoses:
1. Locate both Long Hydraulic Hoses and remove their protective caps.
2. Prepare the Threaded ends with the supplied Thread Sealant.
3. Take all four female Quick-Connect Fittings from the QuickJack Parts Bag.
4. Connect the female Quick-Connect Fittings to the male threaded connectors on both ends of both
Long Hydraulic Hoses; four connections in total.
To tighten, use one wrench to hold the Male connector in place and a second wrench on the
Female Quick-Connect Fitting to tighten it; tighten to 10 to 11 lbf-ft / 13 to 15 N-m.
