QuickJack™ Portable Car Jack 28 P/N 5900959 — Rev. L1 — December 2020

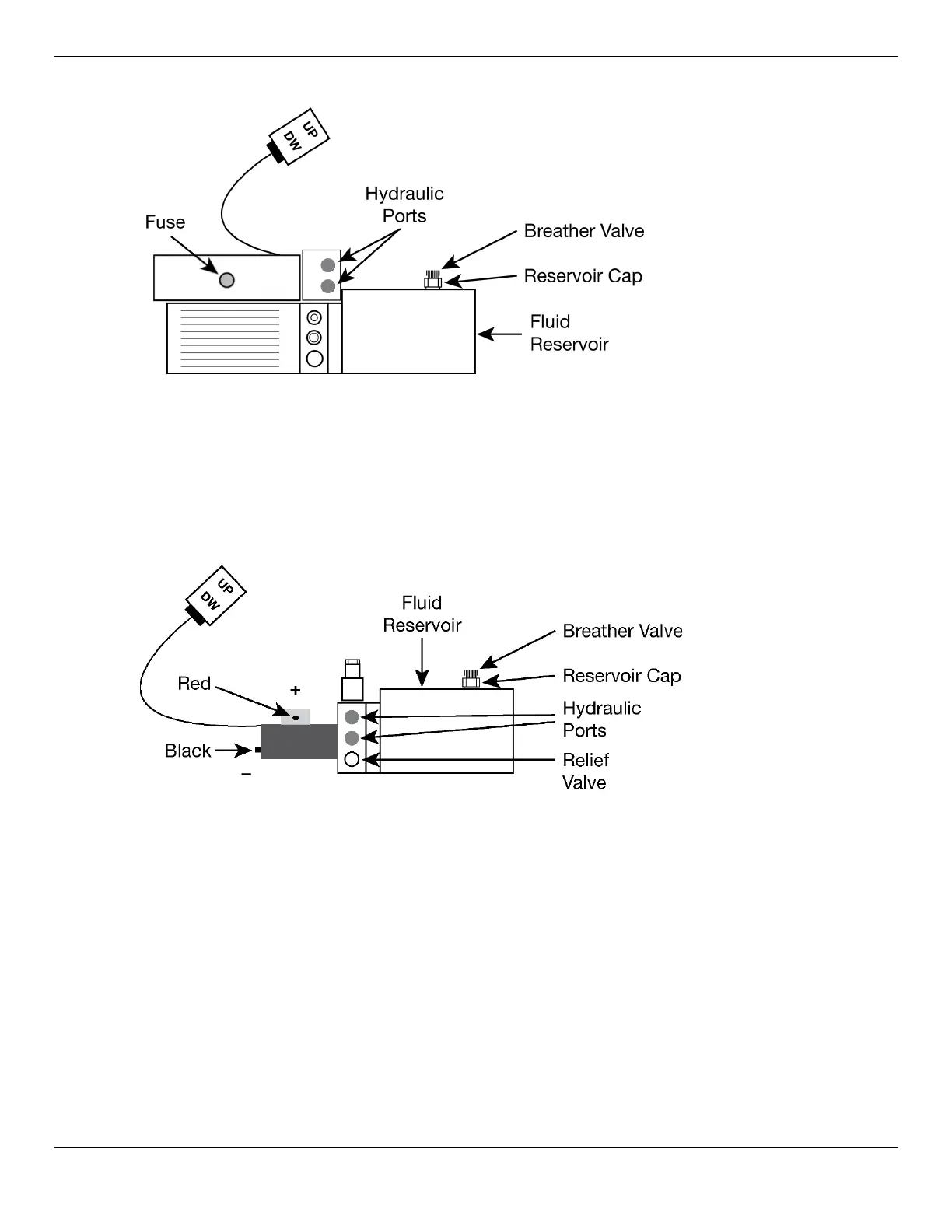

The following drawing shows the 220 VAC Power Unit for QuickJack (CE-approved).
Drawing not necessarily to scale. Some Power Units may be slightly different.
Power Sources for 12 VDC Power Units
If you are using a 12 VDC Power Unit with your QuickJack, you can connect it to a Vehicle battery.
Refer to Using the 12 VDC Power Unit for usage information.
12 VDC Power Unit
Drawing not necessarily to scale. Some Power Units may be slightly different.
Keep the following in mind:
• Connect your 12 VDC Power Unit directly to a 12-volt power source. The minimum requirement for
Jumper Cables is 7 gauge / 10 mm.
• Make sure to connect the 12 VDC
negative (black, –) source to the negative (black, –) terminal
and the 12 VDC positive (red, +) power source to the positive (red, +) terminal.
• Remove all jewelry while working with the 12 VDC Power Unit.
