Quicksilver 755OP — Electrical Systems
44

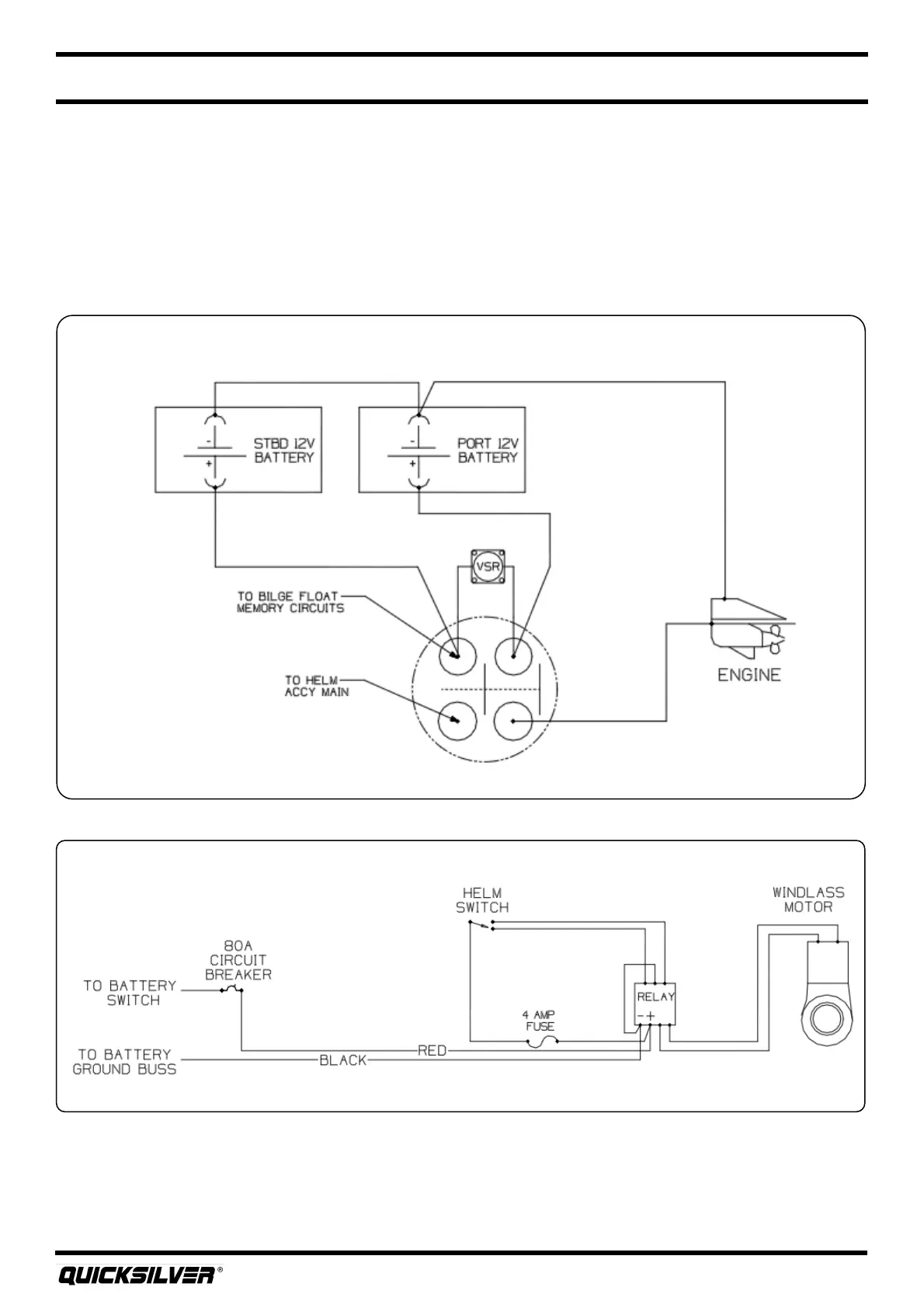

Dual Baery Schemac
Bow Windlass Schemac
6. Electrical Schemacs
This owner’s manual contains electrical schemacs and wiring harness illustraons for your boat.
These electrical schemacs were generated by the Electrical Engineering Department for technical
reference and service technicians. Quicksilver® does not recommend that you aempt to work on
the boat’s electrical system yourself. Instead, we recommend that you take your boat to your local
authorized Quicksilver® dealer for service. Quicksilver® reserves the right to change or update the
electrical system on any model at any me without noce to the consumer and is not obligated to
make any updates to units built prior to the change.
