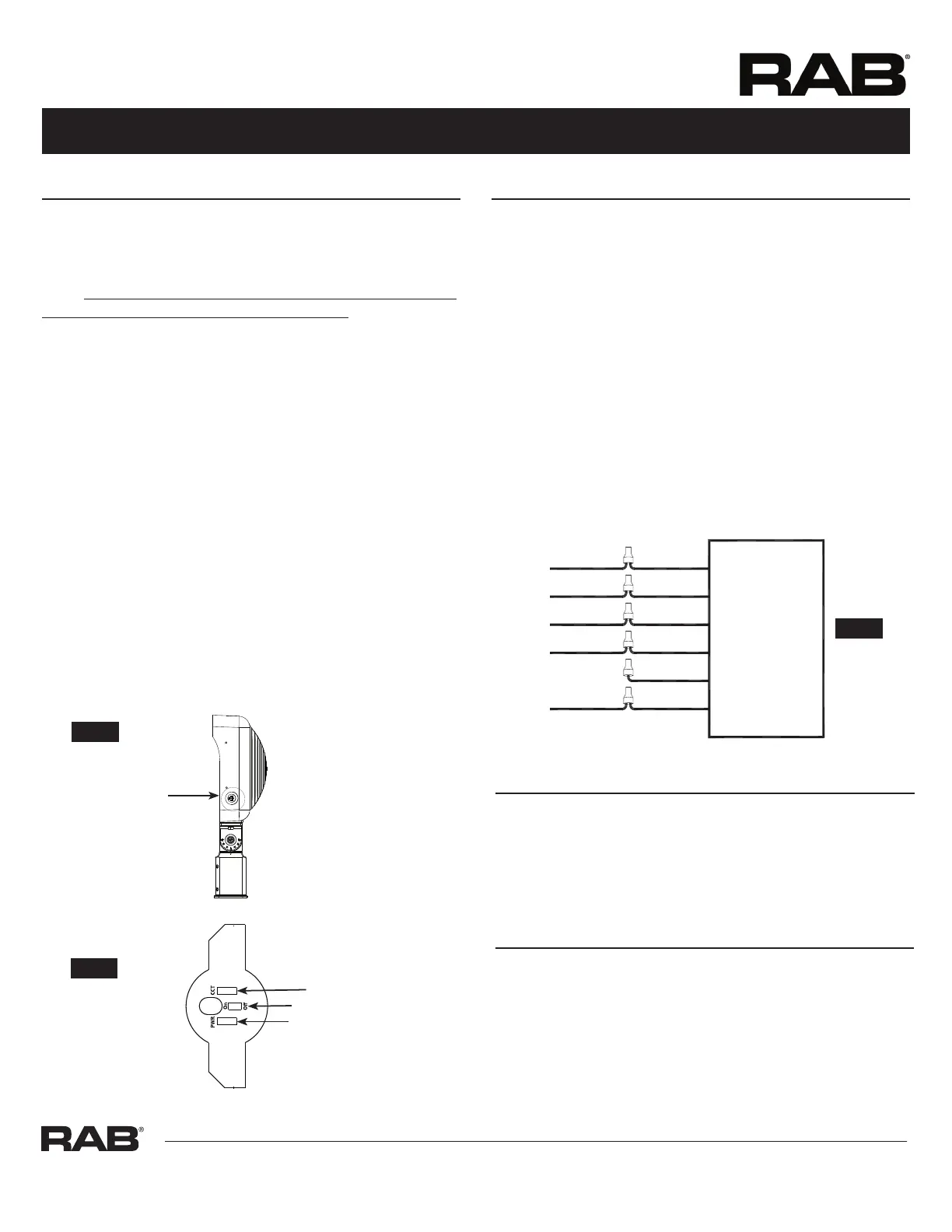

INSTRUCTIONS
X34®
LINE
COMMON
GROUND
GROUND
CAUTION: Be sure xture temperature is cool enough to touch.
Do not clean or maintain while xture is energized.
PINK
LIGHT
FIXTURE
Vaux 12V
YELLOW
GROUND
GROUND
( - ) DIM V
( + ) DIM V
COMMON
LINE BLACK
WHITE
PURPLE
X34 HO - IN - 0322
Easy Answers
rablighting.com
Visit our website for product info
Tech Help Line
Call our experts: 888 722-1000
e-mail
Answered promptly - sales@rablighting.com
Free Lighting Layouts
Answered online or by request
© 2022 RAB LIGHTING Inc.
RAB WARRANTY: RAB’s warranty is subject to all terms and conditions found at rablighting.com/warranty
Note: These instructions do not cover all details or variations in equipment nor do they
provide for every possible situation during installation, operation or maintenance.
P-100120
Photocell Operation:
Photocell factory
setting is set to the “OFF” position
(Fig 4)If the Photocell is set to the “ON” position and it is daylight, it
may take up to 60-seconds for the light to turn o .
Color Temperature (CCT) Selection:
Power (%) Selection:
(CCT)(%)
Factory Settings:
Color Temperature (CCT)Power (%)Photocell
(Fig. 4)
Selector Switches
100
75
50
5k
4k
3k
Color Temperature (CCT)
Power (%)
Photocell (on/o )
Note: For external dimming control set power switch to 100% and
turn o Photocell switch.
1.
2.
3.
