Racer UNO - 2 Installation Diagram

3

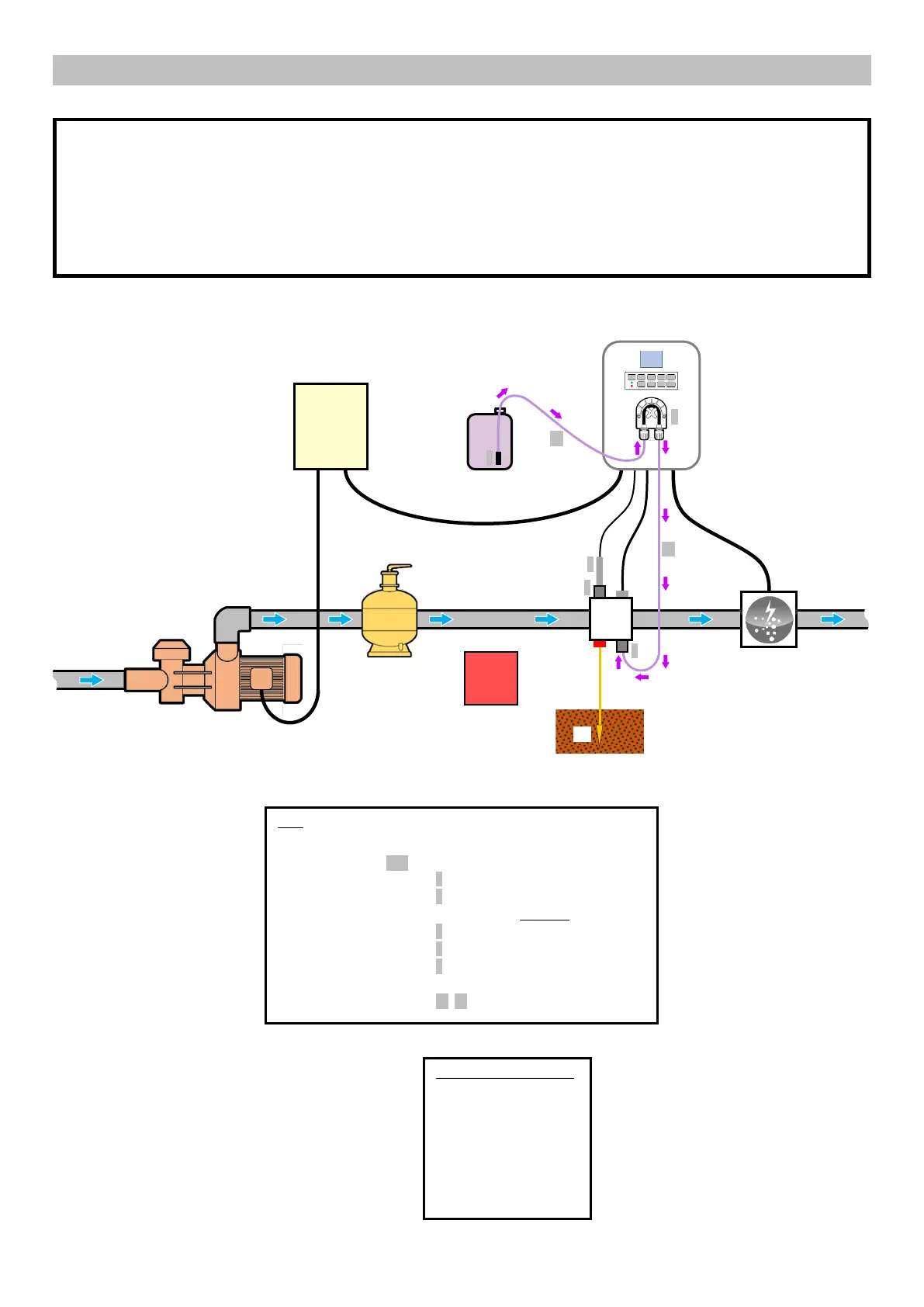

2. INSTALLATION DIAGRAM
I
• The electrical connections at cell-level must not point upwards, to avoid any deposits of water or humidity
on them.
• The pH corrector container must be installed a safe distance away from any electrical device or any other
chemicals.
4
14
4
SSS
KEY :
UNO model : white.
DUO model : white + grey.
1 : Salt / temperature / low water sensor
2 : Cell
3 : Electronics unit
4 : Filter with ballast
5 : Peristaltic pump
6 : Pool Ground (optional)
7 : Probe holder
8 : Injection connector
9 : pH probe
10 : Bracket
11, 12 : Semi-flexible tubing
8
1
7
6
16
H
13
15
2
3
17
19
5
10
9
11
12
ELEMENTS NOT SUPPLIED :
13 : Electrical power supply
14 : pH corrector container
15 : Copper cable
16 : Filter
17 : Ground rod
18 : Heat pump
19 : Filtration pump
 
18
