Raddy PT-3 Manual [EN]
4
Part B - Back Button and Power
B1: “SNOOZE/LIGHT” button
B2: “SET/MODE”
B3: “-” button
B4: “MEM” button
B5: “
ALARM
” button
B6: “+” button
B7: Power ON/OFF button
B8: Reset button
B9: Power supply socket –TYPE-C
B10: Hanging hole
B11: Support frame

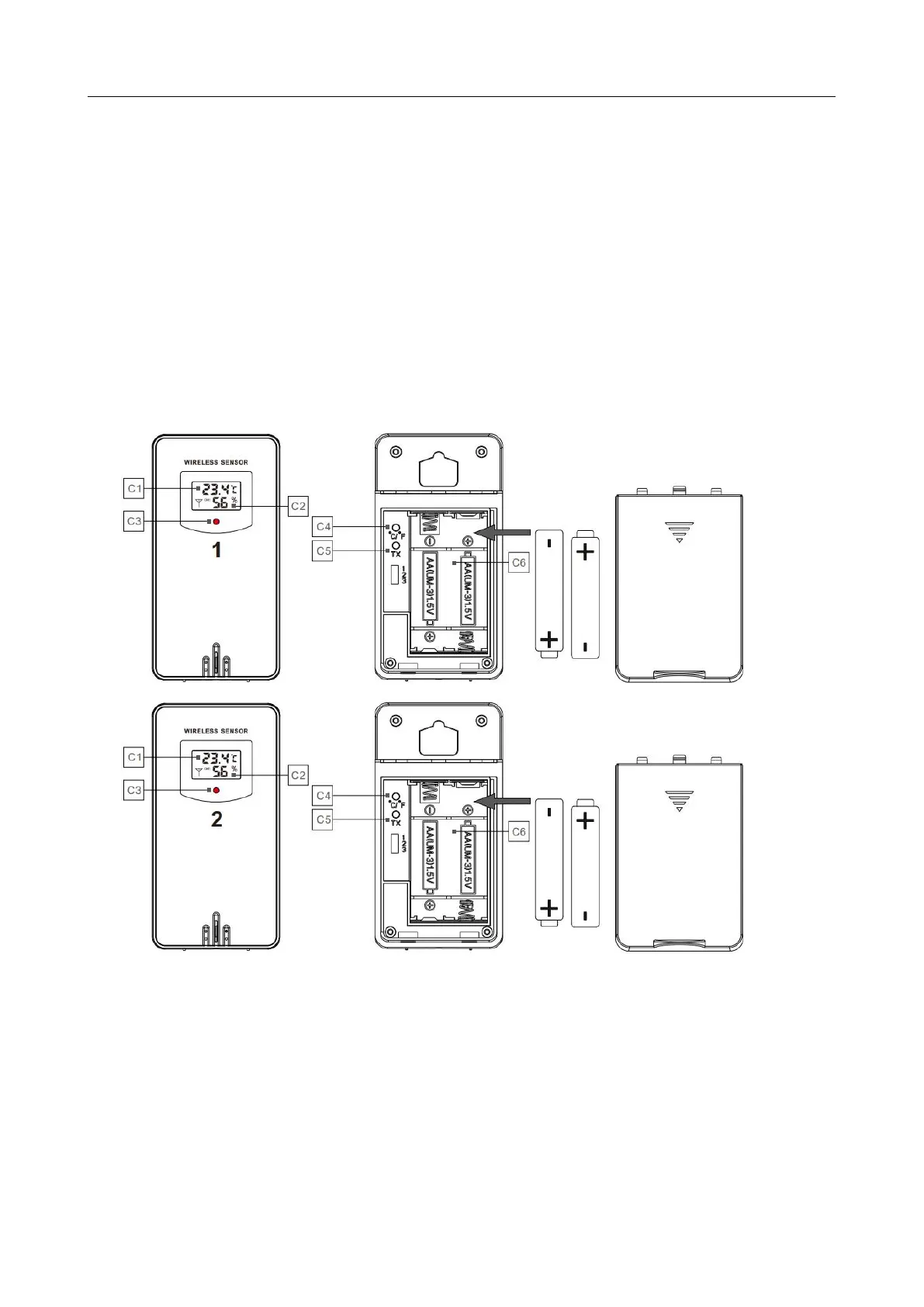

Part C –Wireless Remote Sensor:
C1: LCD display – Temperature
C2: LCD display – Humidity
C3: Transmit signal LED
C4: “°C/°F” button
C5: “TX” button
