FEATURE SET
17. A/B FOOTSWITCH: Used to toggle between channel-A and channel-B.
18. EFX ASSIGN: Three position switch sets the overdrive footswitch function for
overdrive, effects loop or both.
19. OVERDRIVE FOOTSWITCH: Activates the overdrive. Works in conjunction with
the EFX assign switch to turn on and off the overdrive, effects loop or both. The
LED illuminates when on.
20. OUTPUT: ¼” jack used to feed the artist’s on-stage bass amplifi er.
21. LOOP ON: Recessed switch bypasses the footswitch function and keeps the
effects loop on at all times.
22. TUNER: Separately buffered, dedicated tuner output is always on.
23. PHONES: 3.5mm TRS mono headphone output with level control.
24. EFX LOOP: Send & receive ¼” connections for external effects.
25. 180° (LOOP): Recessed switch used to invert the polarity of the effects loop should
one of the guitar effect pedals reverse the phase.
26. PRE-POST: Routes the balanced output before (pre) or after (post) the effects loop
and overdrive.
27. BALANCED OUT: Built-in active Radial DI to feed the PA or recording system.
28. 180° (XLR): Recessed switch reverses pins-2 and 3 at the balanced XLR output to
phase align sound with PA or reduce feedback.
29. LIFT: Recessed ground lift switch disconnects pin-1 on the XLR output to help
eliminate hum and buzz caused by ground loops.
30. 15VDC: Connection for the Radial 15VDC/400mA power supply (included).
31. CABLE CLAMP: Prevents accidental power disconnection by locking down the AC
adapter cable.

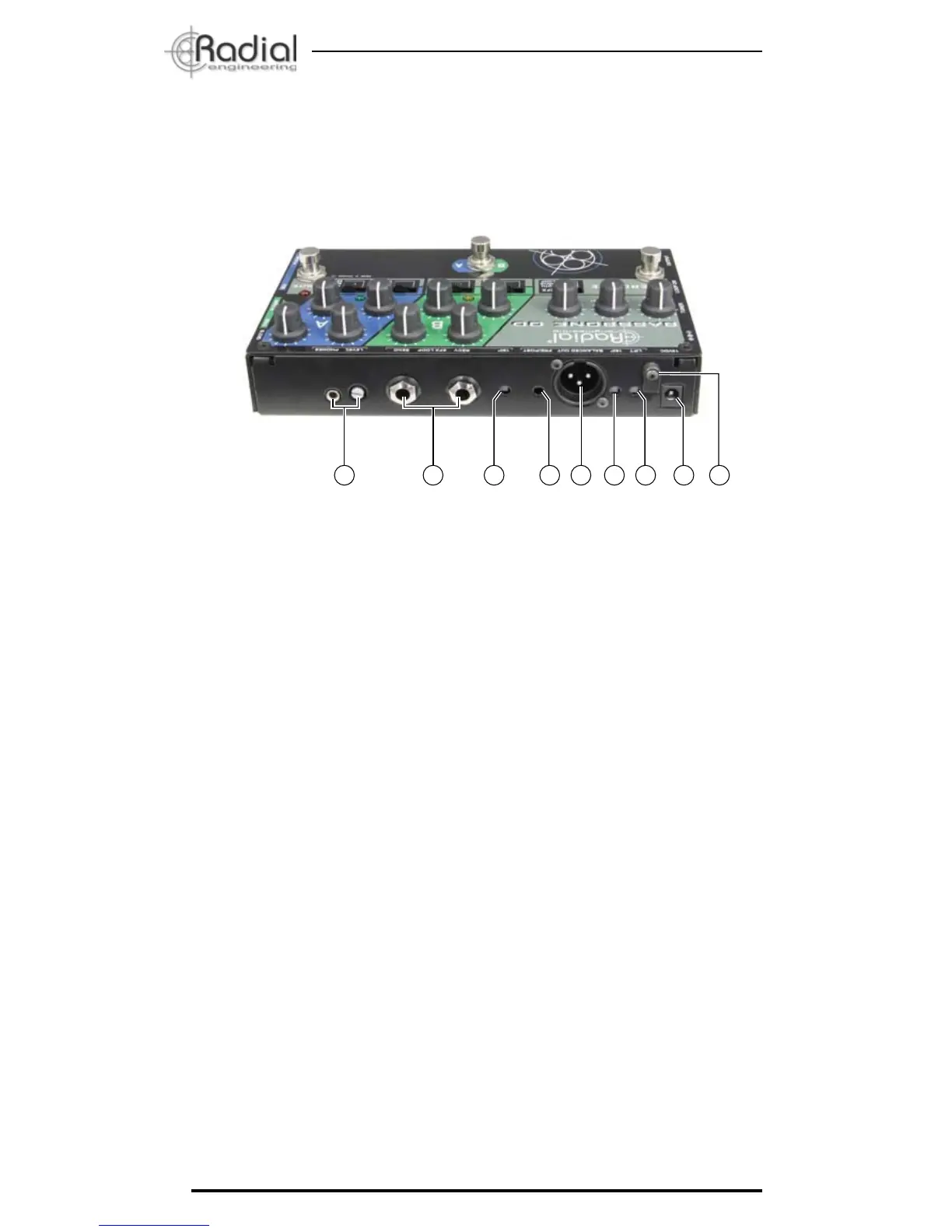

25 2826 29 30 3124 2723
4
To Next Page
