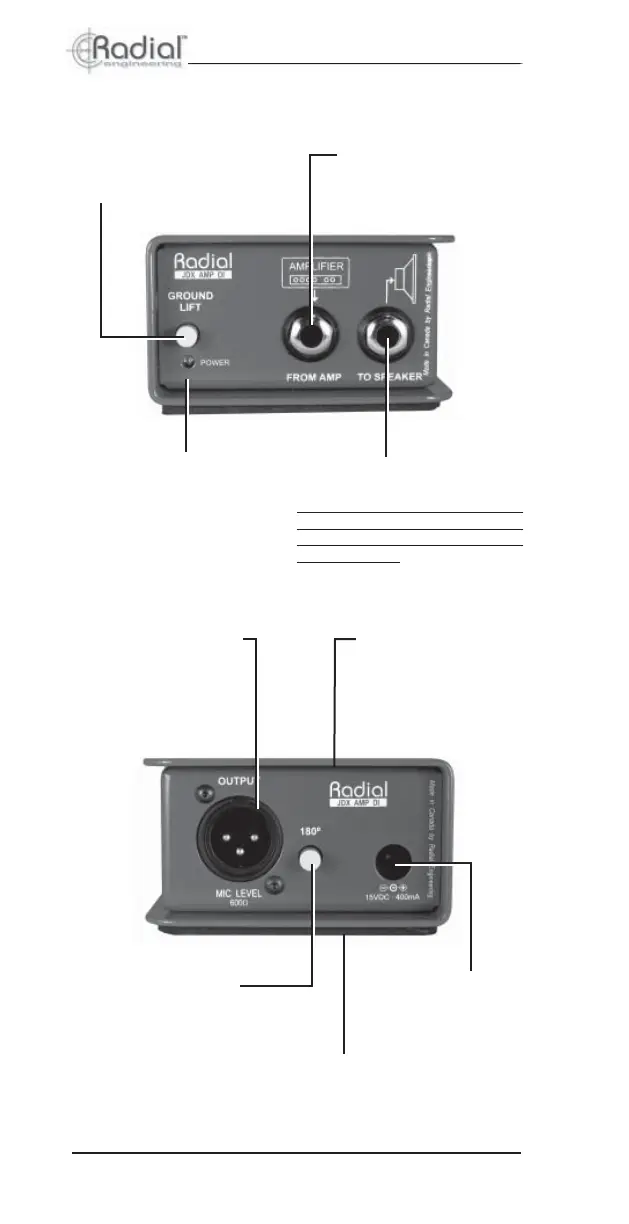

FEATURES AND FUNCTIONS
FROM AMP connection
for amplifi er output, max
300 watts.
TO SPEAKER connects your amp
to the speaker through the JDX.
Connection to a loudspeaker is
mandatory. Please read the safety
disclosure statement before con-
necting the JDX.
GROUND LIFT switch
eliminates hum and buzz
caused by ground loops.
PSU JACK connection
for the included 15 volt
DC power supply.
POWER LED lights to indi-
cate the JDX is connected
to its power supply.
XLR OUTPUT mic-level,
600 Ohms balanced XLR
output connects to your
mixing console.
POLARITY RREVERSE
for pin-2 and pin-3 at
the XLR output. Used
to correct signal polarity
problems.
BOOKEND DESIGN
creates a protective zone
for the jacks switches.
FULL BOTTOM PAD Neoprene
keeps it from sliding around and
provides isolation from electrified
amplifi er frames and handles.
