8.4 Metrics

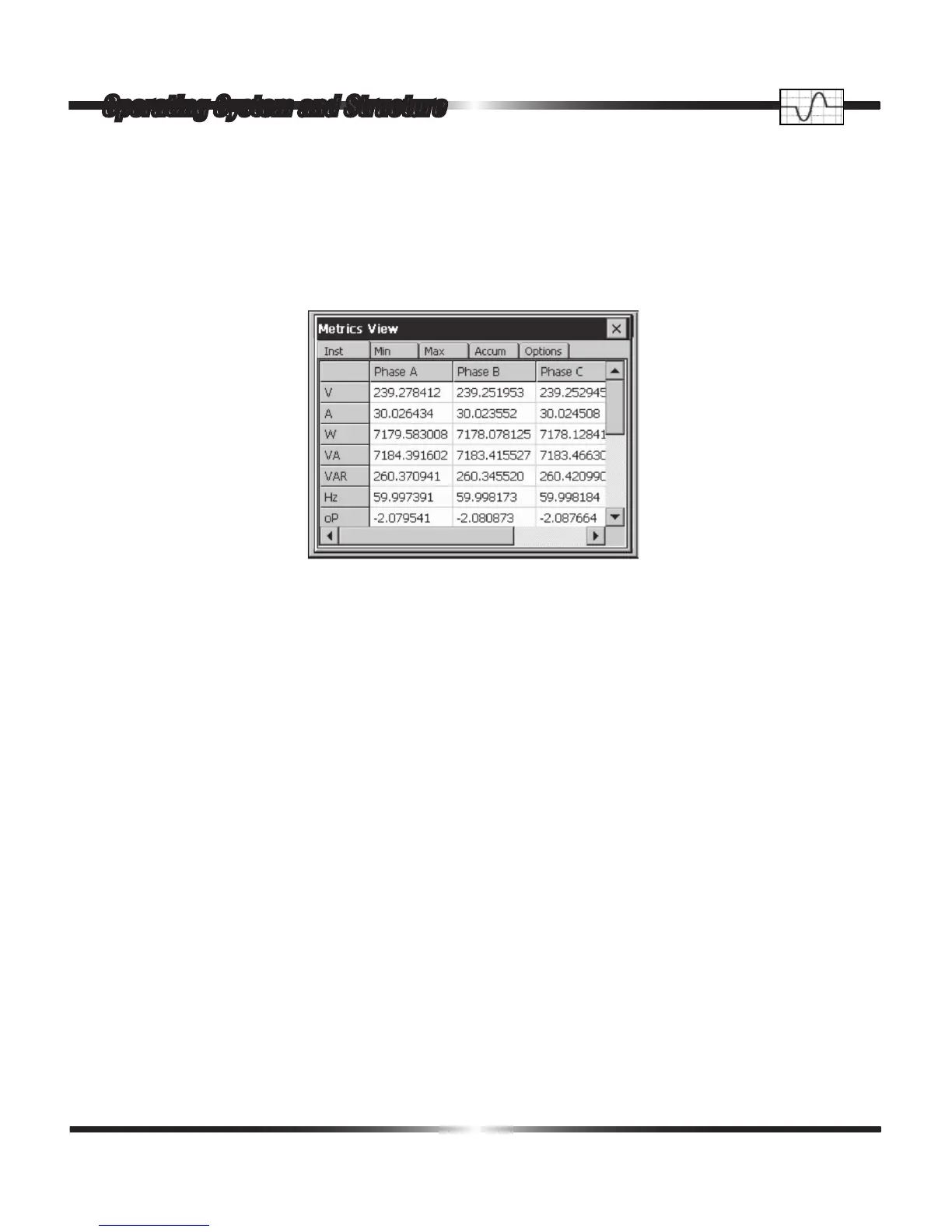

A single tap on the Metrics icon brings up the following window showing all of the measurement
functions the RD-30 model being used supports. The up/down and left/right arrows may be used
to view the various measurement parameters.
Metrics Denitions:
V Volts
A Amperes
W Watts
VA Voltamperes
VAR Voltamperes Reactive
Hz Frequency
oP Degrees Phase (phase angle between voltage and current)
PF Power Factor
ASn Analog Sense
doP Delta Phase (voltage phase relationship between phase inputs)
V Delta Volts (Delta)
W Delta Watts (Delta)
VA Delta Voltamperes (Delta)
VAR Delta Voltamperes Reactive (Delta)
VAR X WYE Voltamperes Reactive (WYE, X-Connected)
VAR X Delta Voltamperes Reactive (Delta, X-Connected)
Note: Metrics availability are RD-30 model dependent.
