Radiant R2K 55 - Page 13

13
R2K 55 - RAD - ING - Inst.Manual - 2002.1_CSA
1. INSTALLATION
INSTALLER

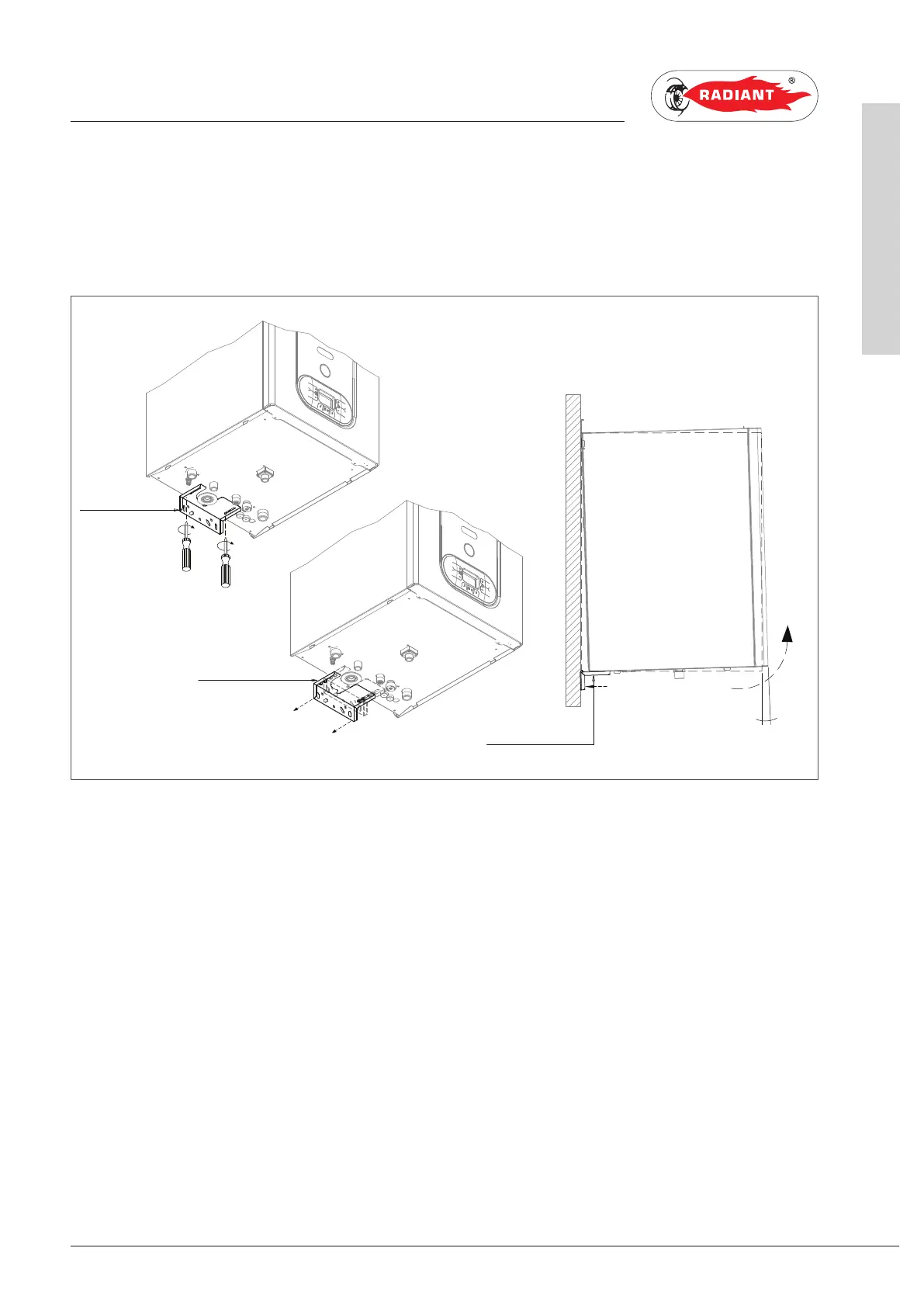

4. To make it easier the outlet of the condensate, the boiler, once it is hung onto the wall, must have the
right slope. Please use the lower wall bracket (fig.6);
5. Unscrew the lower bracket screws from the bottom of the boiler. Slide the lower bracket (fig. 7) in
order to separate the boiler from the wall from 1-1.5° (fig. 8).
6. Perform the connections.
1-1.5°
LOWER WALL
BRACKET
LOWER WALL
BRACKET
LOWER WALL
BRACKET
fig. 6
fig. 7 fig. 8
