Radiant R2K 55 - Power Supply

22
R2K 55 - RAD - ING - Inst.Manual - 2002.1_CSA
1. INSTALLATION
INSTALLER
1.1.17. POWER SUPPLY
To power the boiler connect the electrical cables
to the terminal inside the control panel as follows:
DANGER
Cut off the voltage from the main switch.
› remove the boiler's front casing (refer to 2.2.13
ACCESSING THE BOILER).
› loosen the two screws and remove the plate “A”
(see fig. 16).
› after removing the plate, connect the electrical
cables to terminal “B” (see fig. 16):
· the yellow/green cable to the terminal marked
with grounding symbol “
”.
· the blue cable to the terminal marked with
“N”.
· the brown cable to the terminal marked with
“ L”.
After performing these operations, remount plate
“A” and the front casing.
Note: A 3-prong plug is provide with every unit and
the above wiring has been performed.
L
N
SeSe
A
TaTa
B
INSTALLATION

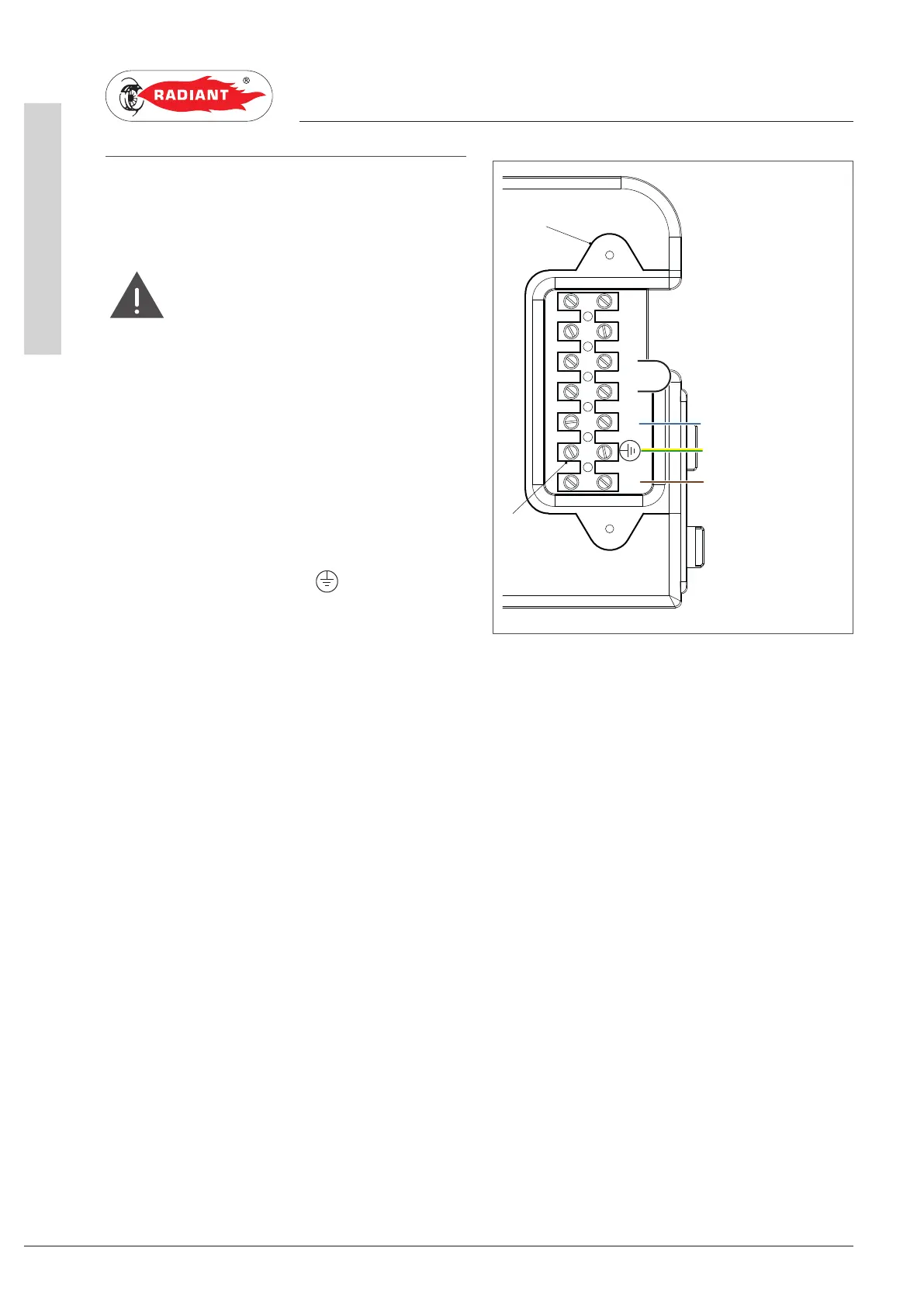

fig. 16
WHITE
YELLOW/GREEN
BLACK
