Radijator Inženjering d.o.o, 36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
53
9.6. Kontrol panel
Control panel consisting of:
The main switch, safety thermostat button, the display, the group command buttons, a group
of light-emitting diode indicator

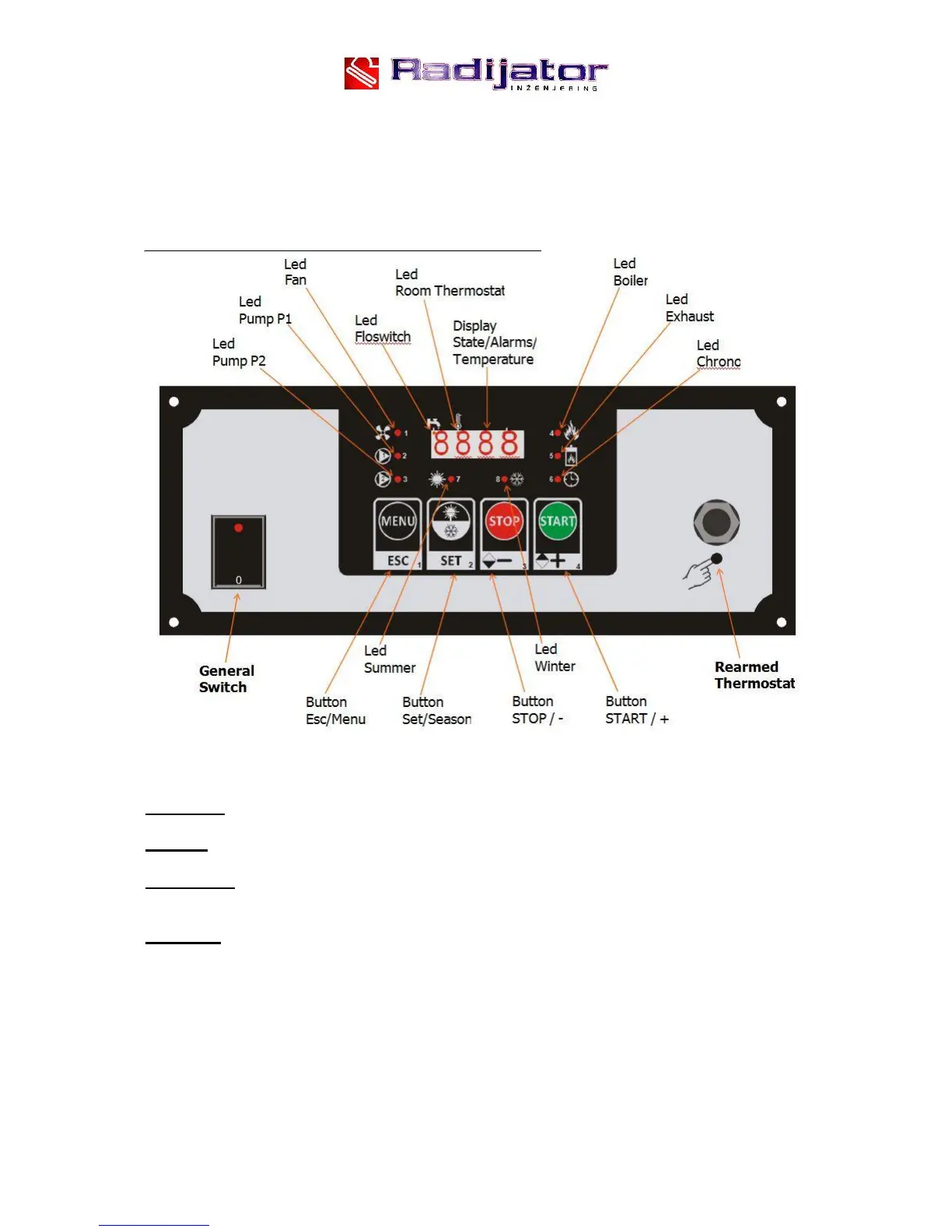

The following picture is to present of the control panel.
9.6.1.
B
U
TT
ON
S
START/+:Pushed for five seconds it switches ON the System. Pushed in Menu it
increments a parameters value.
STOP/-: Pushed for five seconds it switches OFF the System. Pushed in Menu it decrements
a parameters value.
SET/Season : Pushed for five seconds it selects the Season Summer/Winter.
Pushed in Menu it changes the visualization from parameters code to parameters value and
it permits to save a new setting.
ESC/Menu : This button permits to enter/exit the Menu. If you are changing a setting and
you push this button you will exit without saving the new value.
NOTE:
In OFF or Extinguishing State you can reset an Alarm visualization by pushing button +
or -, but if the alarm were still there you would visualize it again.
