54
9.6.2.
L
E
D
S
1. LedFan : ON when the
Combustion
Fan is ON;
2. LedPumpP1 : ON when the Pump P1 is ON.Blinking when the Pump P1 is switched
OFF by the Room Thermostat;
3. LedPumpP2 : ON when the
Valve/Pump
P2 is ON.Blinking when the Pump P2 is
switched OFF by the Room Thermostat;
4. LedBoiler: ON when the Water temperature is under the value TH-BOILER[A03] –
ModulationeDelta1[A05].Blinking when the Water temperature is over that value
OFF when the Water temperature is over TH-BOILER[A03].
5. LedExhaust : ON when Exhaust temperature is over TH-EXHAUST-ON[F18].
Blinking during the Pre-Extinguishing phase (Pre-Extinguishing TIME[t06])
6. LedChrono : ON when the
Chrono
Input contact is closed.
7. LedSummer : ON when the selected Season is Summer.
8. LedWinter : ON when the selected Season is Winter.
9. LedFloswitch : ON when the
Flowswitch
Input contact is closed.
10. LedRoomThermostat : ON when the Room
Thermostat
Input contact is closed.
9.6.3.
D
I
S
P
L
A
Y

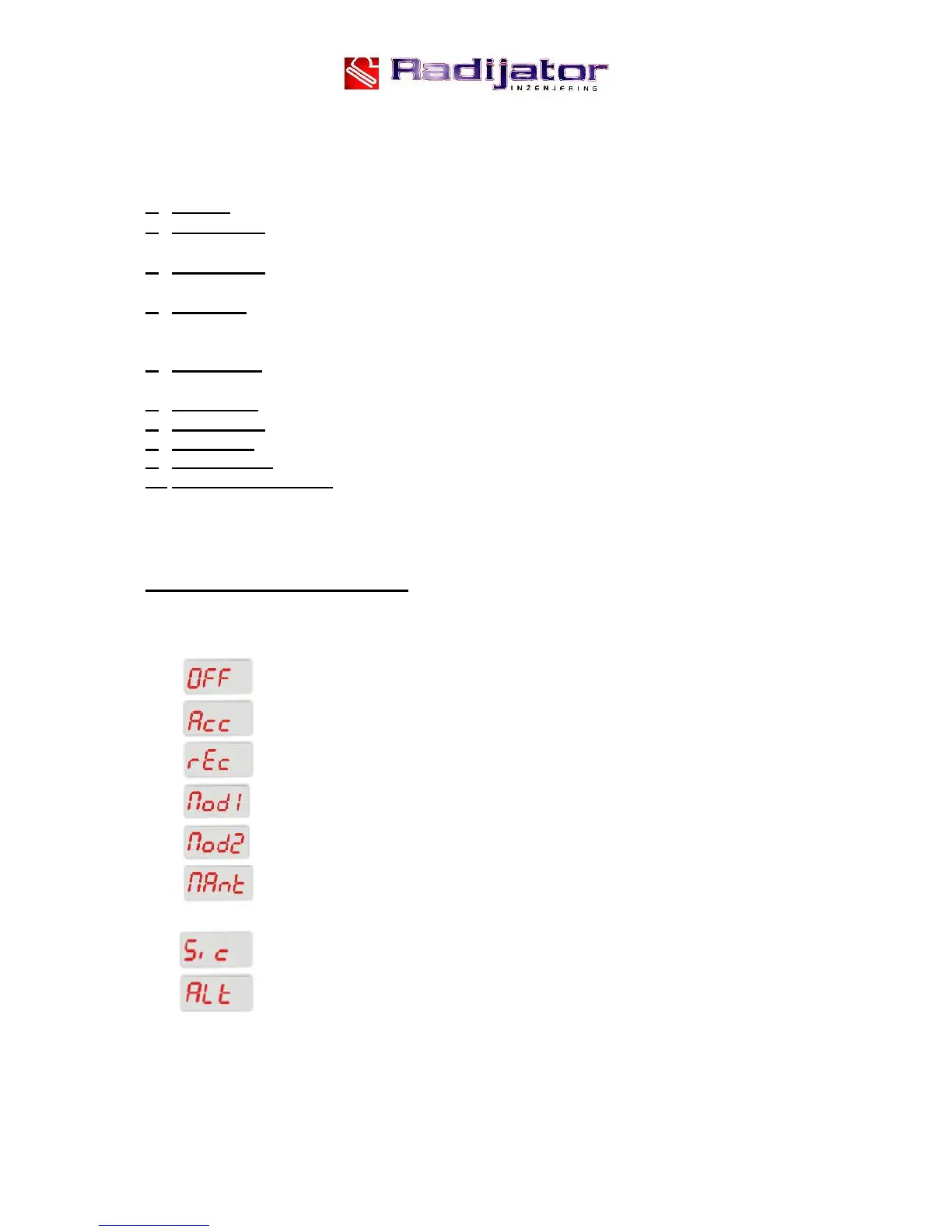

Display\State\Alarms\Temperature : The 4 digit Display visualizes water temperature, the
functioning State of the system and eventual alarms.
States’ Codes:
= Off
= Ignition
= Recover ignition
= Modulation 1
= Modulation 2
= Standby
= Safety
= System off with alarms
