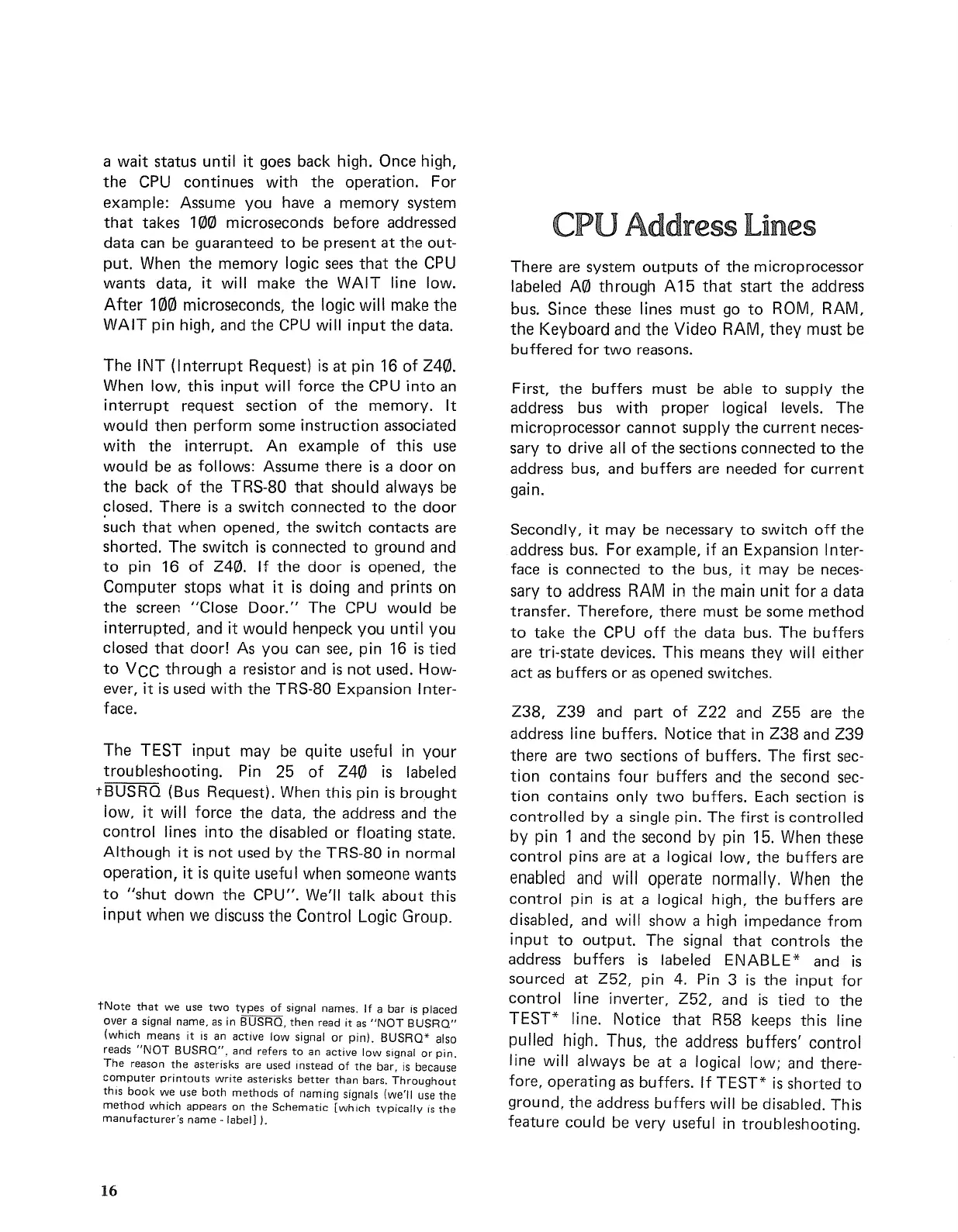

a wait
status
until it goes back high.
Once
high,
the
CPU
continues
with
the
operation.
For
example:
Assume
you
have a
memory
system
that
takes
100
microseconds
before
addressed
data
can be guaranteed
to
be
present
at
the
out-
put.
When
the
memory
logic sees
that
the
CPU
wants
data,
it will make
the
WAIT line low.
After
100
microseconds,
the
logic will make
the
WAIT pin high, and
the
CPU will
input
the
data.
The
INT
(Interrupt
Request)
is
at
pin
16
of
Z40.
When low, this
input
will force
the
CPU
into
an
interrupt
request
section
of
the
memory.
It
would
then
perform
some
instruction
associated
with
the
interrupt.
An
example
of
this
use
would
be as follows: Assume
there
is
a
door
on
the
back
of
the
TRS-80
that
should always be
closed.
There
is
a switch
connected
to
the
door
~uch
that
when
opened,
the
switch
contacts
are
shorted.
The
switch
is
connected
to
ground
and
to
pin
16
of
Z40. If
the
door
is
opened,
the
Computer
stops
what
it
is
doing
and
prints
on
the
screen "Close
Door."
The
CPU
would
be
interrupted,
and
it
would
henpeck
you
until
you
closed
that
door!
As
you
can see, pin
16
is
tied
to
VCC
through
a resistor and
is
not
used. How-
ever,
it
is
used with
the
TRS-80
Expansion Inter-
face.
The
TEST
input
may
be
quite
useful
in
your
troubleshooting.
Pin
25
of
Z40
is
labeled
tBUSRQ
(Bus Request). When this pin
is
brought
low, it will force
the
data,
the
address
and
the
control
lines
into
the
disabled
or
floating
state.
Although
it
is
not
used
by
the
TRS-80
in
normal
operation,
it
is
quite
useful
when
someone
wants
to
"shut
down
the
CPU". We'll
talk
about
this
input
when we discuss
the
Control
Logic Group.
tNote
that
we
use
two
types
of
signal names. If a
bar
is
placed
over a signal
name.
as in
SUSRQ.
then
read it as
"NOT
SUSRQ"
(which
means
it
IS
an active low signal
or
pin).
BUSRQ*
also
reads
"NOT
SUSRQ",
and
refers
to
an active low signal
or
pin.
The
reason
the
asterisks are used Instead
of
the
bar,
is
because
computer
printouts
write
asterisks
better
than
bars.
Throughout
thiS
book
we use
both
methods
of
naming
signals (we'll use
the
method
which
appears
on
the
Schematic
[which
typically
is
the
manufacturer's
nameĀ·
label] ).
16
CPU
Address Lines
There
are system
outputs
of
the
microprocessor
labeled
Af/J
through
A
15
that
start
the
address
bus. Since
these
lines
must
go
to
ROM, RAM,
the
Keyboard
and
the
Video RAM,
they
must
be
buffered
for
two
reasons.
First,
the
buffers
must
be able
to
supply
the
address bus
with
proper
logical levels.
The
microprocessor
cannot
supply
the
current
neces-
sary
to
drive all
of
the
sections
connected
to
the
address bus,
and
buffers
are
needed
for
current
gain.
Secondly,
it
may
be necessary
to
switch
off
the
address bus.
For
example,
if an Expansion Inter-
face
is
connected
to
the
bus, it
may
be neces-
sary
to
address
RAM
in
the
main
unit
for
a
data
transfer.
Therefore,
there
must
be
some
method
to
take
the
CPU
off
the
data
bus.
The
buffers
are tri-state devices. This
means
they
will
either
act
as
buffers
or
as
opened
switches.
Z38,
Z39
and
part
of
Z22
and
Z55
are
the
address line buffers. Notice
that
in
Z38
and
Z39
there
are
two
sections
of
buffers.
The
first sec-
tion
contains
four
buffers
and
the
second
sec-
tion
contains
only
two
buffers. Each section
is
controlled
by
a single pin.
The
first
is
controlled
by
pin 1
and
the
second
by
pin 15. When
these
control
pins are
at
a logical low,
the
buffers
are
enabled and will
operate
normally. When
the
control
pin
is
at
a logical high,
the
buffers are
disabled,
and
will
show
a high
impedance
from
input
to
output.
The
signal
that
controls
the
address buffers
is
labeled ENABLE*
and
is
sourced
at
Z52,
pin 4. Pin 3
is
the
input
for
control
line inverter,
Z52,
and
is
tied
to
the
TEST* line. Notice
that
R58 keeps this line
pulled high. Thus,
the
address
buffers'
control
line will always be
at
a logical low;
and
there-
fore,
operating
as buffers. If TEST*
is
shorted
to
ground,
the
address buffers will be disabled. This
feature
could
be very useful
in
troubleshooting.
