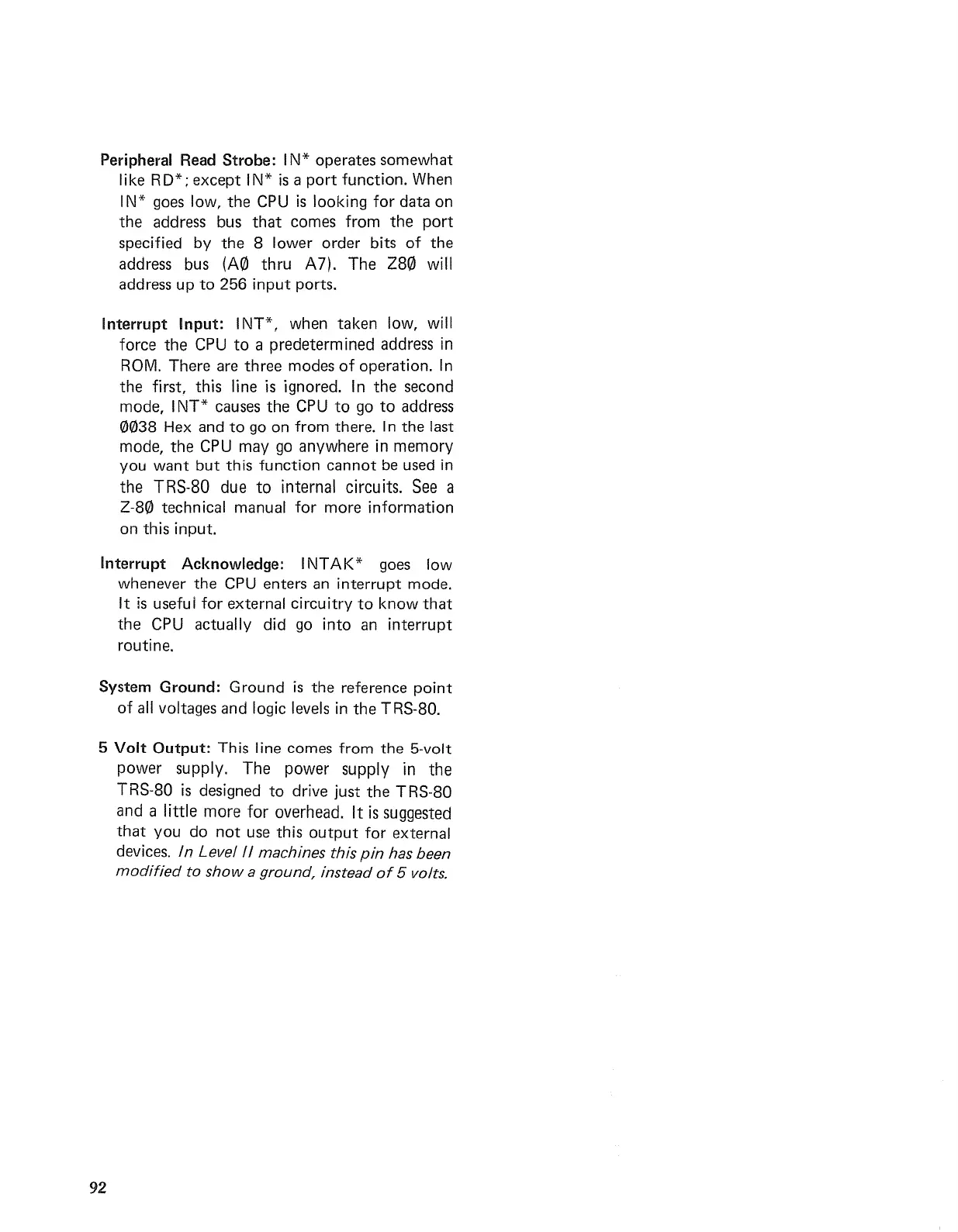

Peripheral Read
Strobe:
IN
*
operates
somewhat
like RD*;
except
IN*
is
a
port
function.
When
I
N*
goes low,
the
CPU
is
looking
for
data
on
the
address bus
that
comes
from
the
port
specified
by
the
8 lower
order
bits
of
the
address bus (A0
thru
A7l.
The
Z80
will
address
up
to
256
input
ports.
Interrupt
Input:
INT*, when
taken
low, will
force
the
CPU
to
a
predetermined
address
in
ROM.
There
are
three
modes
of
operation.
In
the
first, this line
is
ignored.
In
the
second
mode,
INT* causes
the
CPU
to
go
to
address
0038
Hex
and
to
go
on
from there. In
the
last
mode,
the
CPU
may
go
anywhere
in
memory
you
want
but
this
function
cannot
be used
in
the
TRS-80
due
to
internal circuits.
See
a
Z-80 technical manual
for
more
information
on
this
input.
Interrupt
Acknowledge: INTAK* goes low
whenever
the
CPU
enters
an
interrupt
mode.
It
is
useful
for
external
circuitry
to
know
that
the
CPU actually did go
into
an
interrupt
routine.
System
Ground:
Ground
is
the
reference
point
of
all voltages
and
logic levels
in
the
T RS-80.
5
Volt
Output:
This line
comes
from
the
5-volt
power
supply.
The
power
supply
in
the
TRS-80
is
designed
to
drive
just
the
TRS-80
and
a little
more
for
overhead. It
is
suggested
that
you
do
not
use
this
output
for
external
devices.
In
Level
II
machines this
pin
has been
modified
to
show
a
ground,
instead
of
5 volts.
92
