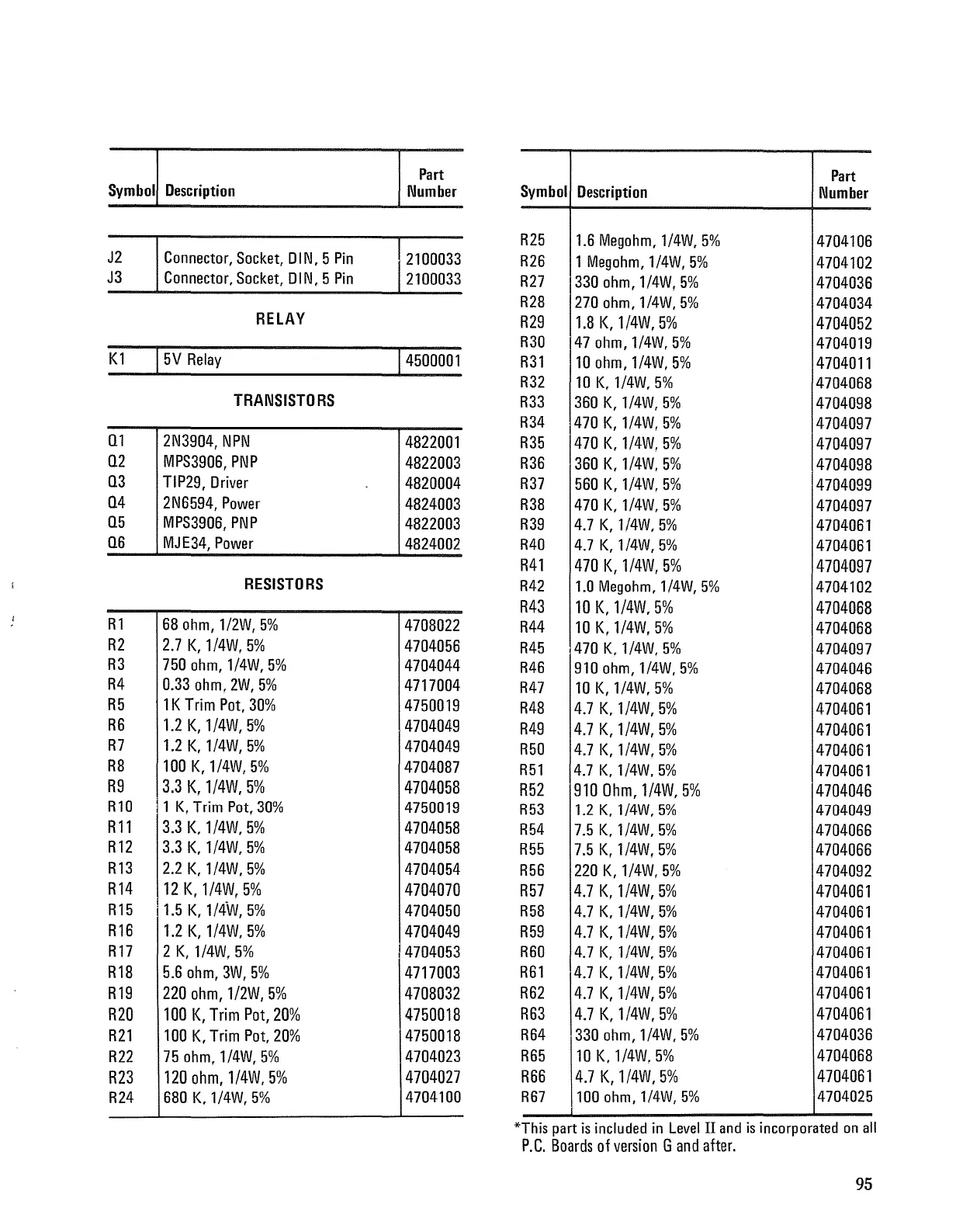

Radio Shack Quick Printer II Reference Handbook

01
2N3904, NPN
4822001
02
MPS3906, PNP
4822003
03
TIP29, Driver
4820004
04
2N6594, Power
4824003
05
MPS3906, PNP
4822003
06
MJE34, Power
4824002
J2
Connector, Socket, DIN, 5 Pin
2100033
J3
Connector, Socket, 0 IN, 5 Pin
2100033
RELAY
K1
15V Relay
14500001
TRANSISTO RS
RESISTORS
R1
68 ohm, 1/2W, 5%
4708022
R2
2.7 K, 1/4W, 5%
4704056
R3
750 ohm, 1/4W, 5%
4704044
R4
0.33 ohm, 2W, 5%
4717004
R5
1K Trim Pot, 30%
4750019
R6
1.2 K, 1/4W, 5%
4704049
R7
1.2 K, 1/4W, 5%
4704049
R8
100 K, 1/4W, 5%
4704087
R9
3.3 K, 1/4W, 5%
4704058
Rl0
1
K, Trim Pot, 30%
4750019
R 11 3.3 K, 1/4W, 5%
4704058
R12
3.3 K, 1/4W, 5%
4704058
R13
2.2 K, 1/4W, 5%
4704054
R14
12 K, 1/4W, 5%
4704070
R15
11.5 K, 1/4W, 5%
4704050
R16
1.2 K, 1/4W, 5%
4704049
R17
2 K, 1/4W, 5%
14704053
R18 5.6 ohm, 3W, 5%
4717003
R19 220 ohm, l/2W, 5%
4708032
R20 100 K, Trim Pot, 20%
4750018
R21 100 K, Trim Pot, 20% 4750018
R22 75 ohm, 1/4W, 5%
4704023
R23
120 ohm, 1/4W, 5%
4704027
R24
680 K, 1/4W, 5%
4704100
Symbol Description
Part
Number
Part
Symbol
Description
Number
R25
1.6 Megohm, 1/4W, 5%
4704106
R26
1 Megohm, 1/4W, 5%
4704102
R27
330 ohm, 1/4W, 5%
4704036
R28
270 ohm, 1/4W, 5%
4704034
R29
1.8 K, 1/4W, 5%
4704052
R30
47 ohm, 1/4W, 5%
4704019
R31
10 ohm, 1/4W, 5%
4704011
R32
10 K, 1/4W, 5%
4704068
R33
360 K, 1/4W, 5%
4704098
R34
470 K, 1/4W, 5%
4704097
R35
470 K, 1/4W, 5%
4704097
R36
360 K, 1/4W, 5%
4704098
R37
560 K, 1/4W, 5%
4704099
R38
470 K, 1/4W, 5%
4704097
R39
4.7 K, 1/4W, 5%
4704061
R40
4.7 K, 1/4W, 5%
4704061
R41
470 K, 1/4W, 5%
4704097
R42
1.0 Megohm, 1/4W, 5%
4704102
R43
10 K, 1/4W, 5%
4704068
R44
10 K, 1/4W, 5%
4704068
R45
470 K, 1/4W, 5%
4704097
R46
910 ohm, 1/4W, 5%
4704046
R47
10 K, 1/4W, 5%
4704068
R48
4.7 K, 1/4W, 5%
4704061
R49
4.7 K, 1/4W, 5%
4704061
R50
4.7 K, 1/4W, 5%
4704061
R51
4.7 K, 1/4W, 5%
4704061
R52
910 Ohm, 1/4W, 5%
4704046
R53
1.2 K, 1/4W, 5%
4704049
R54
7.5 K, 1/4W, 5%
4704066
R55
7.5 K, 1/4W, 5%
4704066
R56
220 K, 1/4W, 5%
4704092
R57 4.7 K, 1/4W, 5%
4704061
R58
4.7 K, 1/4W, 5%
4704061
R59
4.7 K, 1/4W, 5%
4704061
R60
4.7 K, 1/4W, 5%
4704061
R61
4.7 K, 1/4W, 5% 4704061
R62 4.7 K, 1/4W, 5% 4704061
R63
4.7 K, 1/4W, 5%
4704061
R64
330 ohm, 1/4W, 5%
4704036
R65 10 K, 1/4W, 5% 4704068
R66 4.7 K, 1/4W, 5%
4704061
R67 100 ohm, 1/4W, 5%
4704025
*This part is included in Level II and is incorporated on all
P. C. Boards of version G and after.
95
