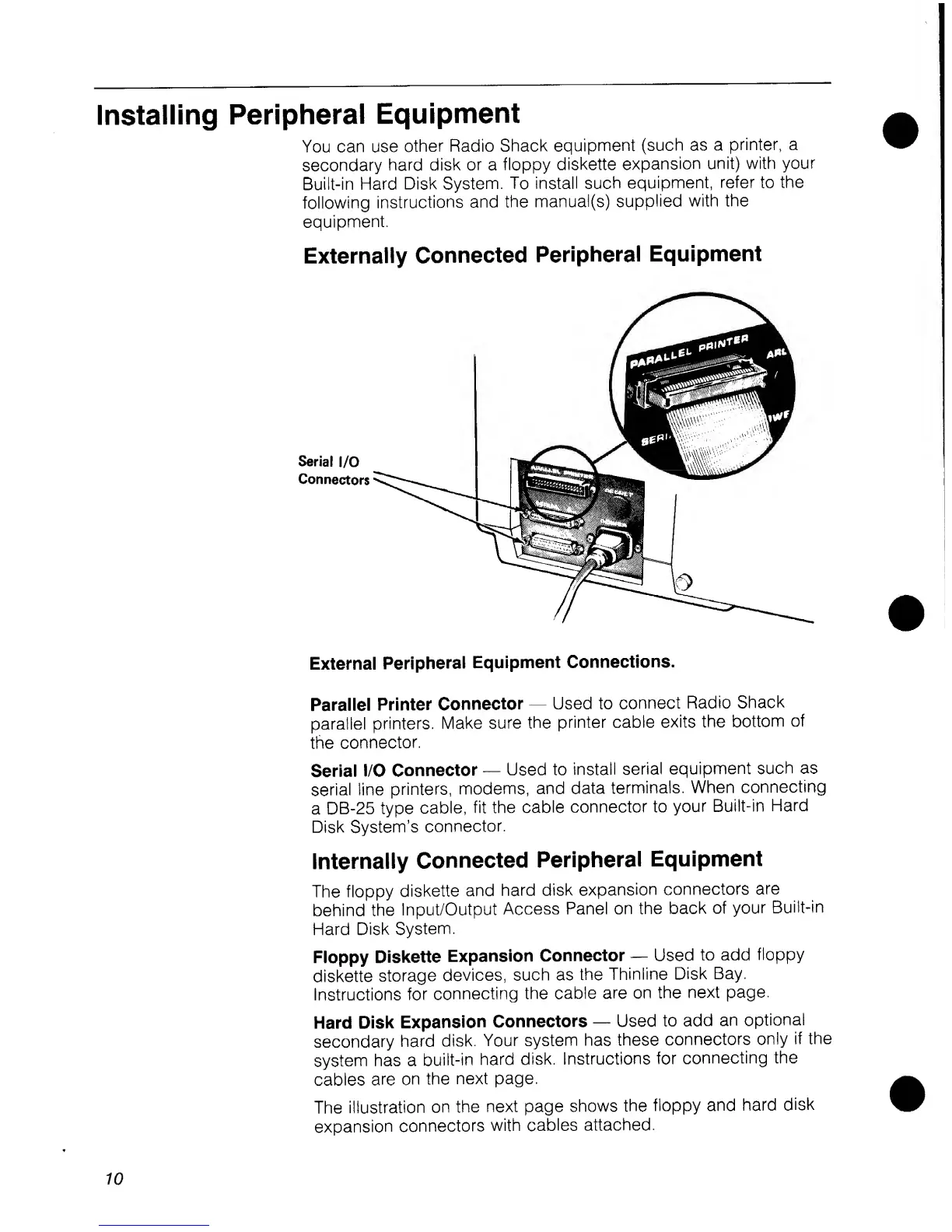

Installing
Peripheral
Equipment
You
can use
other Radio
Shack
equipment
(such
as
a
printer, a
secondary
hard
disk
or
a
floppy
diskette
expansion
unit) with
your
Built-in
Hard
Disk System.
To
install
such
equipment,
refer
to
the
following
instructions
and
the
manual(s)
supplied
with the
equipment.
Externally
Connected
Peripheral
Equipment
Serial
I/O
Connectors
External
Peripheral
Equipment
Connections.
Parallel
Printer
Connector
—
Used to
connect
Radio
Shack
parallel
printers.
Make
sure
the
printer cable
exits
the
bottom
of
the
connector.
Serial
I/O
Connector
—
Used
to
install
serial
equipment
such
as
serial
line
printers,
modems,
and
data
terminals.
When
connecting
a
DB-25
type
cable,
fit the
cable
connector
to
your
Built-in
Hard
Disk
System's
connector.
Internally
Connected
Peripheral
Equipment
The floppy
diskette
and
hard
disk
expansion
connectors
are
behind
the
Input/Output
Access
Panel on
the
back
of
your
Built-in
Hard
Disk
System.
Floppy
Diskette
Expansion
Connector
—
Used
to add
floppy
diskette
storage
devices,
such
as
the
Thinline
Disk
Bay.
Instructions
for
connecting the
cable
are on
the
next
page.
Hard
Disk
Expansion
Connectors
—
Used
to
add
an
optional
secondary
hard
disk.
Your
system has
these
connectors
only
if the
system
has a
built-in
hard
disk.
Instructions
for
connecting
the
cables
are on
the
next page.
The
illustration
on
the
next page
shows
the
floppy and
hard
disk
expansion
connectors
with cables
attached.
10
