Radio Shack Telephone Interface II Assembly Instructions

Desk Assembly Instructions
T e Attach Modesty Panel to Center and Left Leg using
2.
7"
>
8 PLCS
THRU COVER
DRAWER INTO LEGS | (15)
4
(4) 10-32 x Y2 Pan Head Screws with flat and lock
washers.
Remove Drawer from Cover Drawer. Attach Cover
Drawer to Right and Center Legs using (8) 10-32 x
Pan Head Screws with flat and lock washers. Cover
Drawer can be mounted either at top of legs or at
bottom. At bottom position the TRS-80 Model II
8-inch Disk expansion system can be placed on
top of Cover Drawer.
Attach Legs, Modesty and Cover Drawer assembly
to Desk Top. Use (6) #14 x 2-3/4 long wood screws
with flat and lock washers. (NOTE: Assemble Desk
Top to Leg Structure so that holes in top are ori-
ented as shown in illustration.
Install Leveling Glides in Legs.
Install Drawer in Cover Drawer.
6 PLACES
THRU LEGS
INTO TOP
. &
+
\f
(6)
(7)

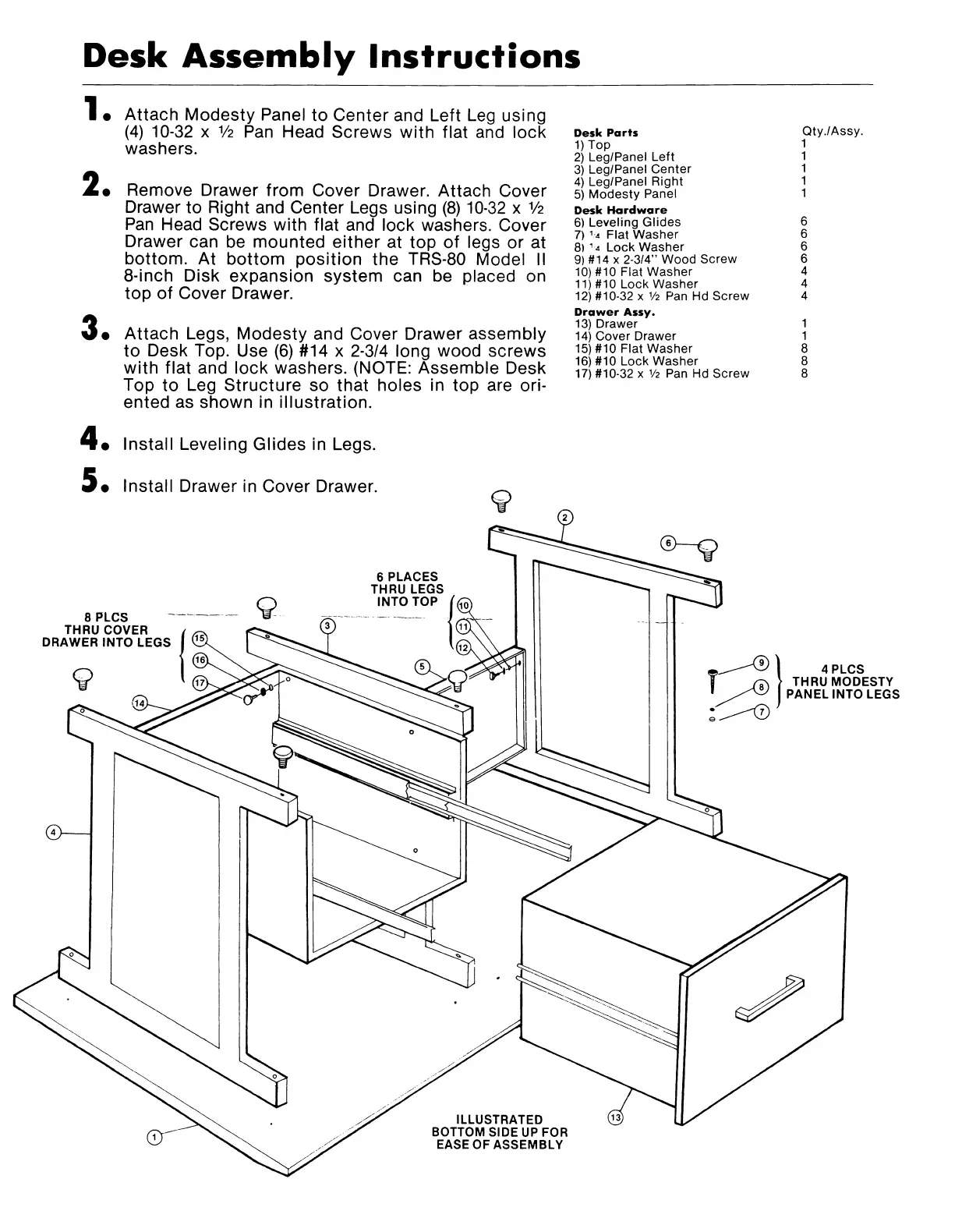

ZZ ILLUSTRATED
2g BOTTOM SIDE UP FOR
EASE OF ASSEMBLY
Desk Parts
1) Top
2) Leg/Panel Left
3) Leg/Panel Center
4) Leg/Panel Right
5) Modesty Panel
Desk Hardware
6) Leveling Glides
7) ta Flat Washer
8) 14 Lock Washer
9) #14 x 2-3/4” Wood Screw
10) #10 Flat Washer
11) #10 Lock Washer
12) #10-32 x Y% Pan Hd Screw
Drawer Assy.
13) Drawer
14) Cover Drawer
15) #10 Flat Washer
16) #10 Lock Washer
17) #10-32 x % Pan Hd Screw
13
~
Qty./Assy.
hHAOMMH
AD
aaa
oo
owoa-—
4PLCS
THRU MODESTY
PANEL INTO LEGS
