27
Input or Output Cycles
∞
∞∞
∞
Inserted by Z80 CPU
Input or Output Cycles with Wait States.
∞
∞∞
∞
Inserted by Z80 CPU
†Coincident with IORQ* only on INPUT cycle

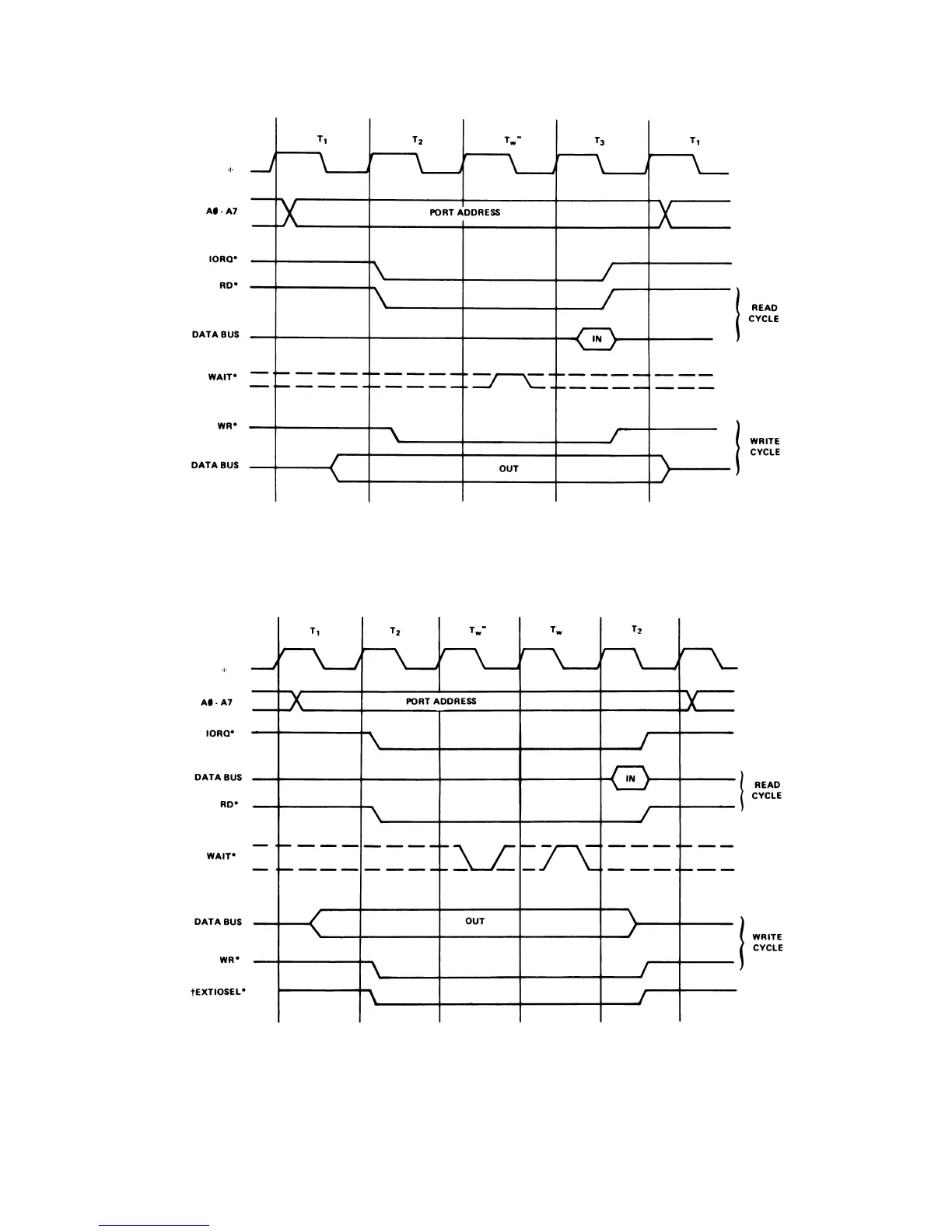

FIGURE 3-6. I/O BUS TIMING DIAGRAM
