Radio Thermostat CT50 Install Guide

PG 6

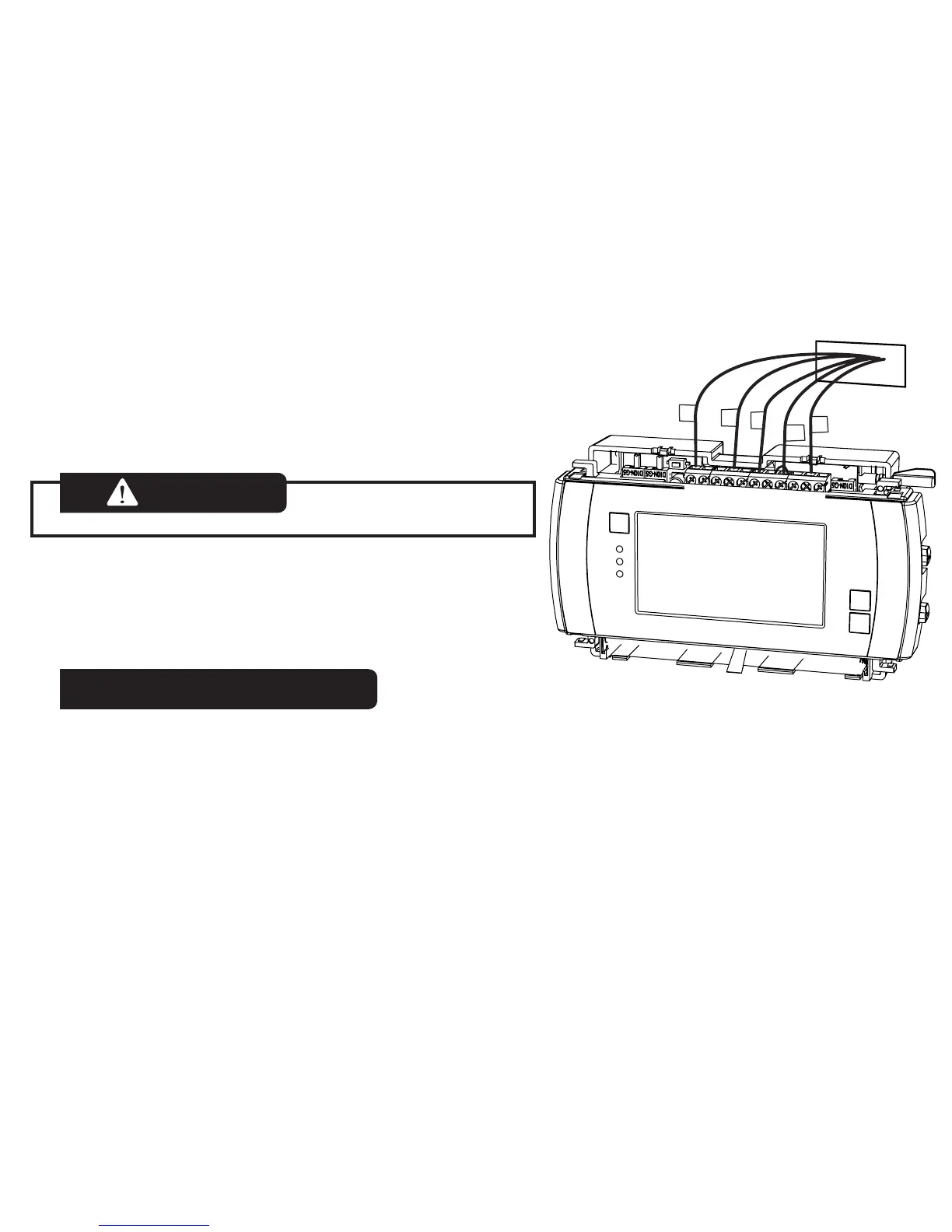

• “Fan out” wires as illustrated with CT50 below the wall
opening. As in the example: fan out the wires so that the
C wire is above the C terminal, the W above the W. This
allows the CT50 to t snugly to the wall.
Caution
Do not allow wires to touch each other or parts on thermostat.
• Wires will position behind the CT50 and up over the
terminal area.
• Do not bunch wires behind the CT50. Feed any slack
back into the wall opening.
Connect Your Wires
• Connect labeled wires only to a terminal with the same letter label.
• Insert the wire in the terminal well and tighten the screw securely.
NOTE: If you wish you can mount the CT50 to the wall rst, and then connect the wires.
• The CT50 can be externally powered with a power source rated from 18V to 24V, AC or DC, at
100ma or greater. If used, connect to the C and RH terminals (no polarity).
C
B
O
W
W
2
Y
Y2
R
H
R
C
G
A
RH
Y
G
C
W
from HEAT/COOL system
